5

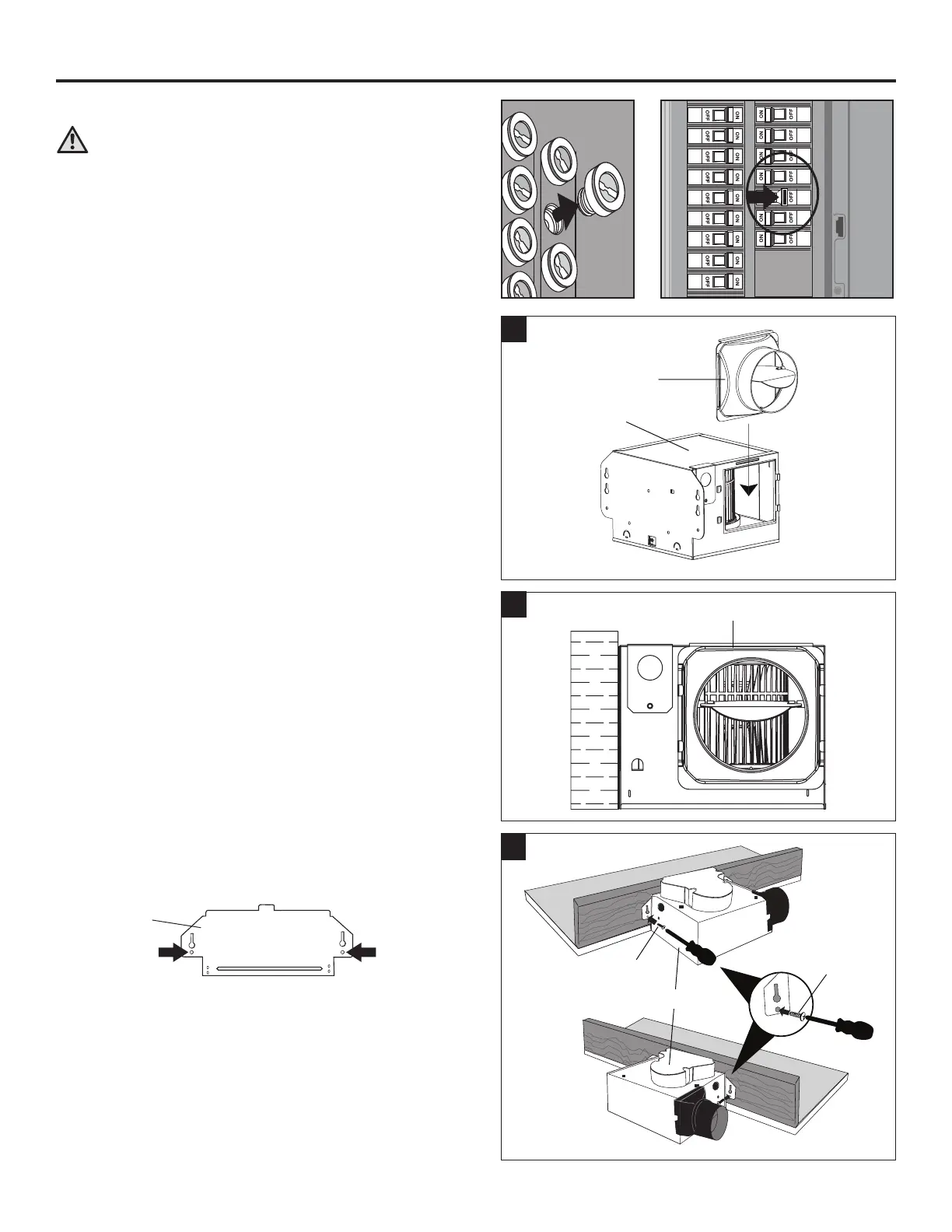

NEW CONSTRUCTION INSTALLATION INSTRUCTIONS
BEFORE INSTALLATION
WARNING: RISK OF ELECTRIC SHOCK! Ensure the
electricity to the wires you are working on is shut off.
Either remove the fuse or turn off the circuit breaker
before removing the existing bath fan or installing the
new one.
1. Attach the duct connector (C) to the fan housing (A).
NOTE: Remove the protective tape on the duct connector
(C) ap.
A
C
1
2. Place the fan housing (A) next to a ceiling joist. The fan
housing (A) should be level and perpendicular to the joist.
Allow for thickness of ceiling board used in your application.
Position the fan housing (A) so the bottom edge of the fan
housing (A) is ush with the ceiling board. Do not ush
mount the fan housing (A) to the bottom of the joist.
A
2
3. Mount the fan housing (A) to the joist by inserting wood
screws (AA) into the holes indicated on the metal tabs of the
fan housing (A). Tighten the wood screws (AA) until the fan
housing (A) is rmly secured to the joist.
A
3
AAAA
A
To Next Page
