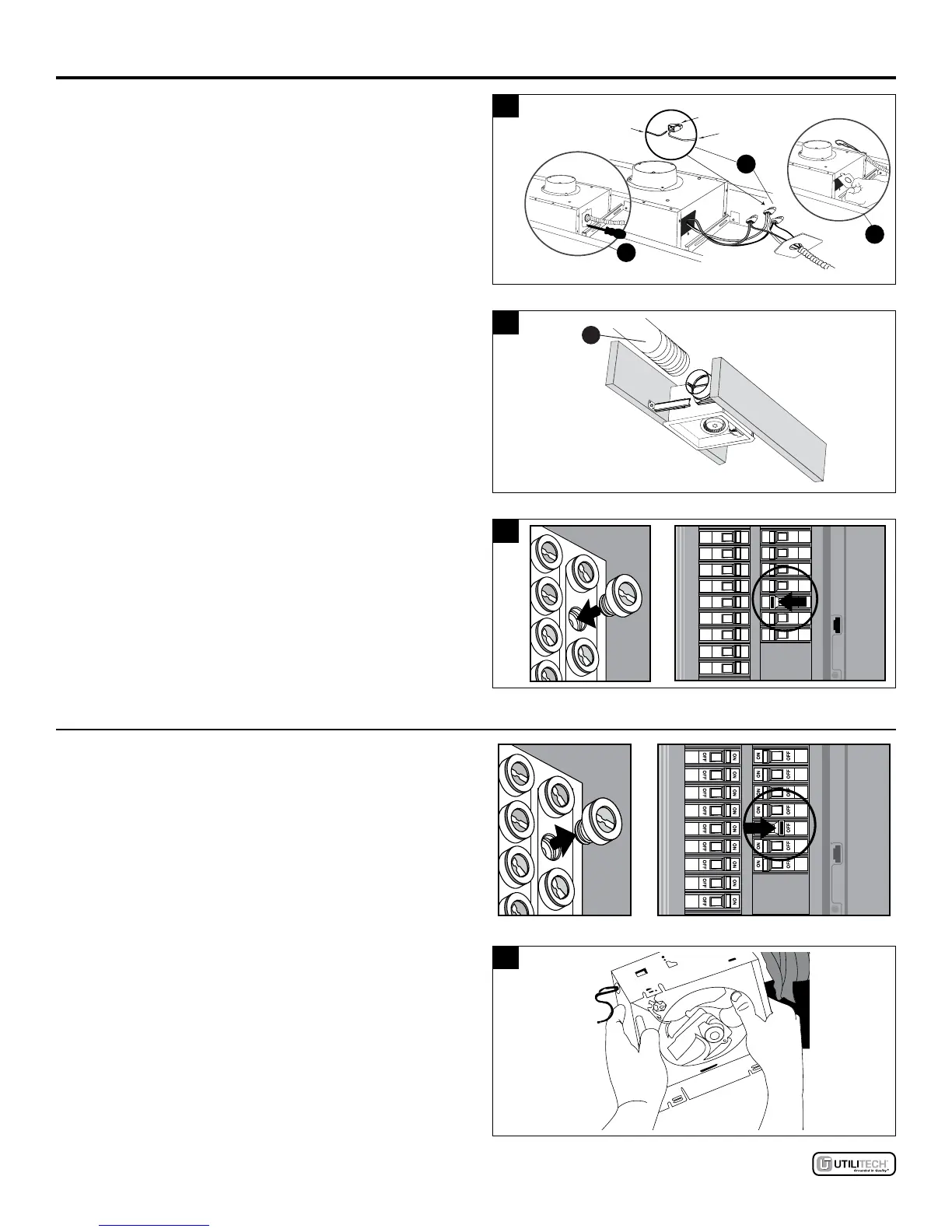

ASSEMBLY INSTRUCTIONS – NEW CONSTRUCTION ONLY
5. Remove fan junction box cover (5.1). Using quick
connector, connect house wires to fan wires (5.2) as
shown in wiring diagram on page 5. Wire connections
area as follows: black to live switch wire, white to neutral,
green to ground. Reattach fan junction box cover (5.3).
5
Quick
connector
House
wires
Product
wires
5.1
5.2
5.3
6. Connect a 4 in. circular duct (6.1) (not supplied) and vent
to the outside. Secure it with duct tape (not supplied) or
clamp (not supplied) to make connection secure and air
tight.
6
6.1
7. Turn on power source. Check fan for any abnormal
sound or vibration.
7
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
EXISTING CONSTRUCTION – ATTACHING TO JOIST
NOTE: ATTACHING DIRECTLY TO THE JOIST(S) FROM
BELOW WILL BE THE BEST INSTALLATION.
BEFORE INSTALLATION
Turn off power source. Review all safety precautions.
1. Remove existing fan.
1
