8
Mounting Witty
Pi 3 on Raspbe
rry Pi
You can simply plug Witty Pi 3 on your Raspberry Pi
’
s
2x20 pin header, and it can work just like
that. However, if you wish, you can use the copper standoffs and screws in the package to tig
htl
y
mount Witty Pi 3 on your Raspberry Pi.

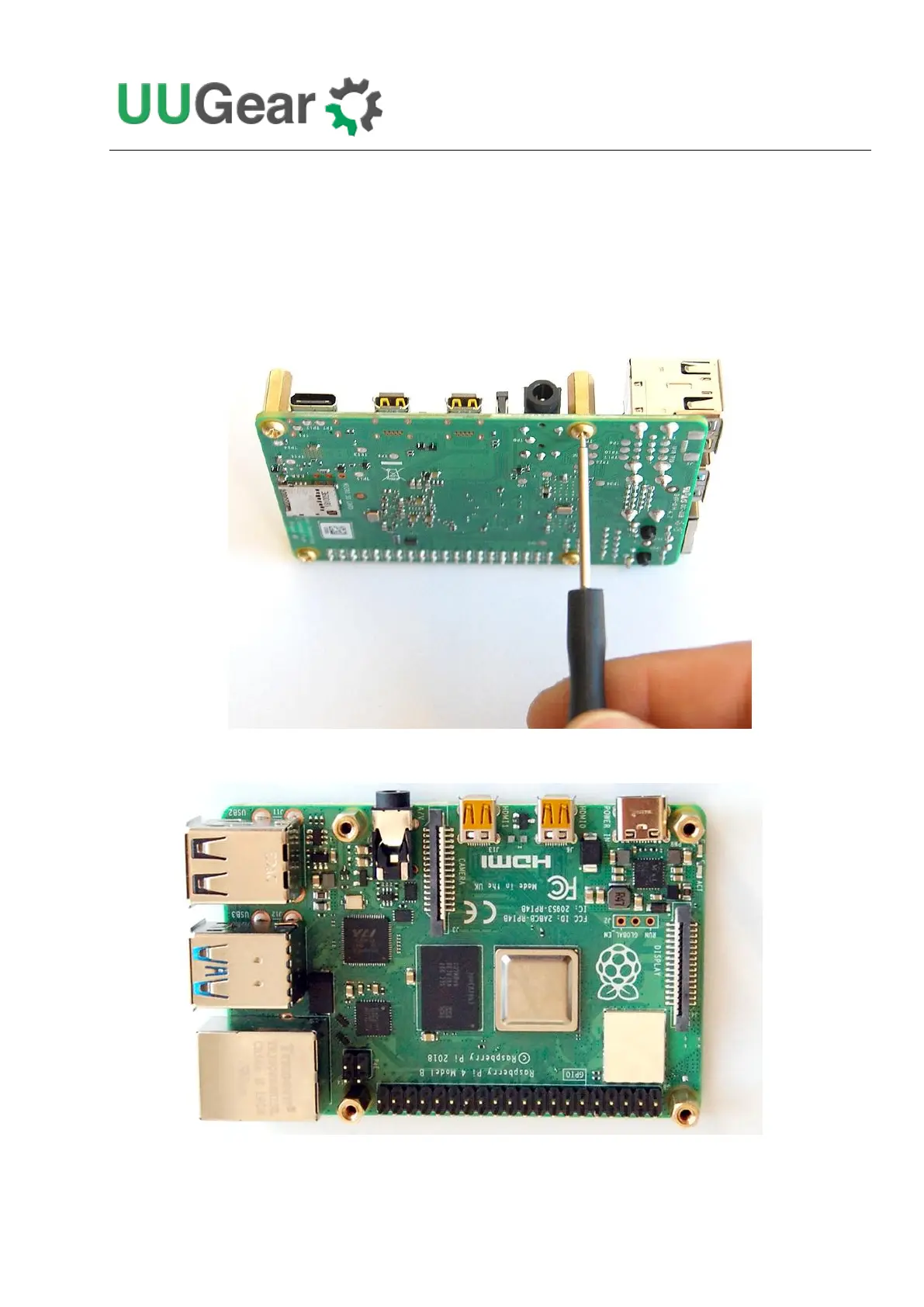

First you can mount the 3 copper standoffs on your Raspberry Pi, using the screws.
Your Raspberry Pi should look like this after mounting the 4 standoffs:
10
12
Table of Contents
Table of Contents
2
What Is Witty Pi
4
What Is in the Package
6
Witty Pi 3 Specifications
7
Software Installation
8
Software Update/Uninstallation
10
Mounting Witty Pi 3 on Raspberry Pi
11
Input Voltage
13
Software Usage
14
Write System Time to RTC
15
Write RTC Time to System
15
Synchronize Time
15
Schedule Next Shutdown
16
Schedule Next Startup
16
Choose Schedule Script
17
Set Low Voltage Threshold
18
Set Recovery Voltage Threshold
18
View/Change Other Settings
19
Reset Data
20
Exit
20
How Schedule Script Works
21
Make Schedule Script
23
Using Schedule Script Generator
25
Advanced Usage of Schedule Script
26
The Unpopulated 3-Pin Header (P2)
27
The Unpopulated 7-Pin Header (P3)
27
Frequently Asked Questions (FAQ)
30
What I2C Address Is Used by Witty Pi 3
30
What I 2 C Registers Are Provided by Witty Pi 3
31
What GPIO Pins Are Used by Witty Pi 3
34
Is Witty Pi 3 Compatible with "Other Hardware
35
Witty Pi 3 Does Not Boot
35
Revision History
38
