V-Tec DMR18S - External Power Supply Mode; Connection for Power-to-Unlock type; Connection for Power-off-to-Unlock type

+
+
-
-
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
Remove the Jumper
set to Normally Open on the
Unlock Relay mode (default)
JP_LK
1 2 3
Note: Cut off this line when
using external power supply
+12V
LK - (GND)
LK+(COM)
N.O.
EB+
EB -
Remove the Jumper
set to Normally Closed on the
Unlock Relay mode
+
+
-
-
JP_LK
1 2 3
Note: Cut off this line when
using external power supply
2. External Power Supply Mode
Whentheelectroniclockisover12Vdc,additionalpowersupplyforthelockisneeded.
• Thepowersupplyforthelockmustbelessthan48Vdc1.5A.
• TheJumpermustberemovedwhenusingexternalpowersupply.Thedefaultsettingis
Power-on-to-Unlocktype(
Normally open mode
),ifusePower-off-to-Unlocktype,
changetheUnlockRelaymodeto
Normally closed mode
.
• Ifdifferentunlockingtimeisneededtobecongured,changethe
Unlock Timing
on
doorstation.(Indebugstate,press[1#]-->[1]InstallerSetup-->[2]UnlockTiming)

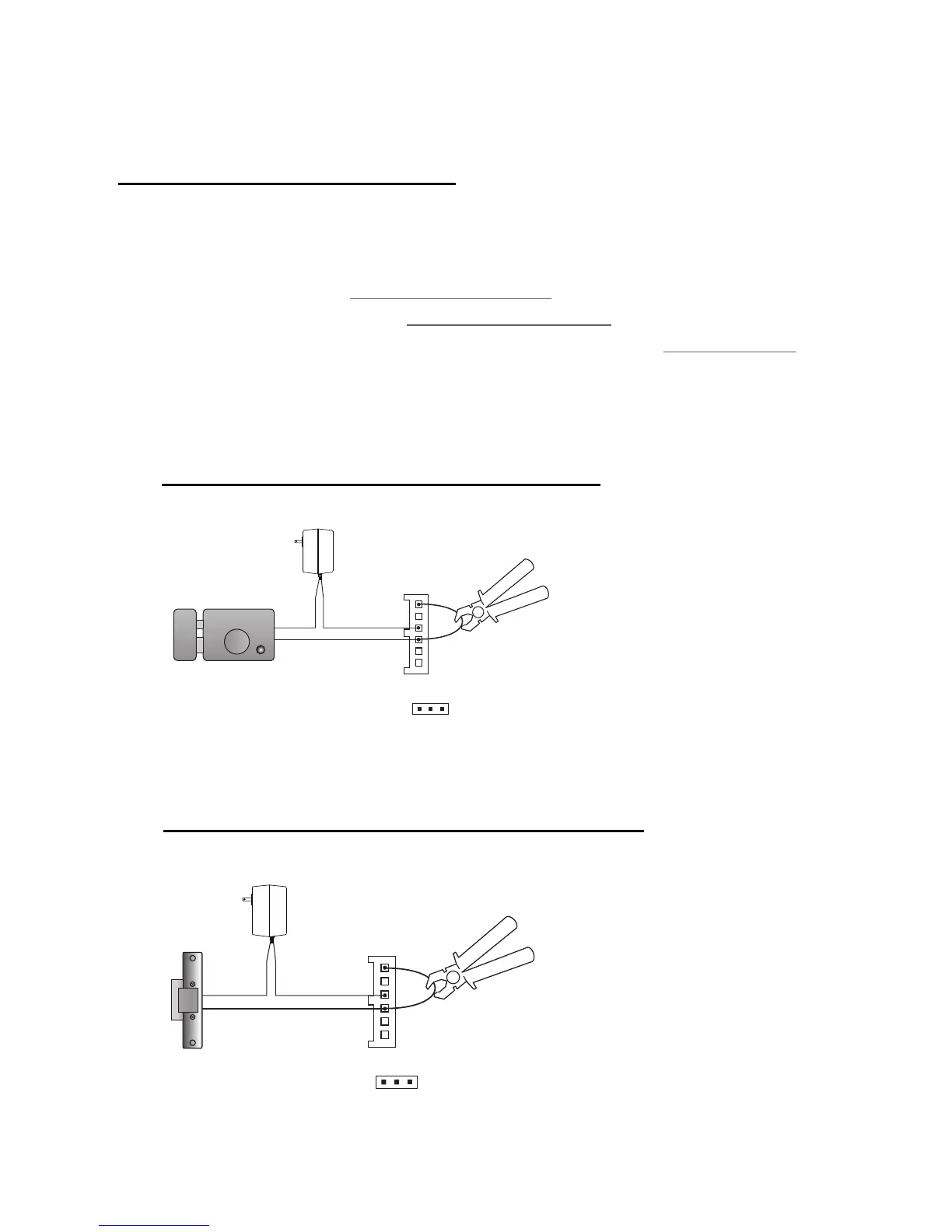

C. Connection for Power-to-Unlock type:
D. Connection for Power--off-to-Unlock type:
