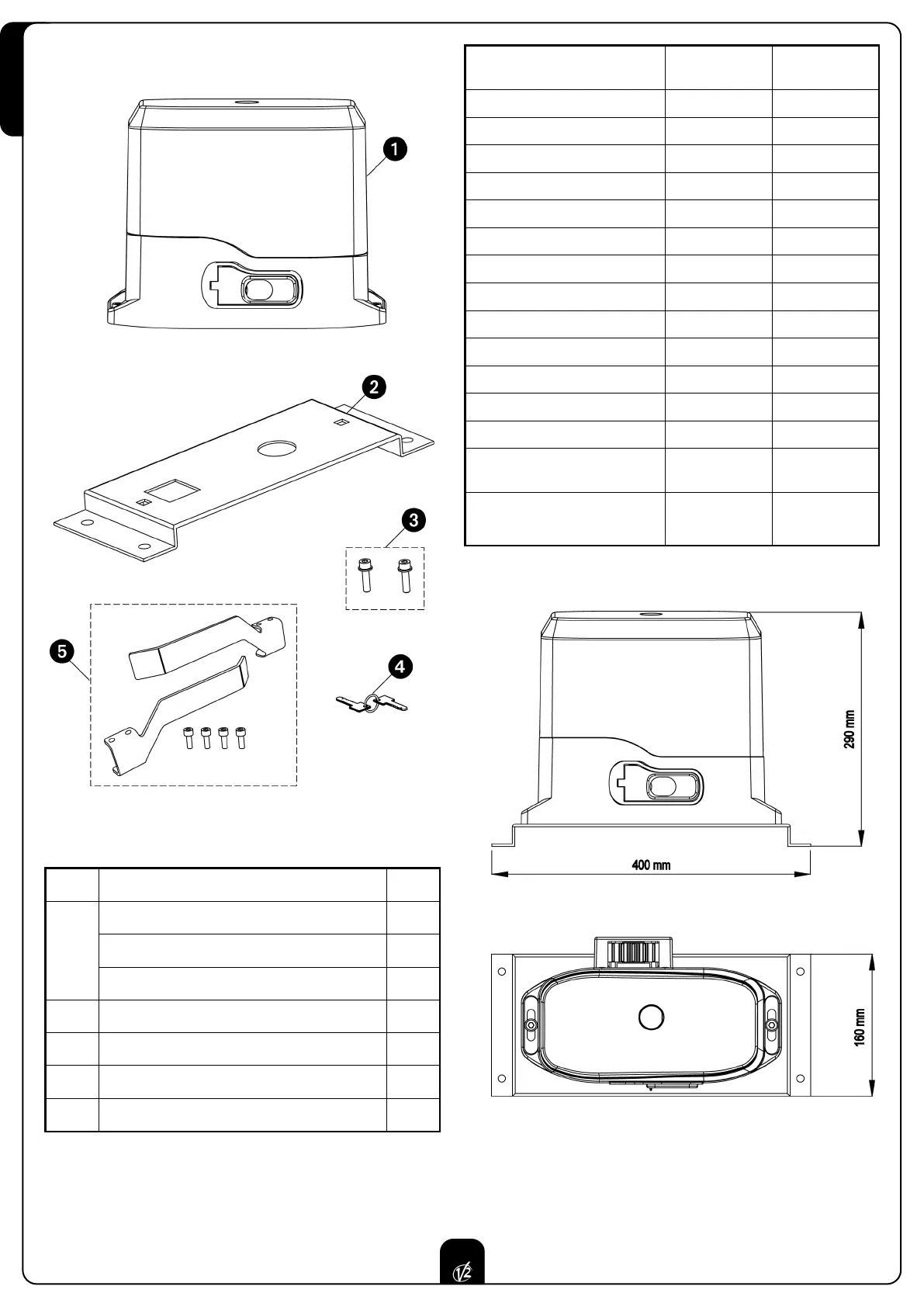

PARTS LIST
TECHNICAL
SPECIFICATIONS
ECO GOLD230V ECO GOLD120V
Gate maximum w
eight
600 Kg 600 Kg
P
ower supply
230V
AC / 50Hz
120V
AC / 60Hz
Maximum pow
er
500 W 500 W
Idling current 1.6 A 3.2 A
Full load current 2 A 4 A
Capacitor 16 µF 40 µF
Gate maximum speed 0.16 mt/sec 0.16 mt/sec
Maximum thrust 480 N 480 N
Duty cicle 30% 30%
Pinion M4 - Z12 M4 - Z12
Operation temperature -20°C ÷ +60°C -20°C ÷ +60°C
W
eight
10 Kg 10 Kg
Protection IP44 IP44
Maximum load on 24 VAC
attachments
3 W 3 W
Protection fuses
F1 = 5 A
F2 = 160 mA
F3 = 250 mA
F1 = 5 A
F2 = 160 mA
F3 = 250 mA
Ref Description Q.ty
1
•
Electro-mechanical actuator
1
• Capacitor 1
• Control unit 1
2 Metal fastening plate 1
3 Cage nuts + Bolts M8 X 30 + Washers 2
4 Motor overriding key 2
5 Mechanical limit switch 2
