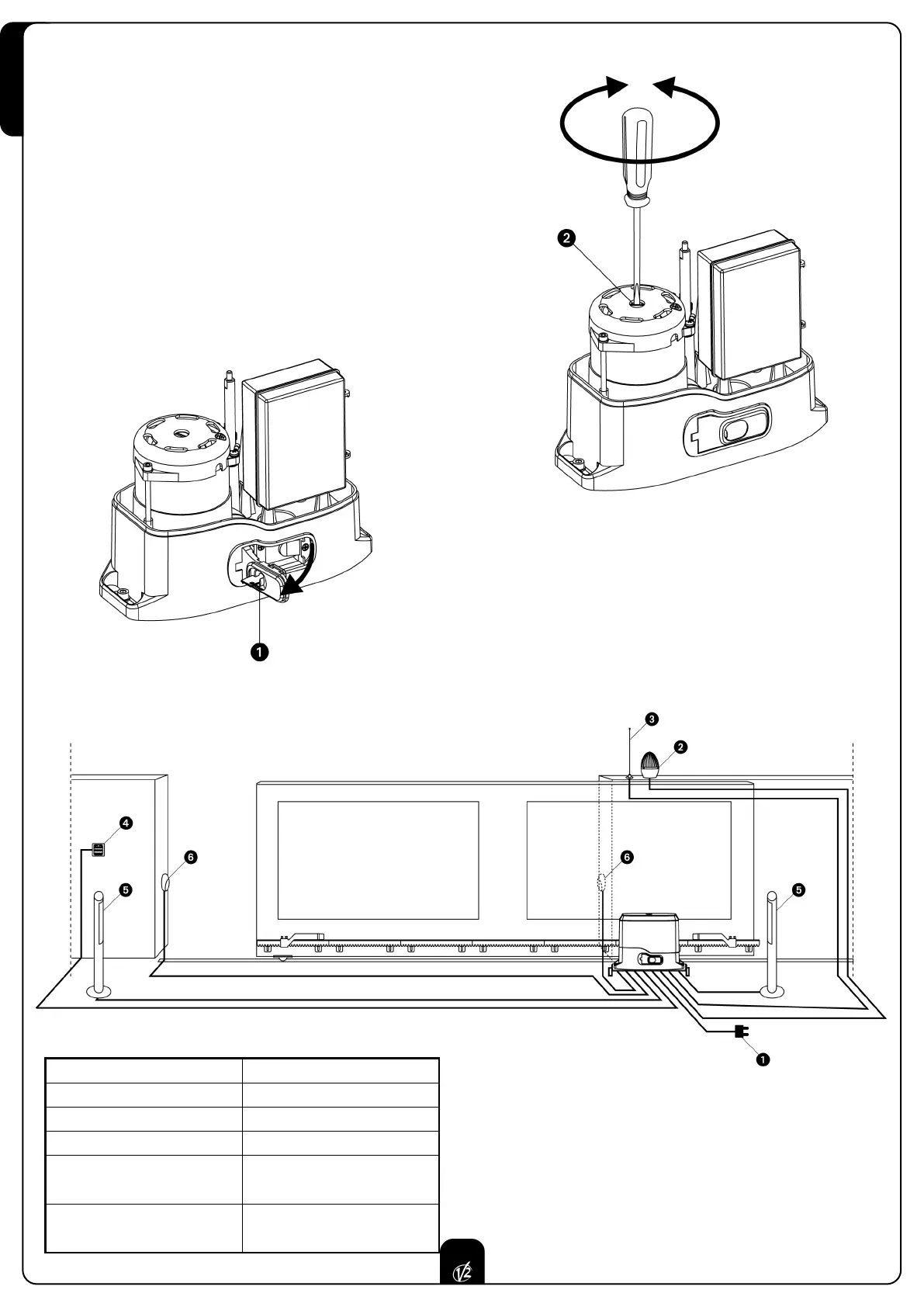

MOTOR OVERRIDING SYSTEM
In case of a black
out, the gate can be operated directly from
the motor. Insert the key supplied in the lock 1 on the front
side of the motor
, perform 1/4 of a turn and open the plastic
door completely.
To restore the automation, simply close the door, rotate the key
in closed position and slide the specially provided plastic cover
onto the lock.
m WARNING: In case the leaf overruns its final position and
impacts against the safety strok
e end (i.e. wrong regulation of
the limit switches),and a manual unclamp would be necessary,
before using the above procedure, you have to replace the leaf
setting away from the safety stroke end using the flat screw on
the main motor shaft 2 with a scre
wdriver.
m W
ARNING:
ALL THE CABLES USED FOR THE
INST
ALLATION MUST BE MARKED WITH T100
°C.
INSTALLATION LAYOUT
1 Power supply
cable 3 x 1,5 mm
2
2 Blink
er
cable 2 x 1,5 mm
2
3 Exter
nal Aerial
cable RG-58
4 Digital or key selector
cable 2 x 1 mm
2
5 Inter
nal Photocellules
cable 4 x 1 mm
2
(RX)
cable 2 x 1 mm
2
(TX)
6 External Photocellules
cable 4 x 1 mm
2
(RX)
cable 2 x 1 mm
2
(TX)
