ENGLISH
- 46 -
9 - INSTALLATION MENÙ (SEt)
This menu allows you to perform the movements of the gate
needed during installation.
The automatic learning procedure enables to save run limits based
on data collected by the encoder.
The manual handling procedure allows to control the gate in hold
to run mode in special cases such as during installation /
maintenance or a malfunction of the photocells or edges.
m ATTENTION: before proceeding, make sure to position
the mechanical stops and the limit sensors correctly.

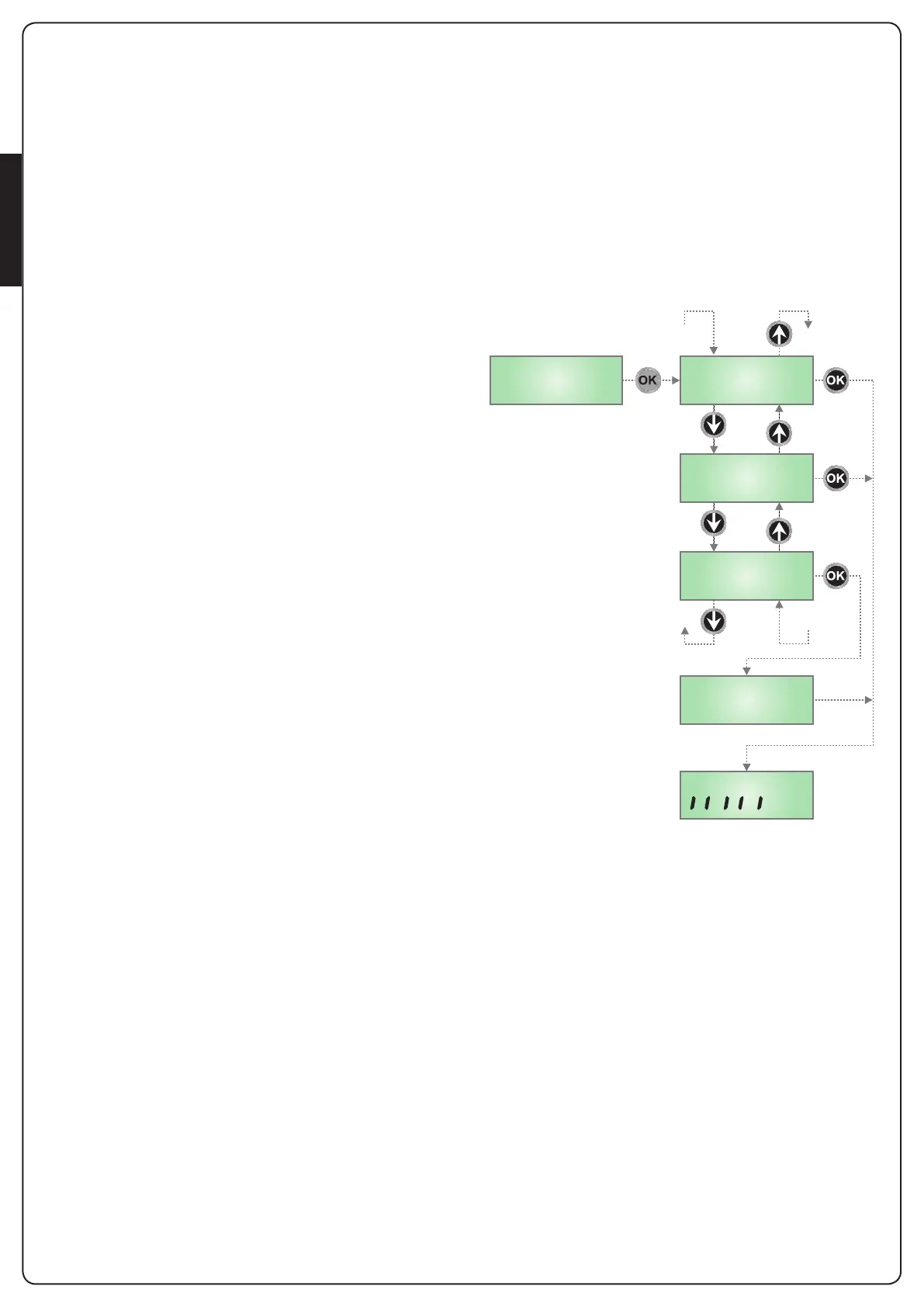

1. Press and hold the OK key until the display shows -SEt
2. Release the OK key: the display shows ESC (only press the OK
key if it is desired to exit this menu)
3. Use the keys h and i to select the menu Mov to activate
manual handling or APPr to start the automatic learning
procedure of the run limits
4. Press OK to start the selected procedure
9.1 - AUTOMATIC LEARNING OF THE RUN
LIMITS
m CAUTION: to perform the self-learning procedure it
is necessary to disable the ADI interface by means of the
menu i.Adi . If some safeties are controlled by means of the
ADI module, they will not be active during the self-learning
CAUTION: During self-learning, the power applied to the
motor is that set in the Po.AL parameter
5. The display shows the control panel and the automatic learning
procedure of the run limits starts.
5.1 If the gate is not at the closed limit, the motor will
activate to close at the slow speed until it reaches the
range limit.
5.2 Gate opening is activated until the opening limit switch is
reached.
5.3 Gate closing is activated until the closing limit switch is
reached.
6. If the obstacle sensor has been enabled, the display shows the
recommended value for the obstacle sensor. If no operations
are performed for 20 seconds, the control unit exits the
programming phase, without saving the value recommended.
7. The recommended value may be modified by pressing the h
and i keys, and pressing the OK key confirms the displayed
value and the display shows SEnS
8. Press and hold the i key until the display shows FinE, then
press the OK key, select the option Si and then press the
OK key to exit programming mode, storing the value for the
sensors.
m PLEASE NOTE: If the control unit is left to time out
from programming mode (1 minute), the obstacle sensor
return to the value that was set prior to performing self-
training (according to the default values, the sensor is
disabled). On the other hand, the limit switch positions are
always stored.
9.2 - MANUAL HANDLING
m WARNING: when this procedure is activated the
safeties are not active.
5. The display shows MAn
6. Press and hold the h key to open the gate or the i button to
close the gate
7. Release the button to stop the gate
8. To exit this menu, press OK
NOTE: If the motor is inactive for more than one minute
the procedure terminates automatically.
APPr
ESC
Mov
MAn
-SEt
