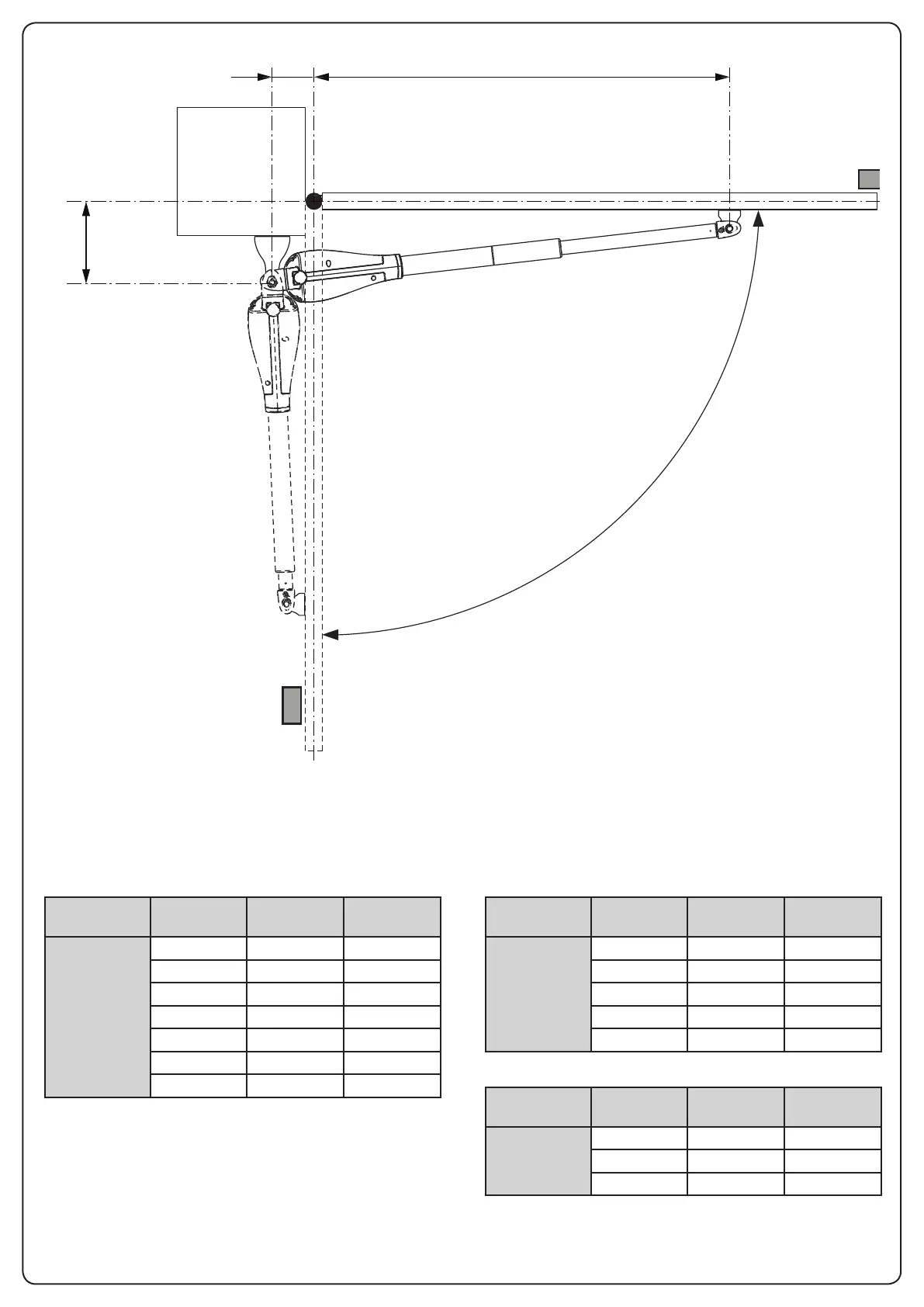

- 62 -
γ
B
C
F
g max
B [mm] C [mm]
F
[mm]
90°
130 130 1010
150 140 1000
170 150 990
190 150 980
200 150 980
210 140 980
250 120 1010
g max
B [mm] C [mm]
F
[mm]
100°
130 170 970
150 180 960
170 180 960
190 170 970
210 140 990
g max
B [mm] C [mm]
F
[mm]
110°
130 190 950
150 180 960
160 170 970
CALYPSO 400
