INSTALLATION SCHEMES

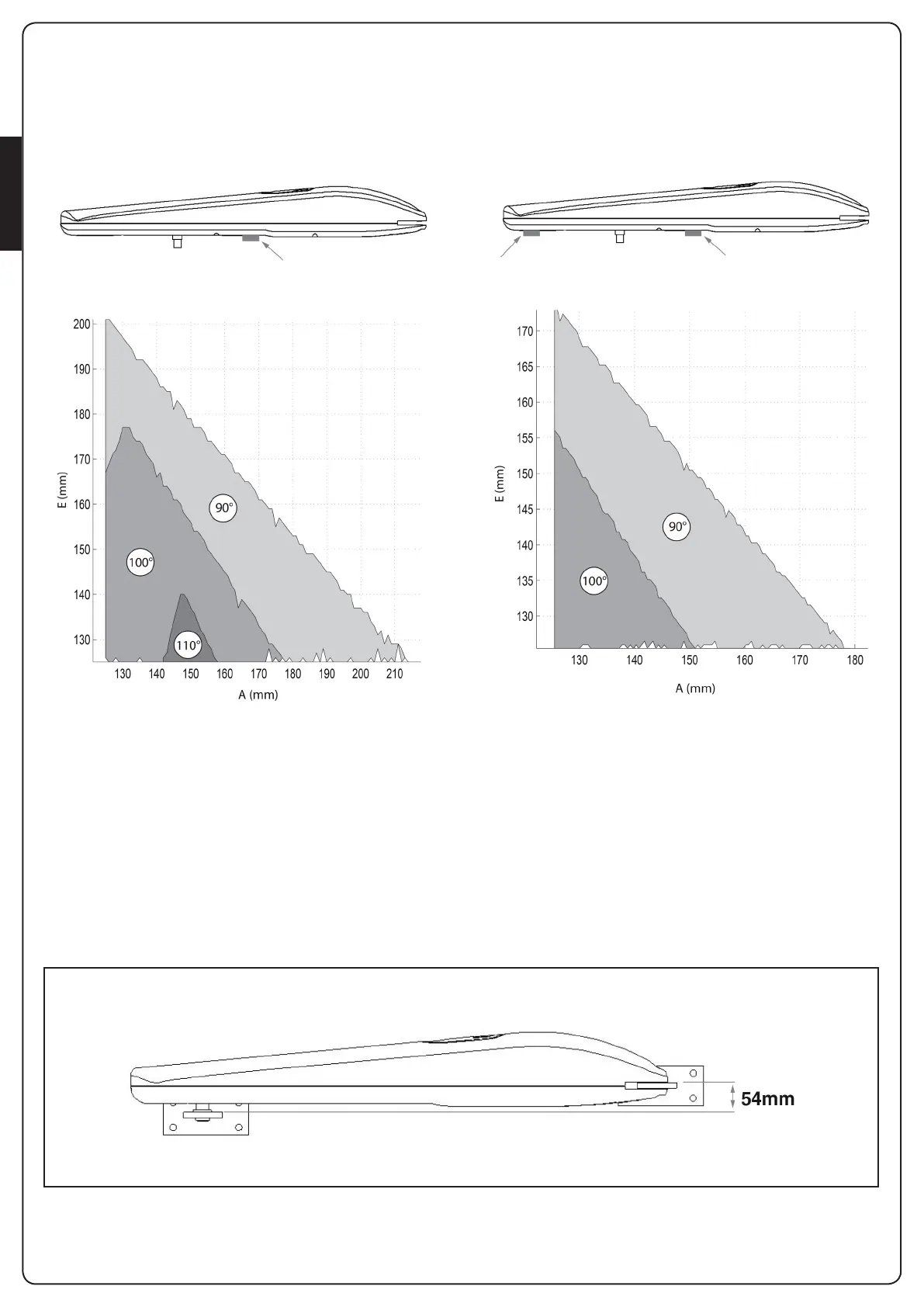

MECHANICAL LIMIT SWITCH IN OPENING
BRACKETS HEIGHT
Fix the brackets keeping 54 mm between the surfaces in order
tofix the gear-motor horizontally. (FIG.3).
TWO MECHANICAL STOPS
(OPENING AND CLOSING)
FIG.3
