V7 D22W12 User Manual

- 5 -

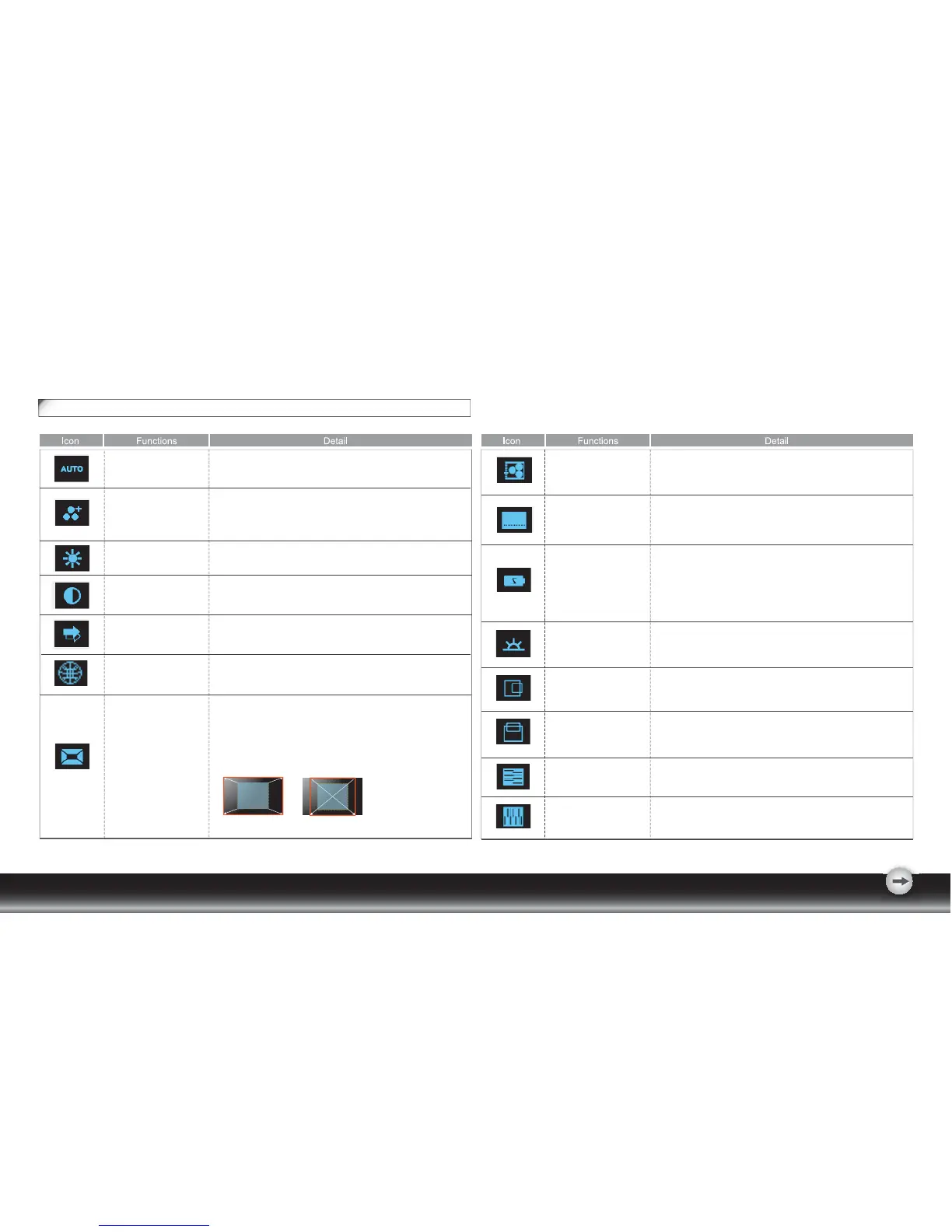

OSD Icon List
AUTO
ADJUSTMENT
POWER SAVING
MODE
INPUT SIGNAL
SELECT
BRIGHTNESS
* Optimize the picture performance automatically.
* Select between Standard and Advanced power saving
modes.
See addendum for details.
* Standard: Fulfill EPA Energy Star power management
requirement
* Advanced: Activate monitor Life-Extension fuction
* Adjust the luminance level of the screen.
* Select the input signal from Analog, and Digital Inputs (Optional).
* Factory default: Analog (VGA)
HORIZONTAL
POSITION
VERTICAL
POSITION
PHASE
CLOCK
* Shift the screen left or right
• Adjust the monitor internal sampling clock rate
• Shift the screen up or down
• Adjust the monitor internal signal phase
ASPECT RATIO
• Select the display ratio from Native, and Full Screen
• Full Screen: adjust and enlarge the display screen to full
screen size (16:10)
• Native: keep the display format as the input signal (4:3,
5:4, etc), and enlarge the display screen to the maximum
w/o losing any content (part of the screen may be blank)
Full Screen
(16:10)
Native
(4:3 or 5:4)
CONTRAST
• Adjust the contrast level of the screen.
* Activate the built-in color engine to enhance the graphic
effects according to the different situations of the display.
contents
THEME MODE
OSD MENU
LANGUAGE
* Select your own preference of language of OSD menu.
COLOR
TEMPERATURE
* Adjust the mechanical specifications regarding the
display.(Power Saving Mode, White Balance, Clock, Phase,
Horizontal Position, Vertical Position, Information)
SYSTEM
* Select the setting of screen color-Cool, Warm or User.
* Cool: Select the setting of screen color to be bluish white.
* Warm: Select the setting of screen color to be reddish white.
* Adjust the balance of the input signal.
WHITE BALANCE

V7 D22W12 Specifications

General

3D	No
HD type	-
Aspect ratio	16:10
Display diagonal	22 \
Display resolution	1680 x 1050 pixels
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	1000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Digital vertical frequency	56 - 76 Hz
Digital horizontal frequency	31.5 - 83 kHz
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Bandwidth	0.14 GHz
Power requirements	100 - 240 VAC
DVI-I ports quantity	0
RMS rated power	3 W
Number of speakers	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	55 W
Certification	CE, cUL, FCC, CCC, TCO’03, C-Tick
Product color	Black
Panel mounting interface	100 x 100 mm
Sustainability certificates	ENERGY STAR
Package depth	134 mm
Package width	569 mm
Package height	480.5 mm
Package weight	6600 g

Weight and Dimensions

Depth (with stand)	202 mm
Height (with stand)	423 mm
Weight (with stand)	4900 g
Depth (without stand)	56 mm
Width (without stand)	510 mm
Height (without stand)	348 mm
Weight (without stand)	4300 g
