V200 POSITIONER
16

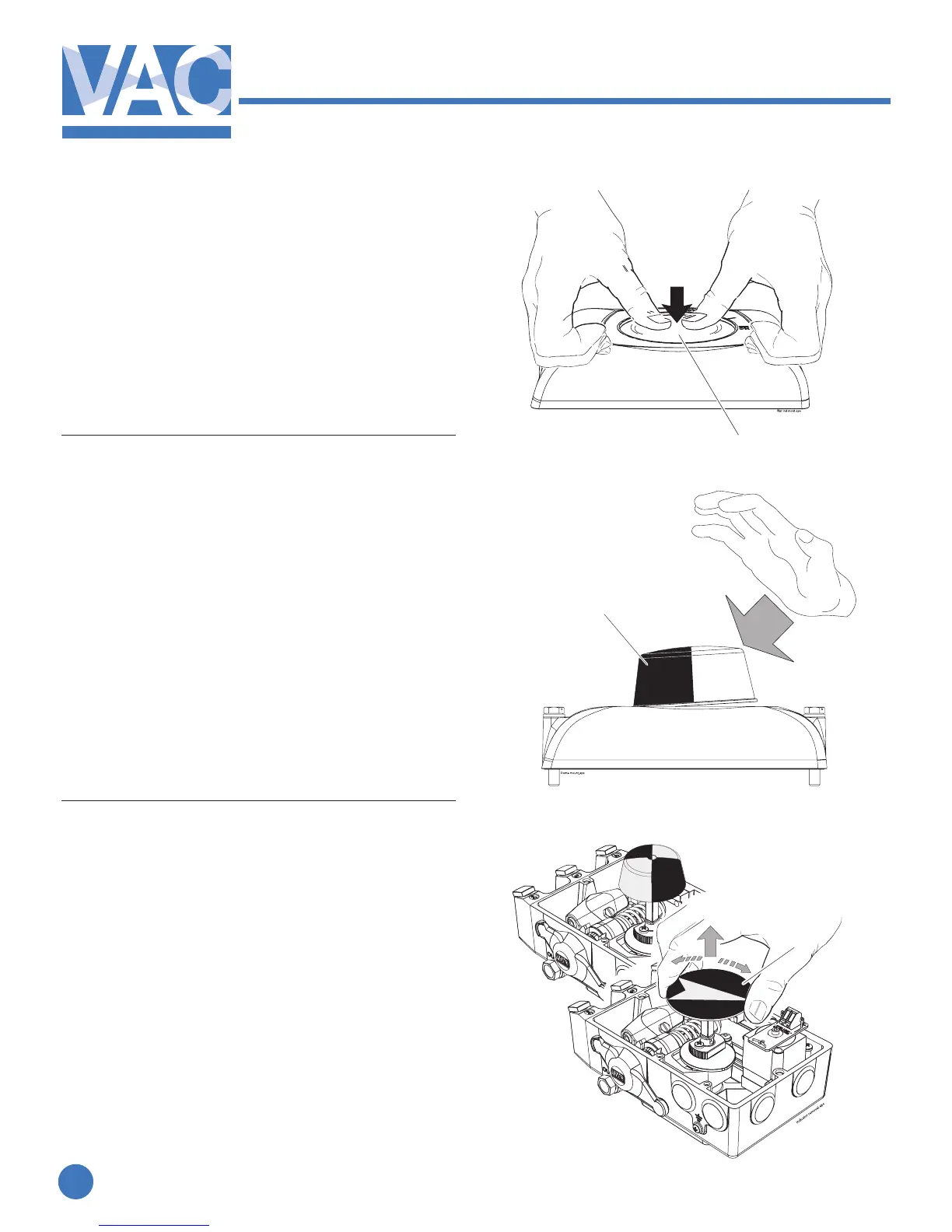

2.10.5 Installing at indicator cover
Place the indicator cover(1) facing down to-
ward the front cover. Press in the center of the
indicator cover until it snaps into place.
2.10.6 Installing Dome Indicator cover
Place the dome indicator cover(2) so that
it is aligned with its seat in the front cover
on one side. Use inside of palm and give the
indicator cover a hard distinctive punch.
Adjust the display position by turning the
indicator cover(2) to its desired position-it is a
reasonablytightfrictiont.
2.10.7 Removing the indicator
Pull the indicator(6) straight up; it is a friction
t.
Important Note!
Note the indicator’s position so it
can be installed in the same position.
Installing the indicator
Install the indicator in place over the drive
shaft and press it straight down.
Be sure to press the indicator completely
down so that it does not interfere with the indi-
cator cover (clear cover).
Turn the indicator to the proper display
1
2
6
