Vacon CX Installation Manual

Vacon Page 1 5 (1 5 )
I/ O-expander board installation (Vacon CXS-range)
Vacon Plc Tel: +3 5 8 -2 0 1 21 21 Fax: +3 5 8 -2 0 1 2 1 2 2 0 5
Service: +3 5 8 -4 0 -8 37 1 1 50 E-mail: vacon@vacon.com
http:/ / w ww.vacon.com
Terminal Signal Description
201 + 5 V C ontrol voltage output Voltage for sw itches, max load 10 0 -1 5 0 mA
203 GN D I/ O ground Ground for controls
206 +2 4 V C ontrol voltage output
207 GN D I/ O ground Ground for controls
214 DI6 A+ Pulse input A
215 DI6 A- (differential input)
216 DI7 B+ Pulse input B
217 DI7 B- (differential input)
218 DIR Encoder direction
219 DIV Encoder divider 1/ 1 02 4
4.5 Vacon CX104OPT
M ore information on the Vacon CX1 0 4 O PT encoder option board you will find in a
separate manual (ud3 1 8 ). Ask your distributor for more information.

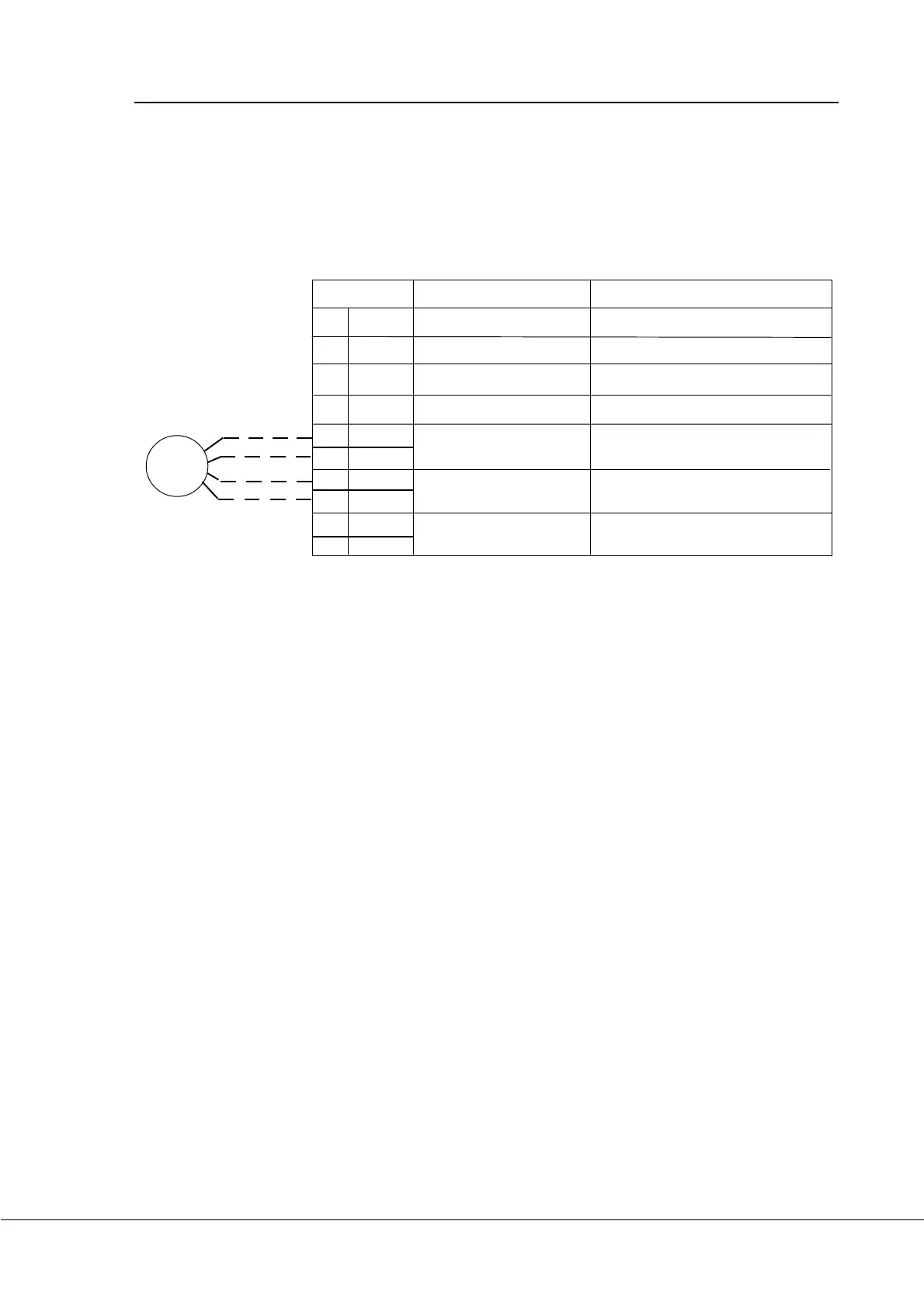

Figure 4 -5 Control connections of Vacon CX1 0 4 O PT.
Enco-
der
