vacuubrand BVC control - System Parts

page 19 of 76

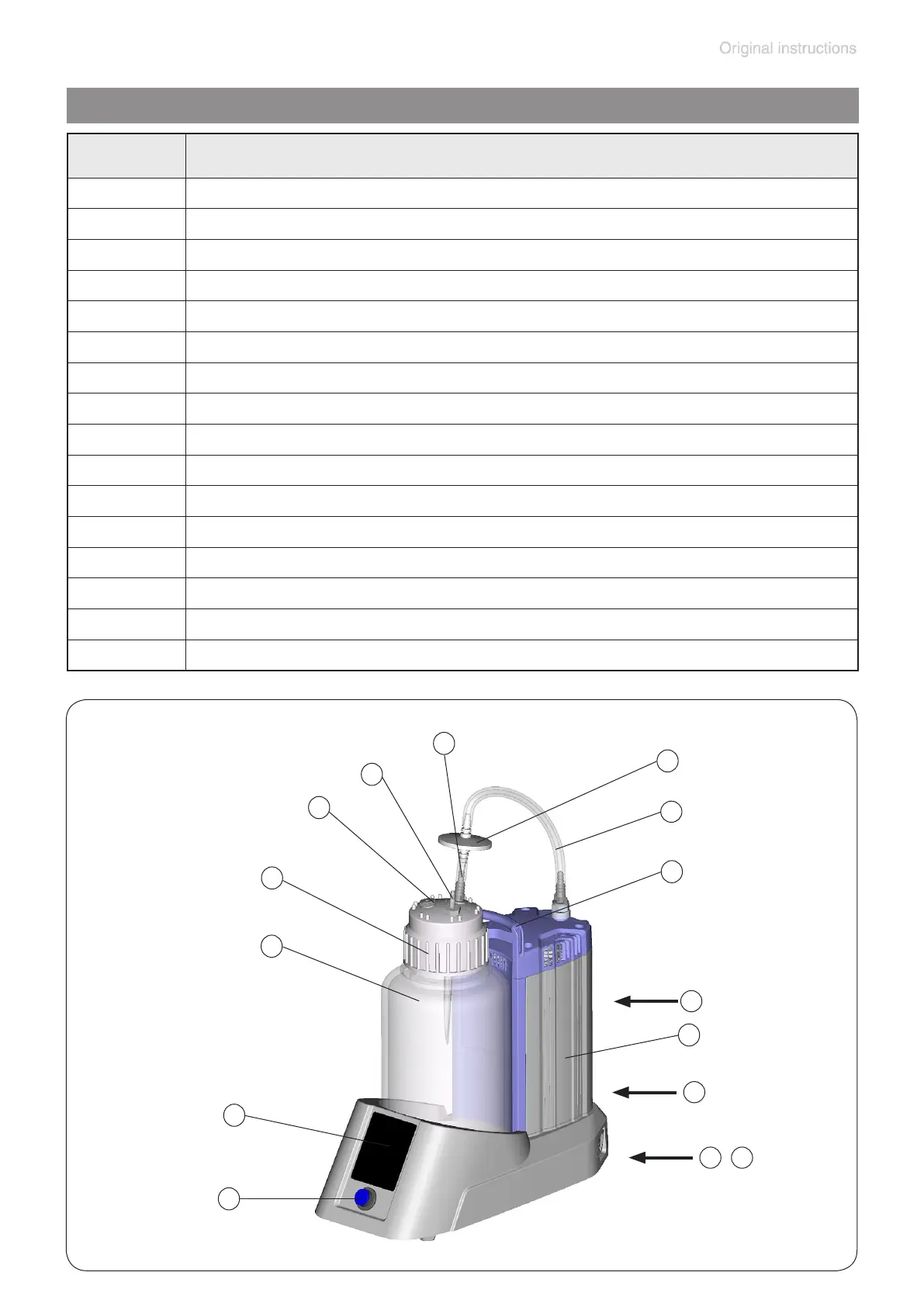

Position Designation
1 Pump ME 1C
2 Mains connection
3 Fuse holder
4 On / Off switch
5 Touch panel
6 Rating plate
7 Outlet
8 Connection tubing
9 Hydrophobic protection lter
10 Connection lter
11 Connection VacuuHandControl VHC
pro
12 Closing screw (optional: connection second VHC
pro
)
13 Screw cap / bottle cap with insert
14 Collection bottle
15 Handle
16 Level sensor
BVC control
6
1
7
2
14
12
13
10
11
9
4
8
15
5
3
System parts
