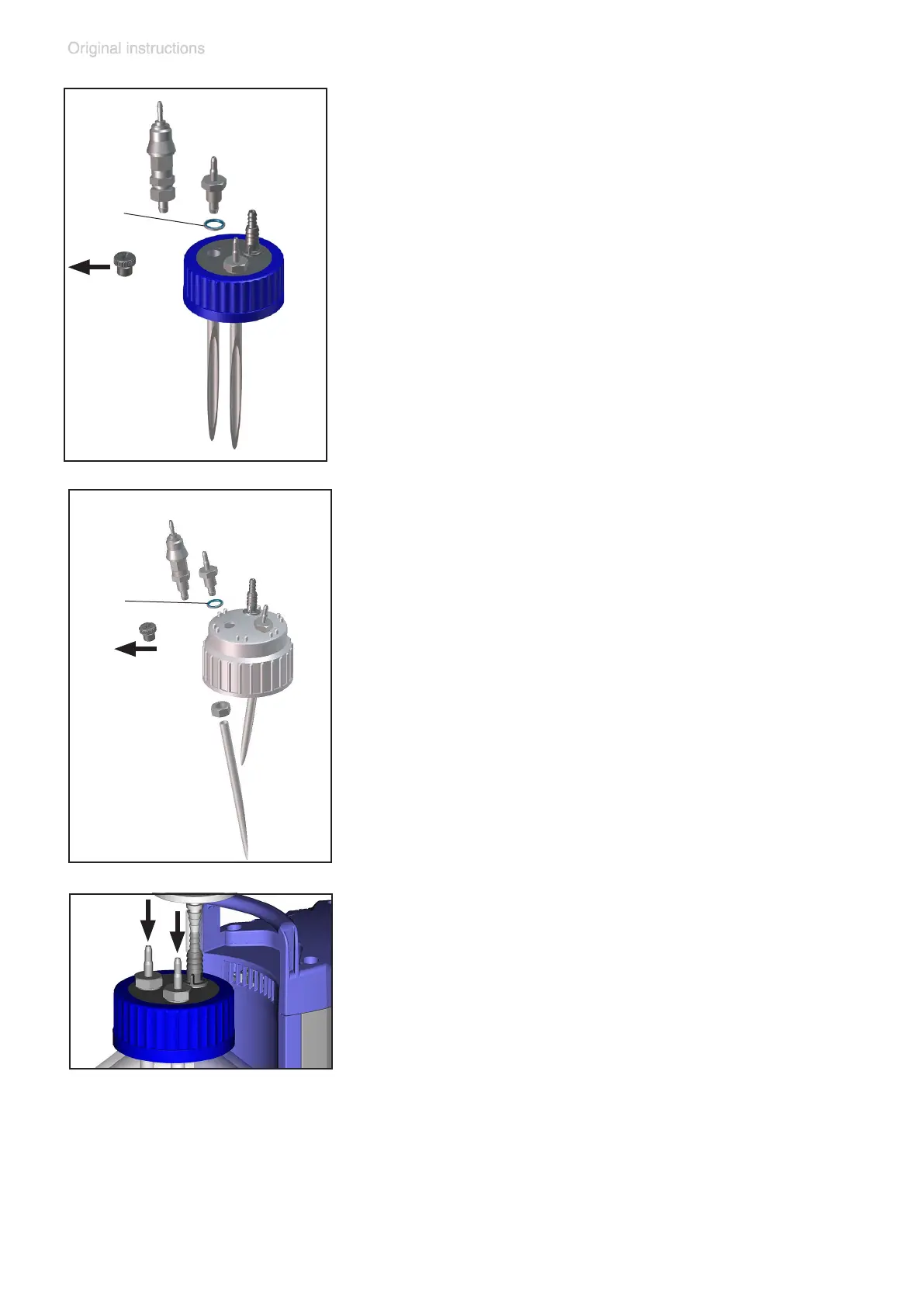

BVC with glass bottle
Screw hose connection (1a) with seal ring (2)
or coupling (1b) with seal ring (2) into the screw
cap.
Assemble hose (3) under the screw cap to the
lead through.
1a
2
3
1b
BVC with polypropylene bottle
Insert hose connection (1a) with seal ring (2) or
coupling (1b) with seal ring (2) in the screw cap.
Secure lead through with counter nut (3). As-
semble hose (4) under the screw cap to the
lead through.
Screw screw cap to bottle.
Assemble lter.
Assemble VHC
