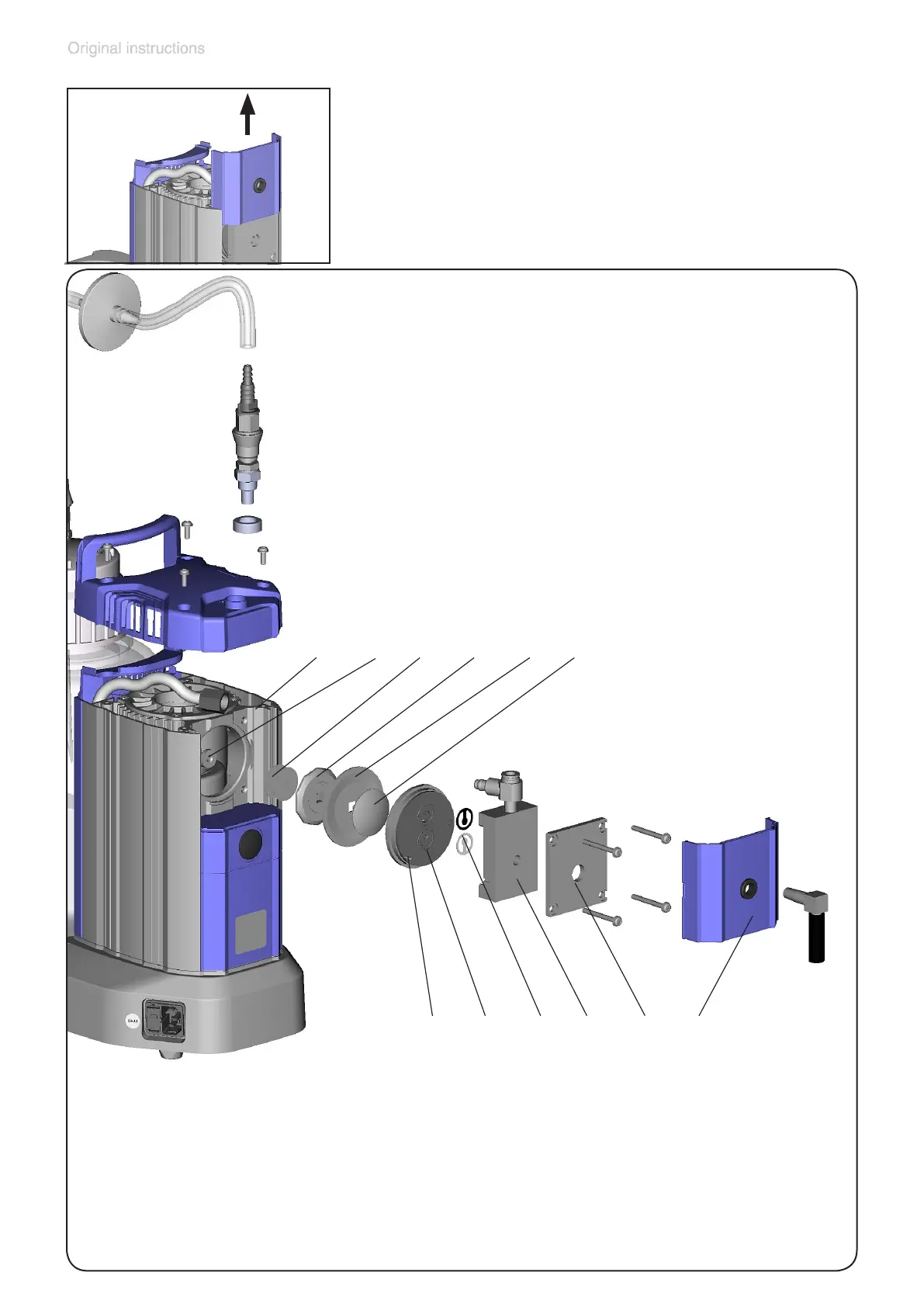

View of the disassembled pump
head parts ME 1C
1: Cover of housing cover
2: Housing cover
3: Housing cover insert
4: Valves
5: Head cover
6: Guiding pin
7: Diaphragm clamping disc
with square head screw
8: Diaphragm
9: Diaphragm support disc
10: Washers
11: Rod
12: Housing
1
7
345
11 10 8
2
9
6
12
➨ Remove the cover of the housing cover from
the housing.
