6.9 Removing/installing the front casing
6.9.1 Removing the front casing
B
A
B

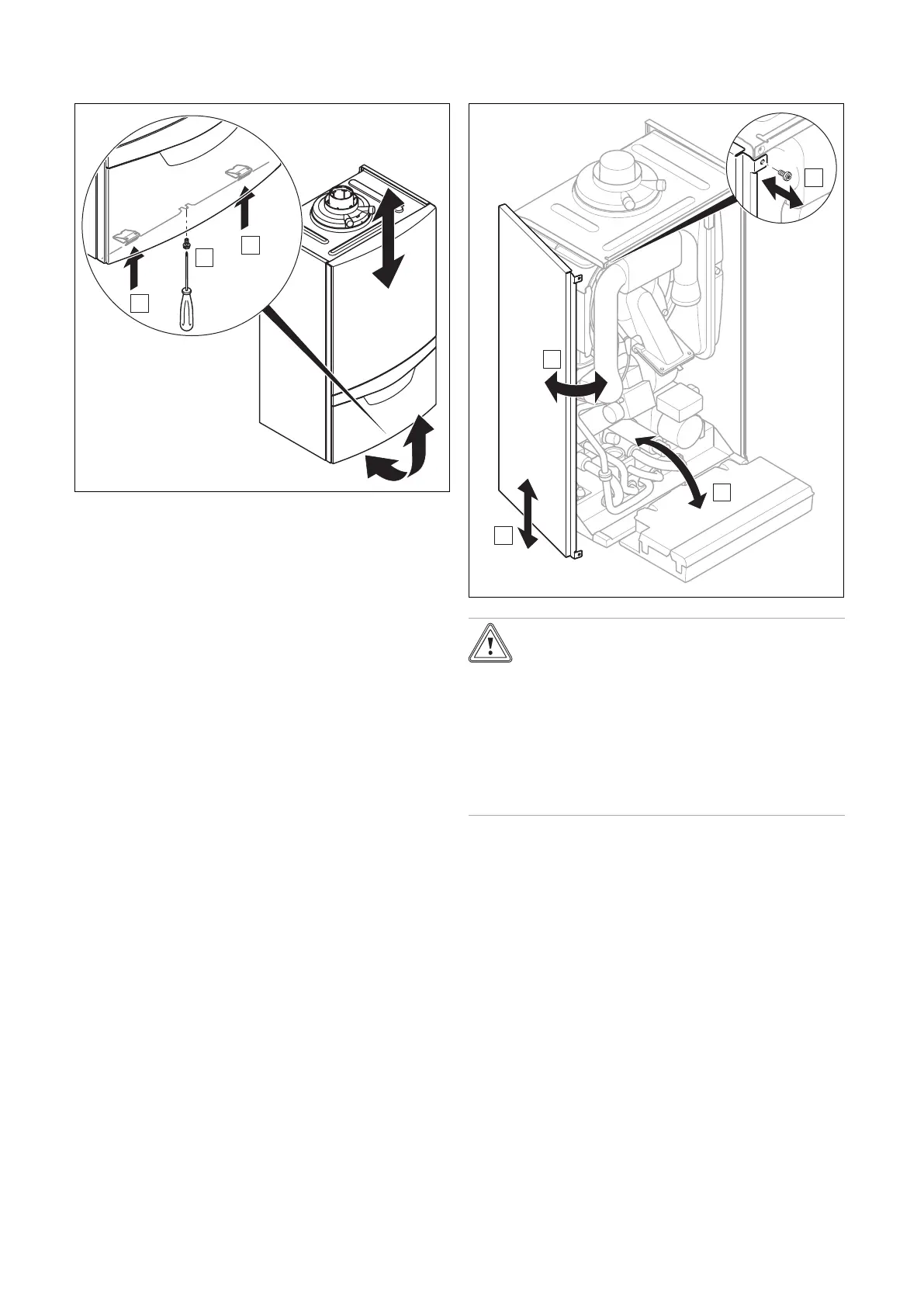

▶ Remove the front casing as shown in the illustration.
6.9.2 Installing the front casing
▶ Refit the components in the reverse order.
6.10 Removing/installing the side section
6.10.1 Removing the side section
2x
B
A
C
D
Caution.
Risk of material damage caused by mech-
anical deformation.
Removing both side sections may cause
mechanical distortion in the product, which
may cause damage to the piping, for ex-
ample, and potentially result in leaks.
▶ Always only remove one side section –
never both side sections at the same time.
▶ Remove the side section as shown in the illustration.
6.10.2 Installing the side section
▶ Refit the components in the reverse order.
