Notes on the documentation 2
0020244339_01 eloSTOR plus, eloSTOR exclusive Installation and maintenance instructions 5
2 Notes on the documentation
2.1 Observing other applicable documents
▶ You must observe all the operating and installation in-
structions included with the system components.
2.2 Storing documents
▶ Pass these instructions and all other applicable docu-
ments on to the system operator.
2.3 Applicability of the instructions
These instructions apply for the following products only:
Product article number
VEN 5/7-5_U
0010021140, 0010021141,
0010021142
VEN 5/7-5_O
0010021139
VEN 5/7-7_U
0010021138
VEN 5/7-7_U_S1
0010021424

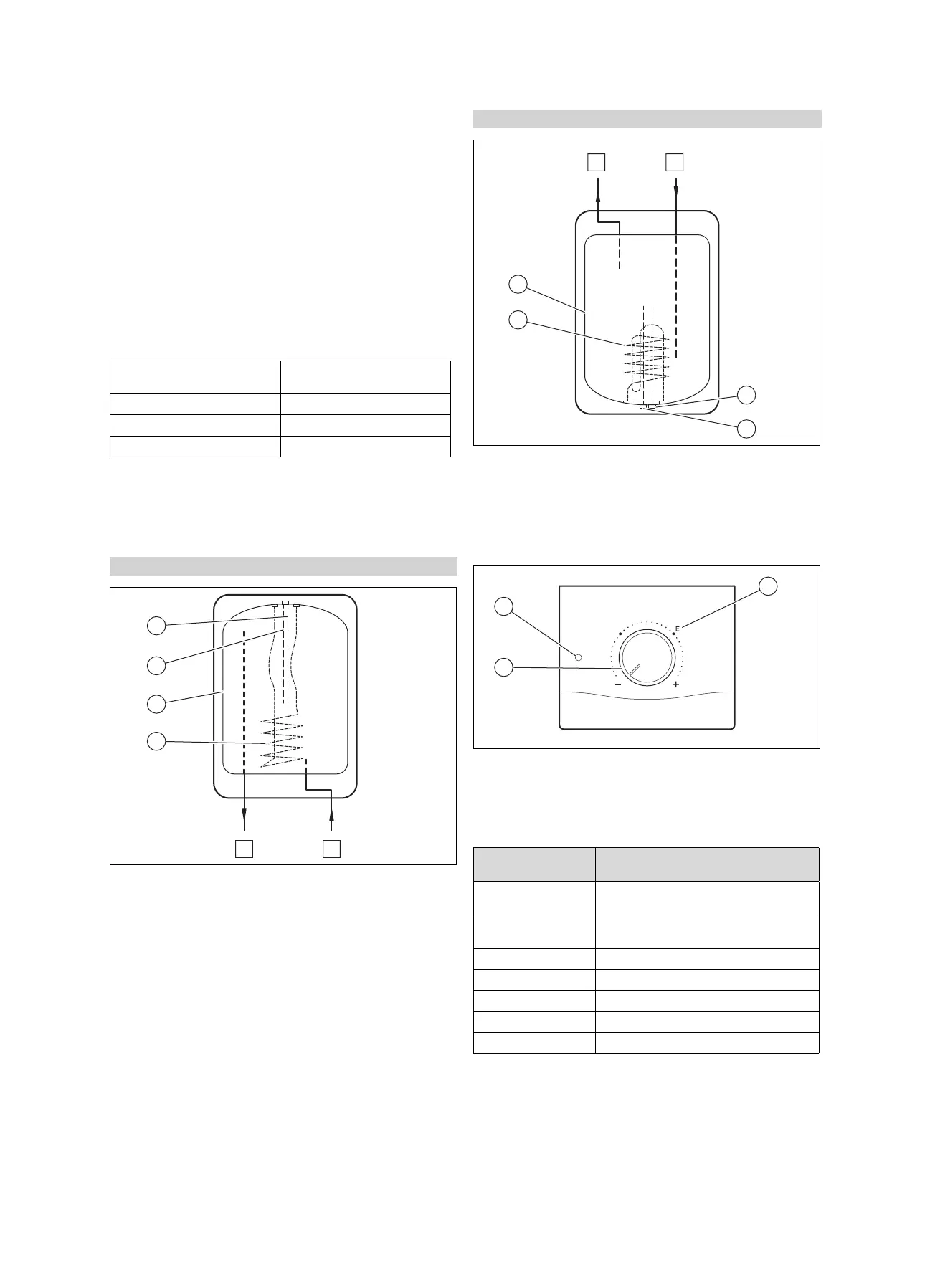

3 Product description
3.1 Functional elements
Applicability: Installation above the work surface
A
B
1
2
3
4
1 Heating coil
2 Inner vessel
3 Overheating protection
4 Temperature sensor
A Hot water outlet
B Cold water inlet
Applicability: Installation below the work surface
A
B
1
2
3
4
1 Heating coil
2 Inner vessel
3 Overheating protection
4 Temperature sensor
A Hot water outlet
B Cold water inlet
3.2 Overview of the operator control elements
1
2
3
1 Temperature selector
2 Control light
3 Energy-saving operation
3.3 Information on the identification plate
Information on the
identification plate
Meaning
Serial number For identification purposes; 7th to 16th
digits = product article number
VEN ... System component for the domestic hot
water generation
eloSTOR Product designation
kW Nominal output
230 V 50 Hz Voltage – frequency
MPa Maximum pressure
IP (e.g. X4D) Degree of protection against water
