Appendix
0020250180_00 geoTHERM Installation and maintenance instructions 43
VWS 36/4.1 230V
Coefficient of performance EN 14511 B0/W45
3.10
Heating output B0/W55 ΔT 8 K
2.20 kW
Power consumption B0/W55 ΔT 8 K
0.90 kW
Effective power consumption B0/W55 ΔT 8 K
0.88 kW
Coefficient of performance EN 14511 B0/W55 ΔT 8 K
2.50
Cooling output B10/W18(22), passive
5 kW
Application limits for the heat pump: Heating (heat source = brine)
– At the same volume flow rates in the heating circuit (ΔT 5 K or ΔT 8 K) and the brine circuit (ΔT 3 K) as for the nominal
heat output test under standard nominal conditions. Operation of the pump outside the application limits results in the
heat pump being switched off by the internal control and safety devices.
– Application limits for the heat pump: Heating:
– B-10/W20
– B-10/W55
– B−3/W60
– B20/W60
– B20/W20
– To be able to achieve the B−10/W20 and B−10/W55 operating limits, you must change the freeze protection in the
configuration from the factory setting to -13 °C.
J Basic hydraulic diagram

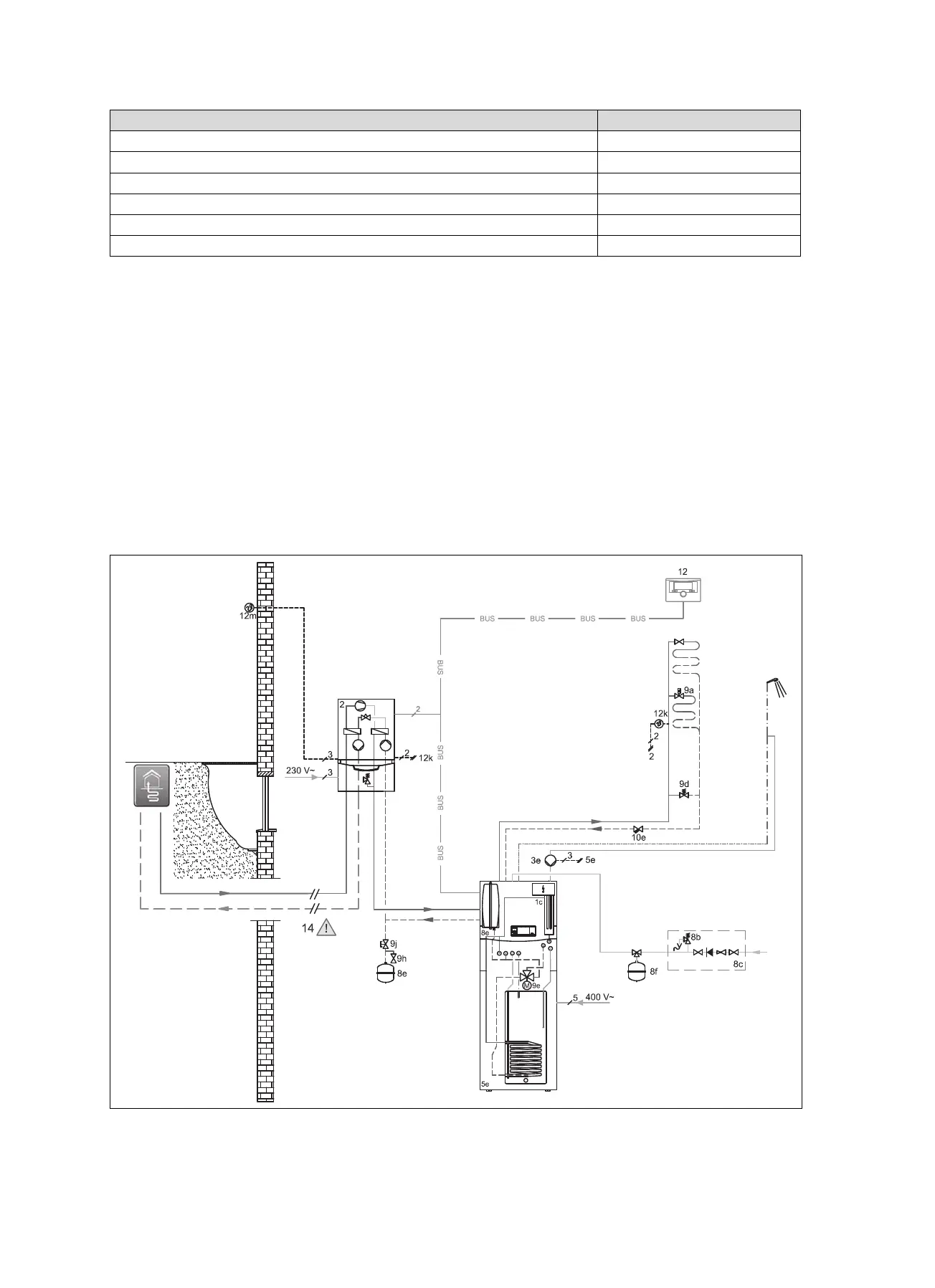

J.1 Basic hydraulic diagram 0020232108
2 Heat pump
3e Circulation pump
5e Hydraulic tower
8b Potable water expansion relief valve
