Product description 3
0020250180_00 geoTHERM Installation and maintenance instructions 9

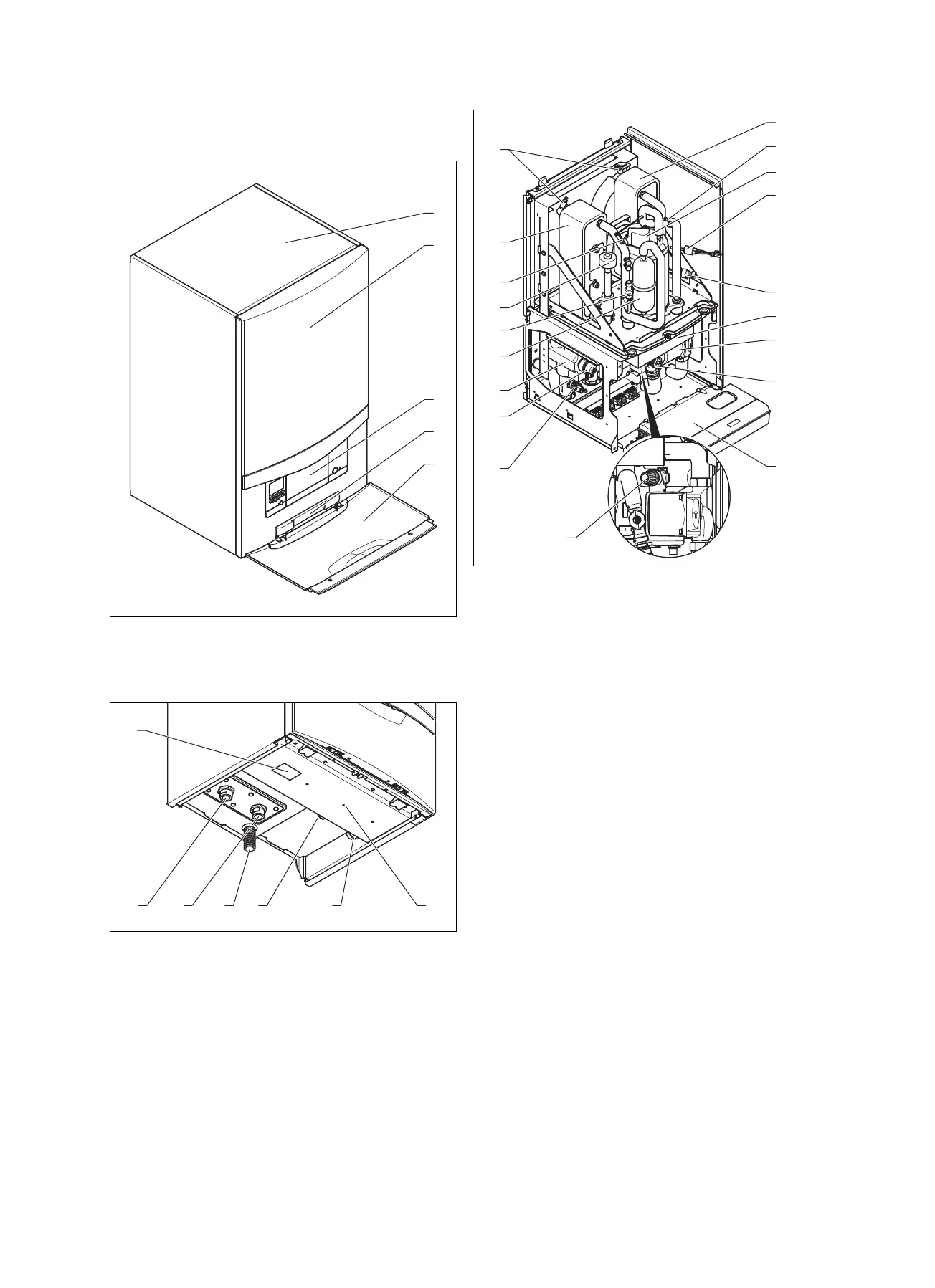

3.2 Design and functionality of the product
3.2.1 Design
3
5
4
1
2
1 Removable hood
2 Front casing
3 Operating panel
4 Plate with serial number
on the rear
5 Front flap
1
3 256
7
4
1 Cable feedthrough for
electrical connections
2 Heating return
3 Heating flow
4 Expansion relief valve
drain hose
5 From the heat pump to
the heat source (cold
brine)
6 From the heat source
to the heat pump (hot
brine)
7 Data plate
4
5
7
6
8
9
1
10
11
13
14
16
18
3
2
12
15
17
19
1 Condenser
2 Compressor outlet
temperature sensor
3 Rotary piston com-
pressor
4 High-pressure pressure
switch
5 High-pressure sensor
6 Relay PCB
7 Heating pump
8 Flow rate sensor
9 Switch box
10 Heating circuit expan-
sion relief valve
11 Brine circuit pressure
sensor
12 Brine mixer
13 Brine pump
14 Refrigerant collector
15 Low-pressure sensor
16 Electronic expansion
valve
17 Compressor inlet tem-
perature sensor
18 Evaporator
19 Purging valves
