Operating and Installation Manual for uniSTOR, auroSTOR, geoSTOR Cylinders 0020080043_00 10
• Remove the top pad and the cardboard sleeve carton.
• Pull the cylinder on the bottom pad over the edge of
the pallet until you can break off the bottom pad at
the intended point with your foot.
• Position the hand cart in front of the pallet and load
the cylinder on to it.
5.3.3 Transport without cladding
1

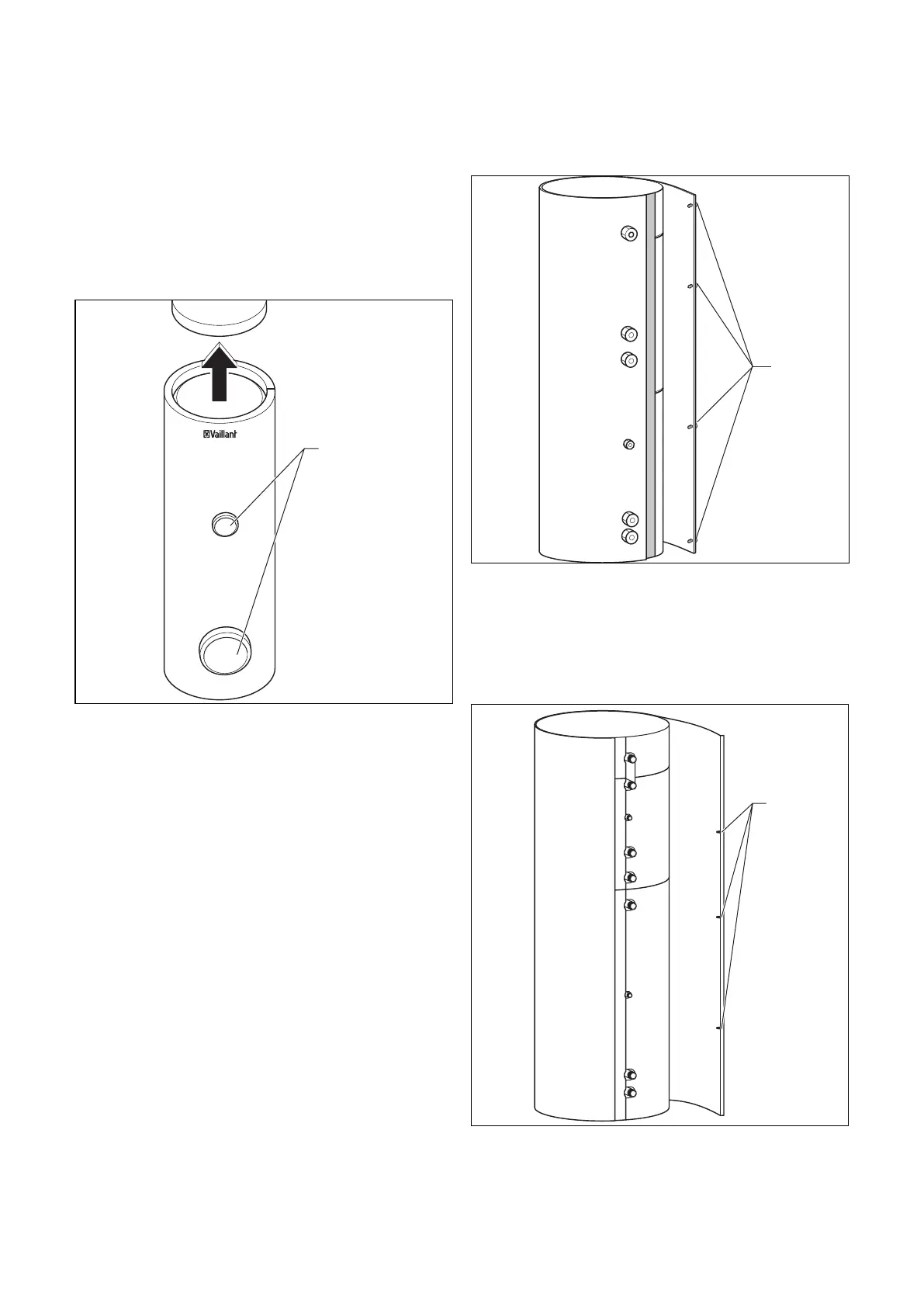

Fig. 5.7 Removing the top cap and covers
• Remove the top cap from the cylinder.
• Pull the two covers (1) off the front of the cylinder.
300l variant:
1
Fig. 5.8 Releasing the jacket
• Unfasten the 6 screws (1) at the rear of the cylinder.
• Take the jacket in your hand and walk once round the
tank so that the jacket rolls up.
400l and 500l variants:
1
Fig. 5.9 Releasing the jacket
5 Installation

Vaillant uniSTOR Specifications

General

Maximum Operating Pressure	10 bar
Capacity	120L, 150L, 200L, 300L
Insulation	High-density foam insulation
Thermal Insulation	High-density foam insulation
Weight	50 kg
Dimensions (Height x Diameter)	Varies by model
