10 Operating instructions for electric domestic hot water cylinders VEN 5/6 U and O (plus) 0020129648_02
1
2
140
100
e
b a
c
5
3
4
R 3/8
70
d

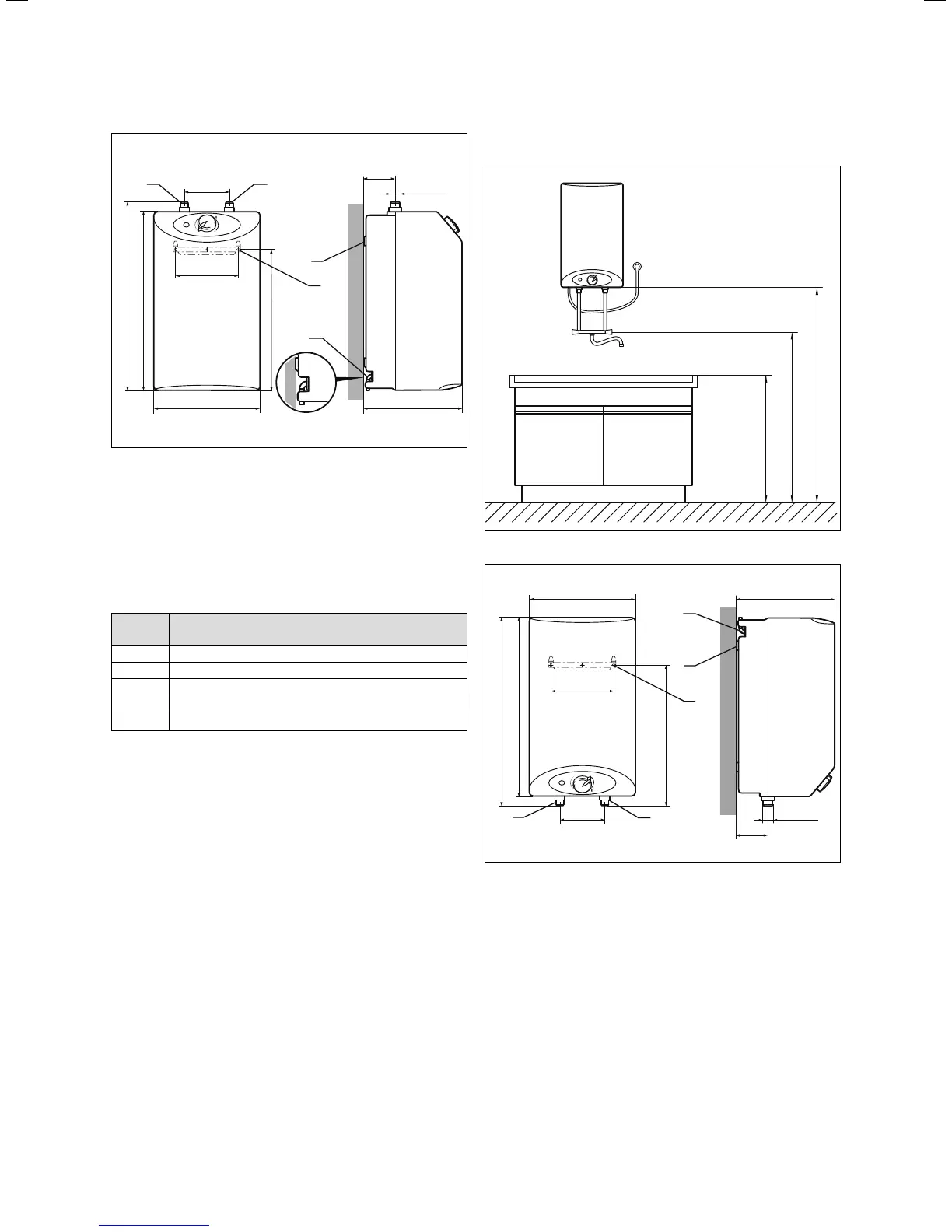

Fig.4.3 Unit and connection dimensions for undercounter unit
Key
1 Hot water connection
2 Cold water connection
3 Bracket
4 Cable duct or cable connection
5 Mounting lug
R 3/8 = 3/8" pipe thread
Dimen-
sions
VEN 5/6 U plus
a 418 mm
b 400 mm
c 240 mm
d 218 mm
e 316 mm
Tab.4.2 Unit dimensions: undercounter unit
For the dimensions, refer to Fig.4.2, Fig.4.3
and Ta b. 4.2.
Overcounter unit
850
1200
1500
Fig.4.4 Installation example: overcounter unit
1
2
4
5
3
140
100
e
R 1/2
b
a
70
d c
Fig.4.5 Unit and connection dimensions for overcounter unit
Key
1 Hot water connection
2 Cold water connection
3 Bracket
4 Cable duct or cable connection
5 Mounting lug
R 1/2 = 1/2" pipe thread
For the dimensions, refer to Fig.4.4, Fig.4.5
and Ta b. 4. 3.
