Vaisala WMS301 User Manual

Chapter 3 __________________________________________________ Installation
VAISALA__________________________________________________________13
0212-223

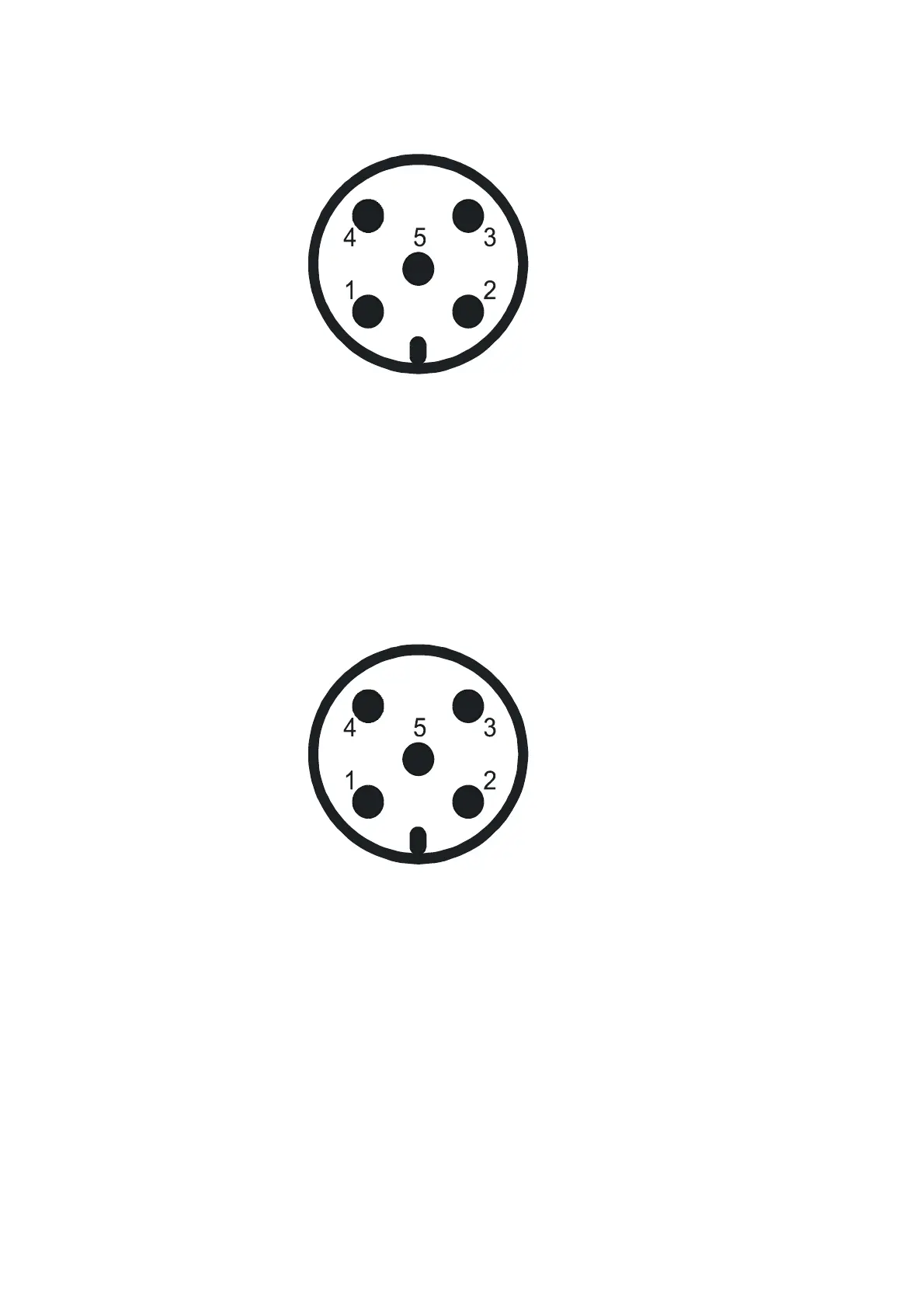

Figure 4 WMS301 Connector
The following numbers refer to Figure 4 above.
1 = +Vref, voltage input
2 = DIR, signal output, wind direction
3 = GND, ground
4 = GND, ground
5 = SPD, signal output, wind speed
0212-223
Figure 5 WMS302 Connector
The following numbers refer to Figure 5 above.
1 = +Vref, voltage input
2 = DIR1, signal output, wind direction
3 = GND, ground
4 = DIR2, signal output, wind direction
5 = SPD, signal output, wind speed
