Chapter
6
_______________________________________________
Technical Da
ta
VAISALA__________________________________________________________29
Dimensions
0212-228

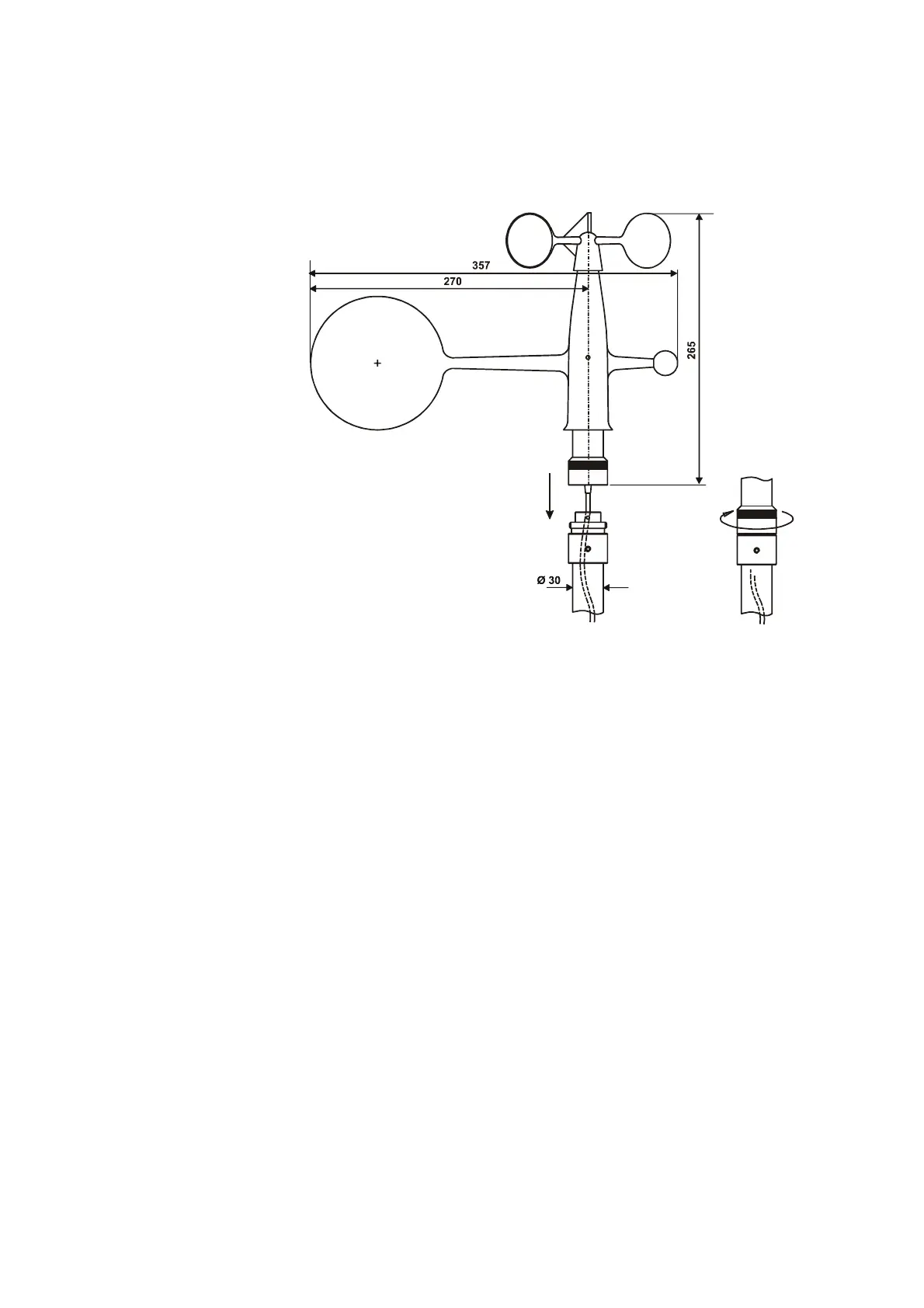

Figure 13
Dimensions (in mm
) of the Combined Wind
Sensor
MTBF
The calculate
d mean tim
e between failure is
4.4
×
10
5
h for
permanent in
stall
ations. The valu
e equals t
o 2.27 when
expresse
d in a failure f
requency
during 10
6
hours of use.
MTTR
Mean tim
e to repair is
0.2 h.
30
32
