Vaisala WXT520 - Figure 3 Cut Away View

User’s Guide ______________________________________________________________________
20 __________________________________________________________________ M210906EN-C
0803-028

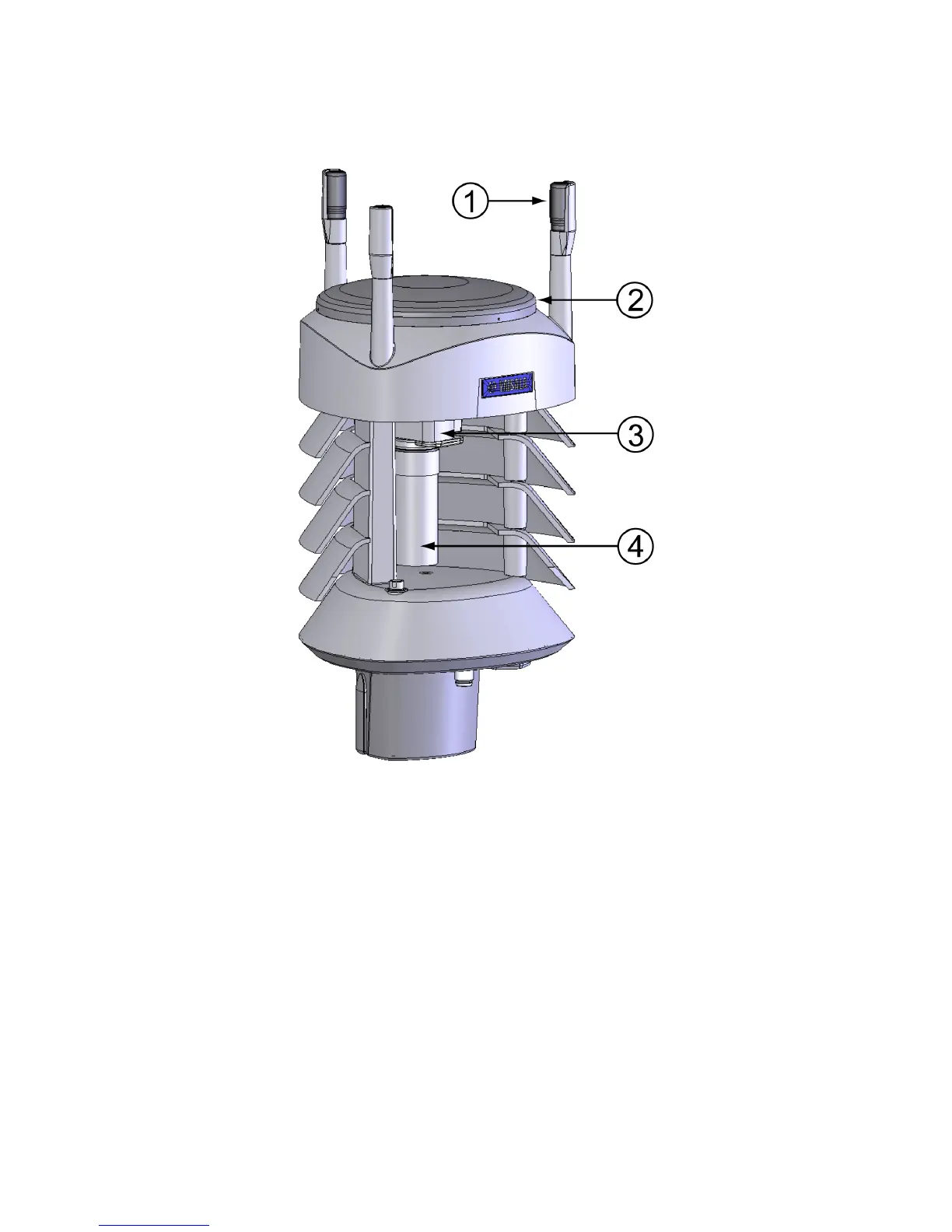

Figure 3 Cut Away View
The following numbers refer to Figure 3 on page 20:
1 = Wind transducers (3 pcs)
2 = Precipitation sensor
3 = Pressure sensor inside the PTU module
4 = Humidity and temperature sensors inside the PTU module
