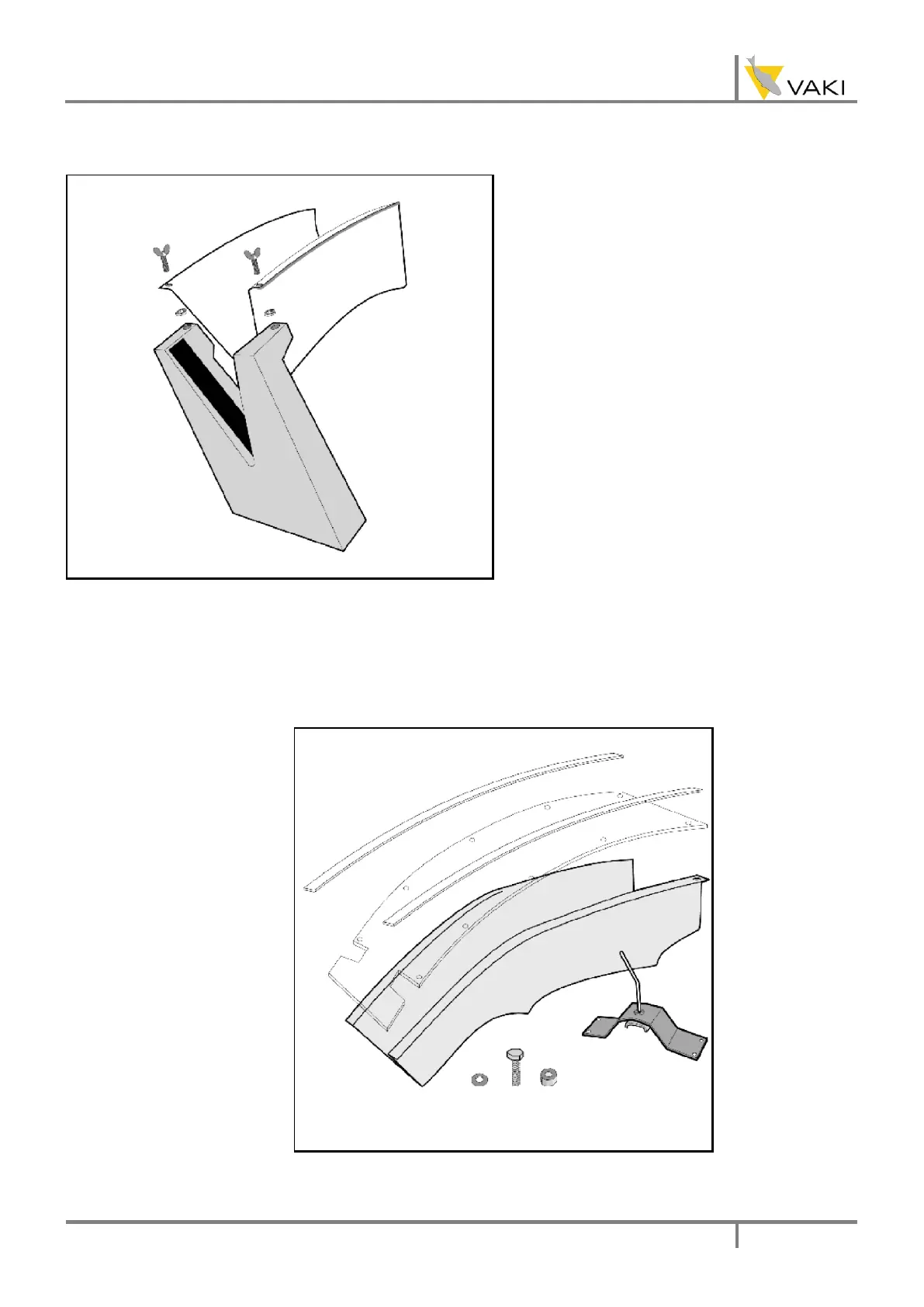

2.1.5 Installing the scanner unit
Place a washer on each
of the two wing screws.
Put the screws through
the pre-drilled holes in
the channel and secure
them with the plastic
locking washers. Place
the scanner unit in
position and secure it by
tightening the wing
screws.
2.2 V-CHANNEL 3
1. Glass-reinforced
polyester channel
2. Plastic cover with two
plastic strips
3. Clamp (with bolts and
screws)
4. PVC flap
5. Stainless steel screws,
bolts and nuts
