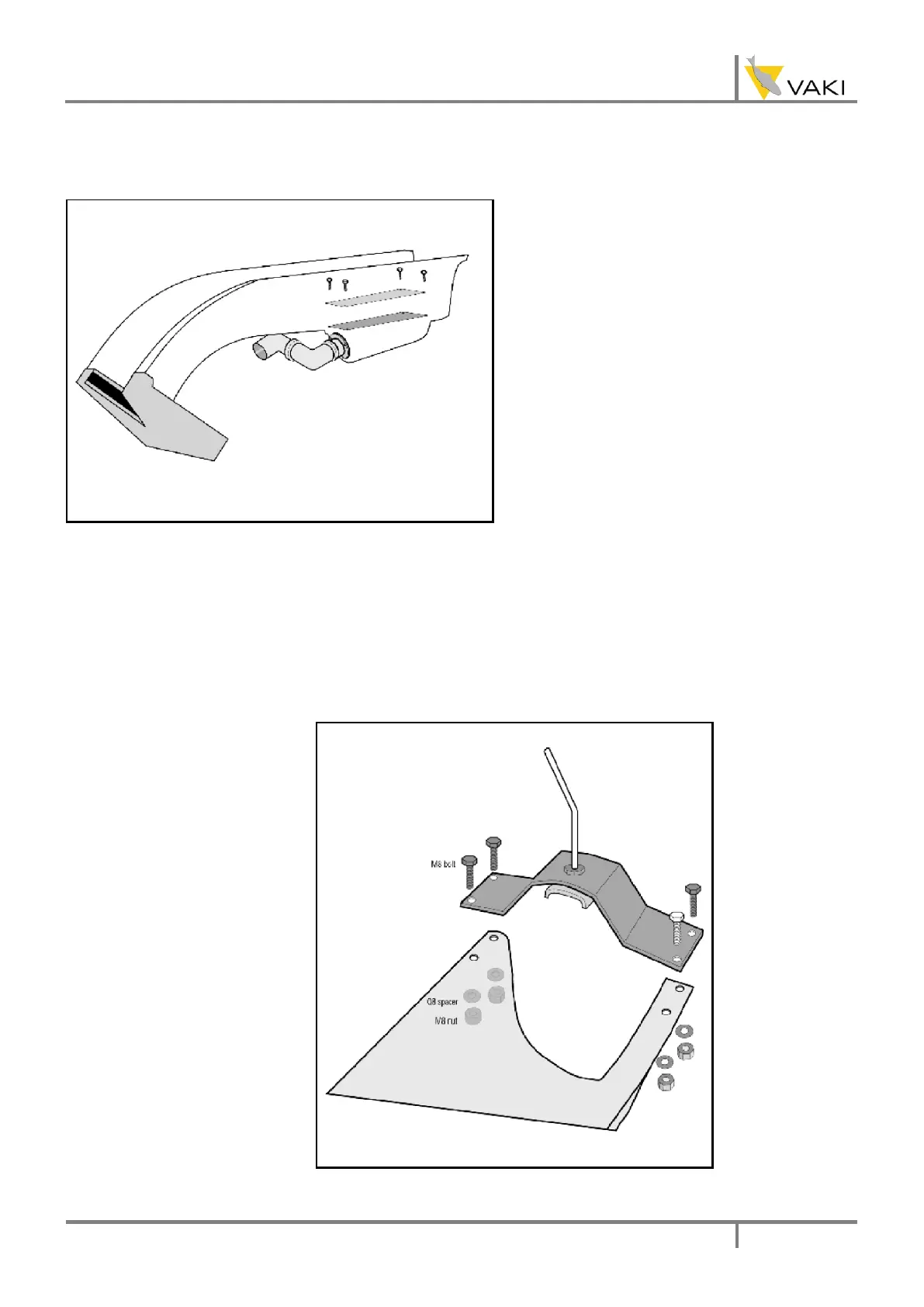

2.1.3 Fitting the aluminium grating
Tools required: Silicone
gun. Prepare the grating
and four M3 screws,
spacers and nuts. Make
sure that the smooth
side of the grating faces
upwards so as to avoid
injuring the fish. The
smooth side can be
identified by running
your fingers across the
grating.
2.1.4 Fitting the clamp
Prepare all the parts
needed: 4 M8 bolts, 4
washers and 4 M8 nuts.
Place the clamp in the inlet
of the channel, aligning the
holes on the clamp. Place all
8 mm screws in position
before tightening fully. To
prevent all bolts from
corroding, some grease has
been put on the bolts and
bushings.
