VAKI Bioscanner User Manual

Bioscanner Manual
www.vaki.is
Page 8 of 25

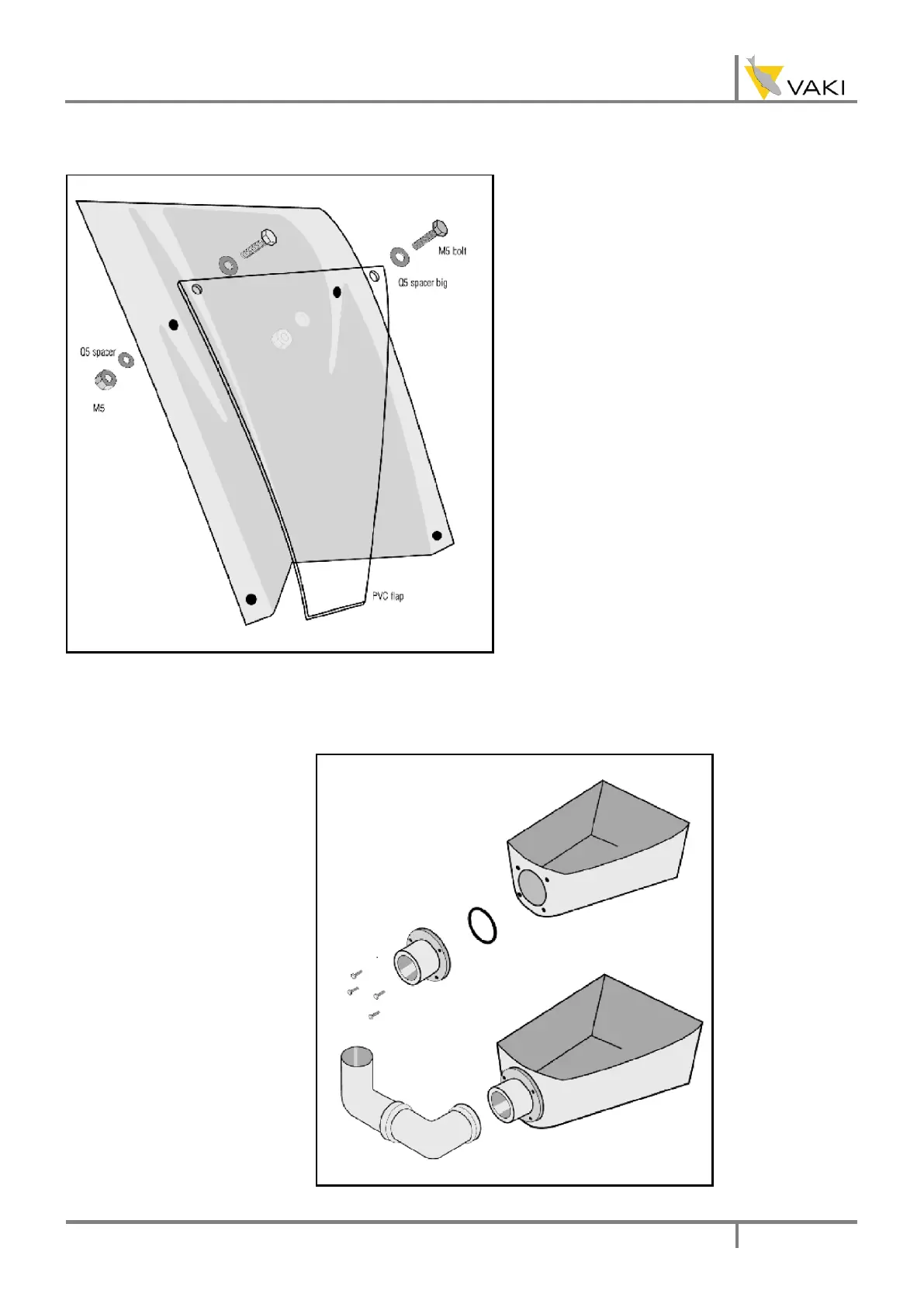

2.1.1 Attaching the PVC flap
Parts: 2 x M5 bolts, 2 x
M5 nuts, 4 x Ø5 washers.
Place the flap in position
at the end of the
channel. Fasten the flap
in position with the M5
bolts. Check that the flap
is hanging straight.
Adjust if necessary.
2.1.2 Attaching the flange and the 90° elbow joints
Prepare all the parts
needed: The channel, the
flange, the 0-ring, 4 M5 bolts
and nuts and the two elbow
joints. Place the 0-ring in the
recess in the flange and
fasten the flange to the
channel with the four bolts
and nuts shown, tighten the
nuts evenly. Before fitting
the 90° elbow joints to the
flange, lubricate them with
soap and/or water.
