2. ASSEMBLY INSTRUCTIONS
The Bioscanner V-channel is manufactured and packed ready for assembly by the user. V-CHANNEL
1 is recommended for fish from 3 gr. - 750 gr. and V-CHANNEL 3 is recommended for fish from 500
gr. - 6.000 gr. Following are the parts for V-CHANNEL 1.

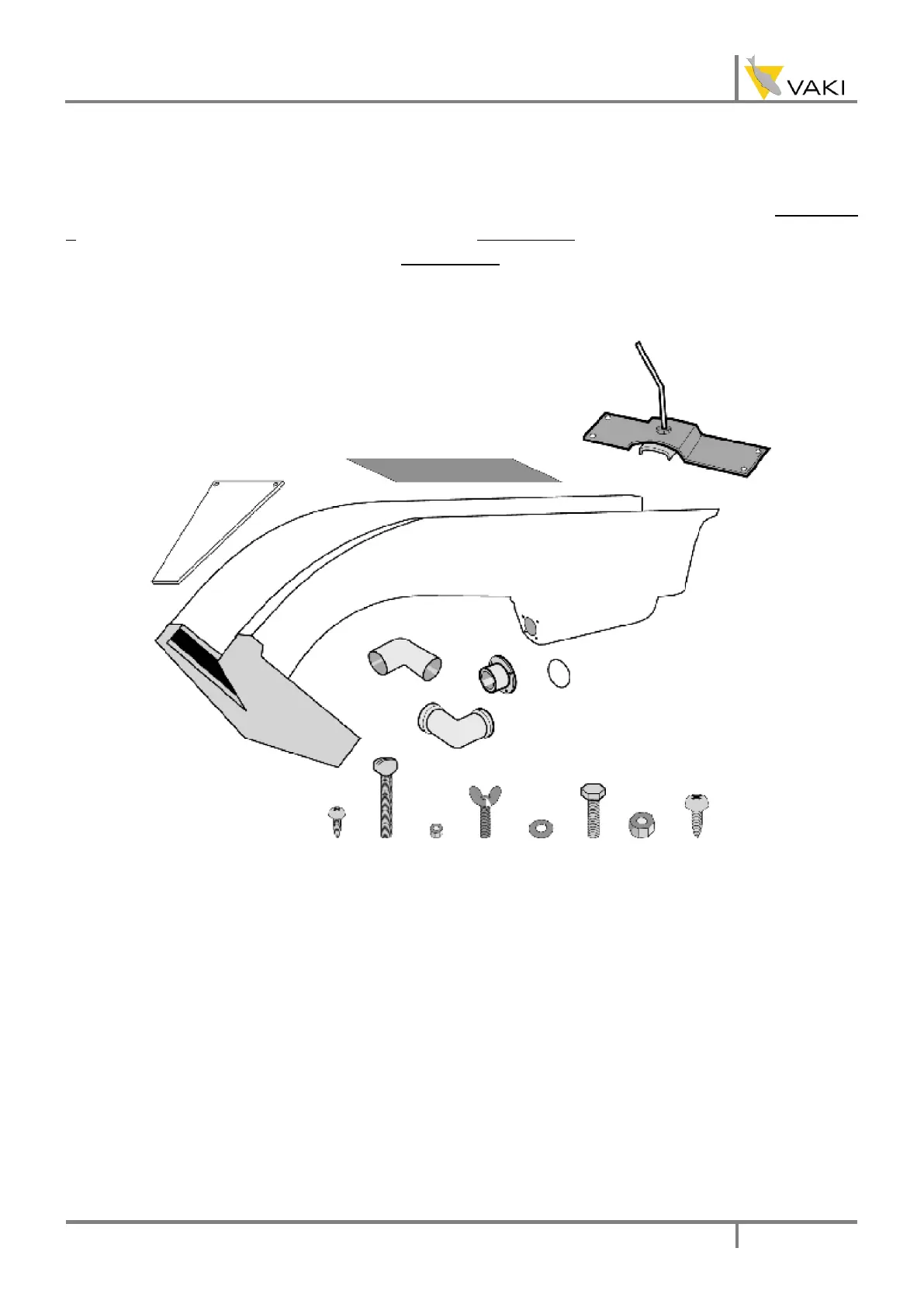

2.1 V-CHANNEL 1
1. Glass-fibre reinforced polyester channel
2. Polyurethane flange
3. Rubber 0-ring
4. Two 90° PVC elbow joints
5. Aluminium grating
6. Transparent PVC flap
7. Stainless steel screws, bolts and nuts
8. Clamp
