VAKI Bioscanner - Attaching the PVC Plastic Cover; Fitting the Clamp; Installing the Scanner Unit

Bioscanner Manual
www.vaki.is
Page 11 of 25

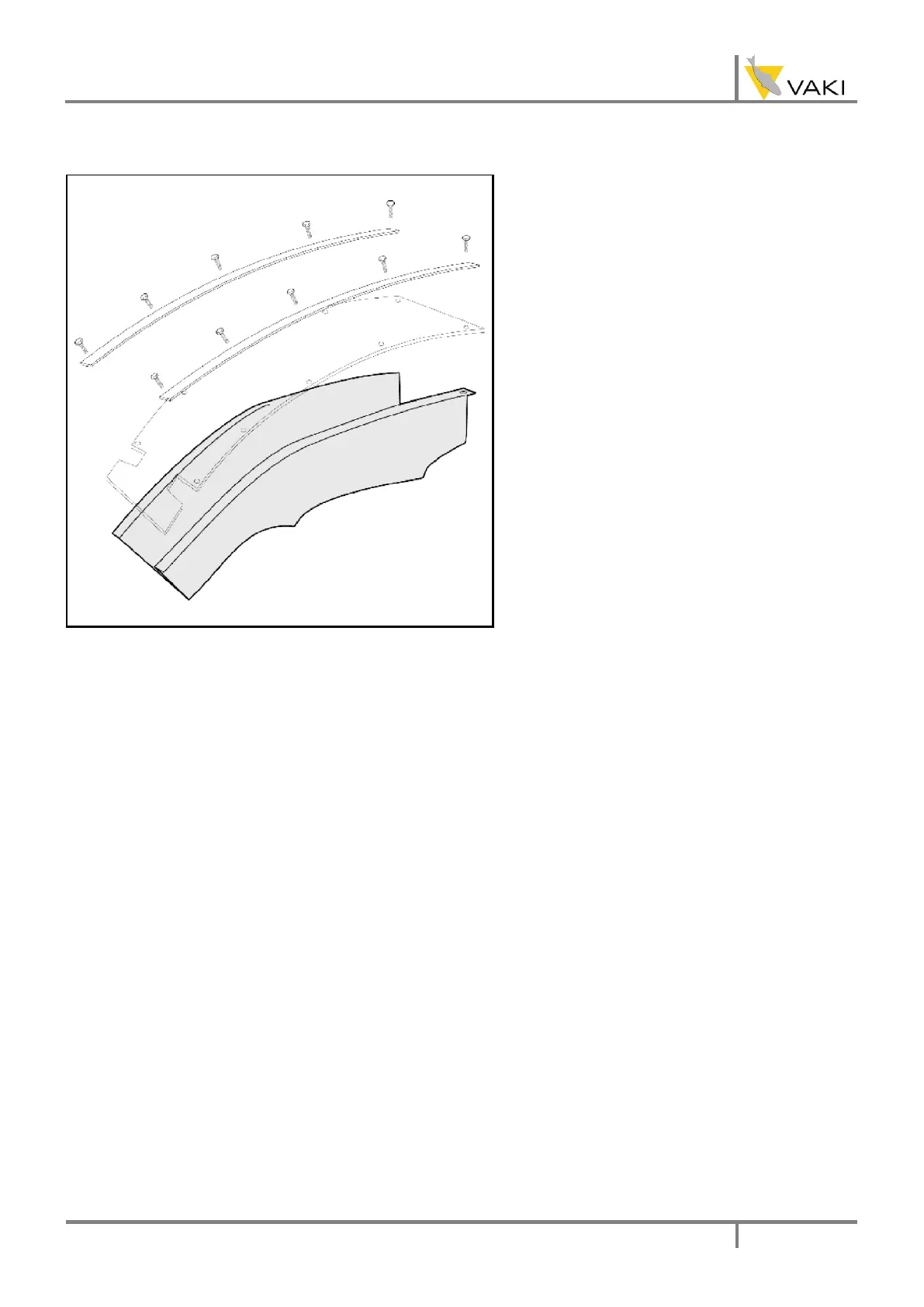

2.2.1 Attaching the PVC plastic cover
Prepare 10 M5 bolts and
nuts, two strips, the
plastic cover on top of
the channel, aligning the
holes in the cover and
the channel, then place
the strips on the top of
the cover aligning the
holes and put all the M5
bolts in before
tightening fully with the
M5 nuts on the other
side.
2.2.2 Fitting the clamp
See chapter 2.1.4 Fitting the clamp.
2.2.3 Installing the scanner unit
See chapter 2.1.5 Installing the scanner unit.
