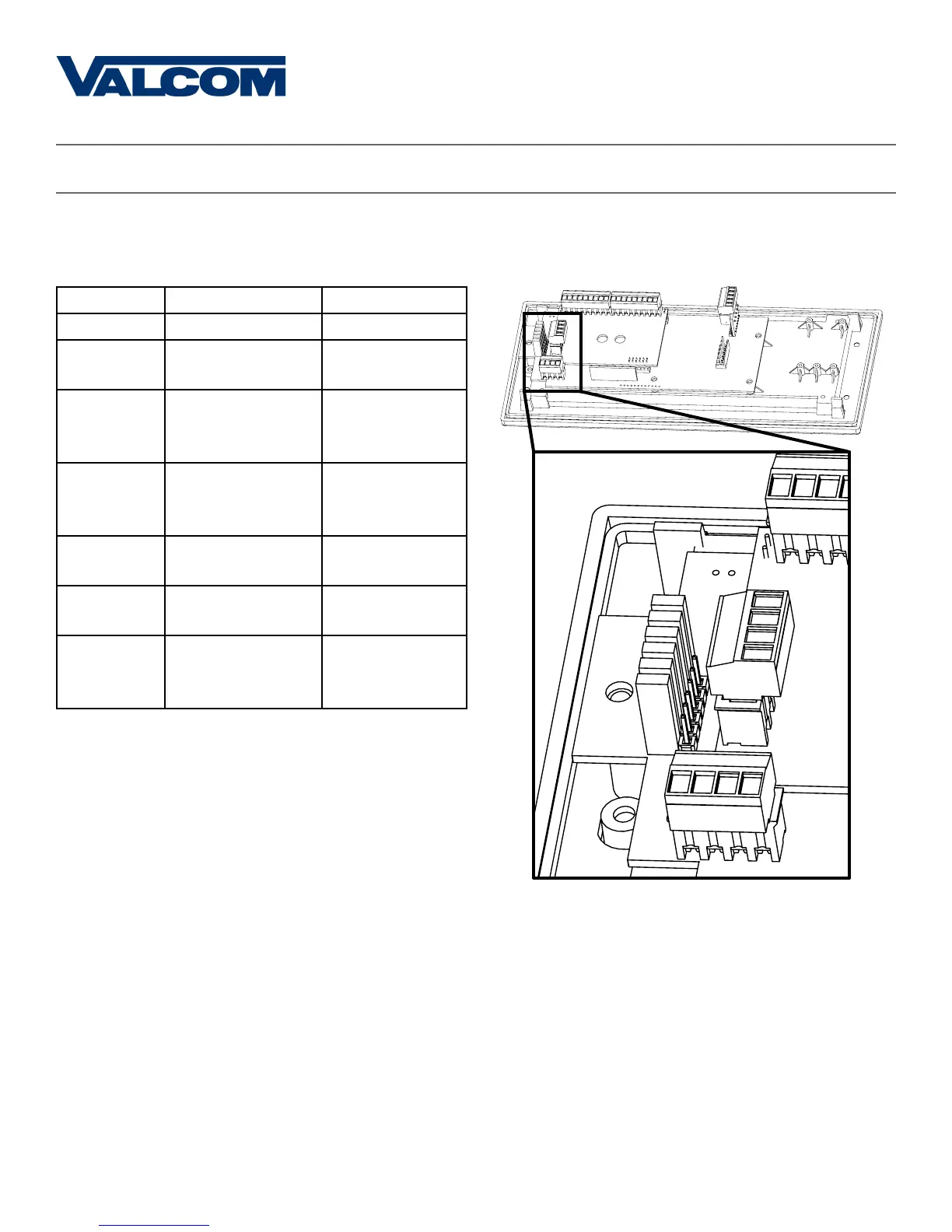

Adjustable Jumper Settings
Every version of the digital clock contains a set of jumpers which can be moved to change a particular
setting. The functions and positions of each jumper are described below:
Left Position Right Position
Pins 1 & 2 Pins 2 & 3
Jumper 1 12 Hour Time
(Default)
24 Hour Time
Jumper 2 Display High
Brightness
(Default)
Display Low
Brightness
Jumper 3 Display Time Only
(Default)
Alternate display
between Time
and Date
Jumper 4 DO NOT TOUCH
(Default)
DO NOT TOUCH
Jumper 5 DO NOT TOUCH
(Default)
DO NOT TOUCH
Jumper 6 Clock accepts
sync-wire inputs
(Default)
DO NOT USE
To manually enable or disable the first three jumpers, refer to the section of this manual labeled “Manual
Controls” and refer to Setting 15.
1
2
4
3
5
6
