CONTROLLERS
The SBU400 and SBU410 controllers are systems designed to control HVAC
components (heating, ventilation, cooling). In buses, for example, for ceiling air
conditioning systems, it is composed of control parts installed on the panel
(control device such as human-machine interface) and a relay board.
Controllers are available in basic (SBU400) and full (SBU410) versions. In the
basic version, the control element allows the user to control the air conditioning
system with cooling functions.
The full version has an optional heating function in addition to those standard
ones provided and can be cooling and ventilation. The controller for cooling
function can operate automatically. For this, the user simply has to set the
desired room temperature and turn on the air conditioner.
The operation described above applies to the following air conditioning systems:
SBU400:
• Air conditioning system (AC)
SBU410:
• air conditioning system (AC)
• with cooling and ventilation (VAC) function
• with cooling and heating (HAC) function
• with heating, ventilation and air conditioning (HVAC) function
The SBU400 and SBU410 AC controllers have basically the same components.
See below Functions and description.

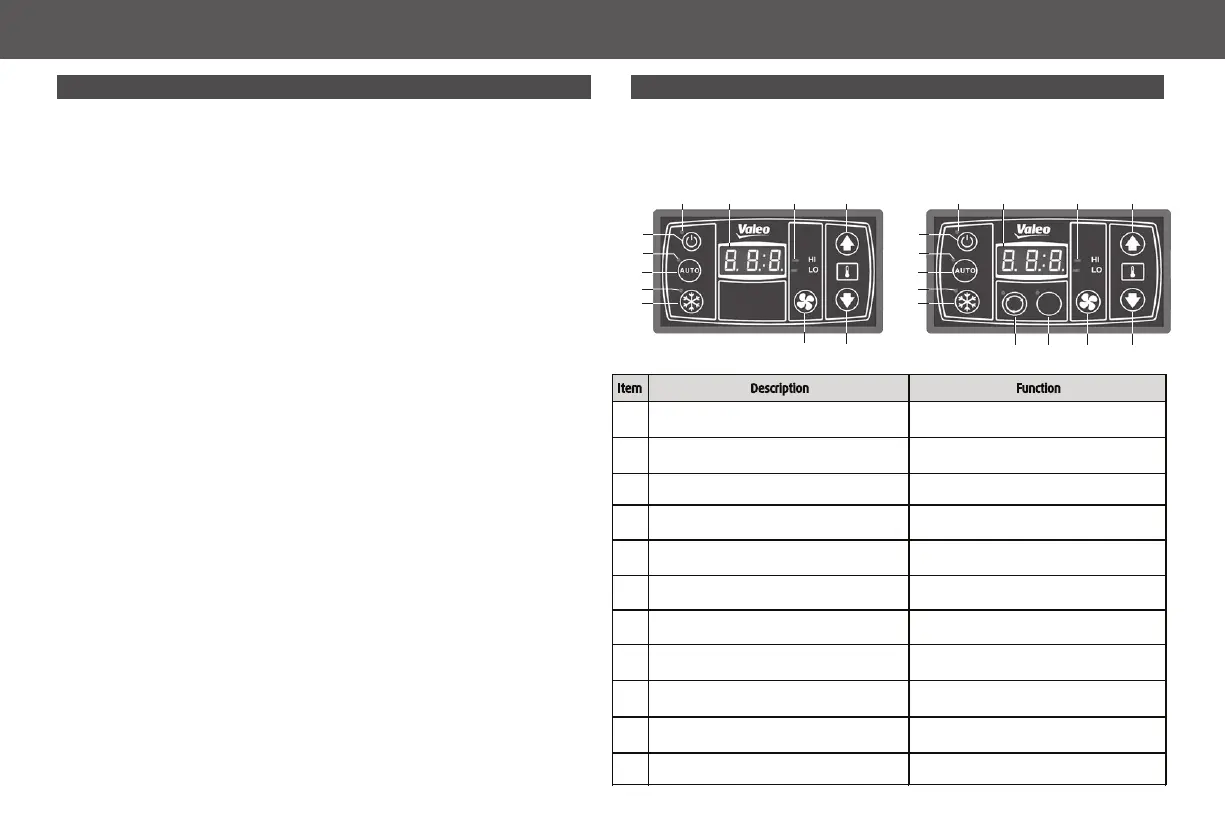

1- SBU 400-410 Controllers 1.1- Control Panel Description
SBU400 SBU410
1
3
9
8
5
4
2
6
7
2
2
3
5
4
2
2
2
1
9
8
6
7
10 11
Item Description Function
1 Display
Current room temperature and an error
warning.
2 Status light
It shows an enabled function
(red status light on means it is enabled).
3 On/off button ON and OFF switch from control panel.
4 Auto button
Evaporator Fan Automatic Start Up.
5 AC button
Enable or Disable the cooling function.
6
Evaporator fan speed button Evaporator Fan Manual Speed Control.
7
Evaporator fan speed display
It shows the current speed of evaporator fans.
8
Temperature desired UP (set-point) button
You can INCREASE the right temperature you
want to leave into the room.
9
Temperature desired DOWN (set-point) button
You can DECREASE the right temperature you
want to leave into the room.
10 Ventilation button
On and OFF the recirculation function.
11 Free button Free.
CC 185T - CC 205T - CC 205W
10
