EQUIPMENT DESCRIPTION

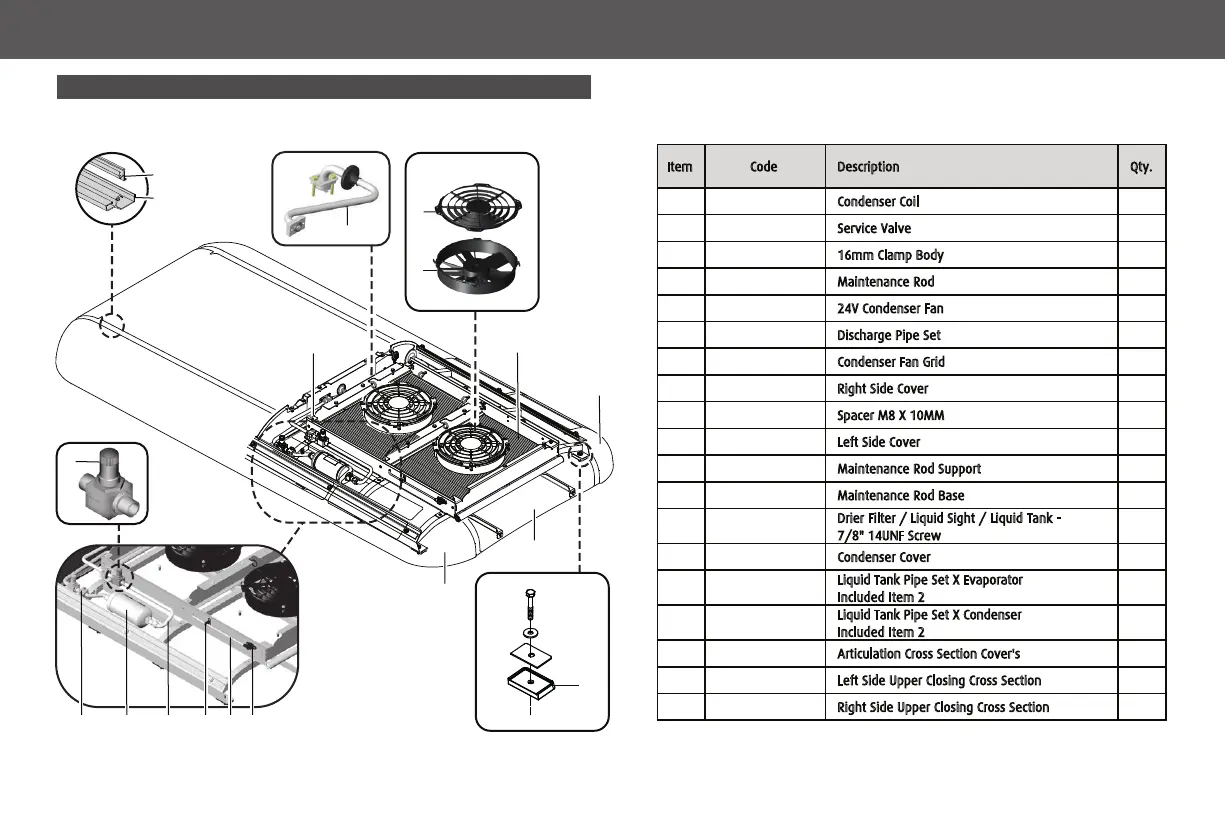

2.2- Condenser Components CC185T - CC205T
NOTE: visit www.reparts.com.br to consult the complet parts catalog.
7
5
18
17
1
10
9
2
12
3 41113 15 12
8
14
6
Item Code Description Qty.
1 006-00185-000 Condenser Coil 1
2 012-00117-000 Service Valve
1
3 017-00342-000 16mm Clamp Body
2
4 018-00039-000 Maintenance Rod
2
5 021-00015-000 24V Condenser Fan
2
6 031-00415-000 Discharge Pipe Set
1
7 034-00111-000 Condenser Fan Grid
2
8 034-00183-000 Right Side Cover
1
9 034-00310-000 Spacer M8 X 10MM
6
10 034-00332-000 Left Side Cover
1
11 034-00356-000 Maintenance Rod Support
2
12 034-00357-000 Maintenance Rod Base
2
13 038-00034-000
Drier Filter / Liquid Sight / Liquid Tank -
7/8" 14UNF Screw
1
14 040-01973-001 Condenser Cover
1
15 042-01107-001
Liquid Tank Pipe Set X Evaporator
Included Item 2
1
16 042-01108-000
Liquid Tank Pipe Set X Condenser
Included Item 2
1
17 045-00040-000 Articulation Cross Section Cover's
2
18 045-00041-000 Left Side Upper Closing Cross Section
1
18 045-00043-000 Right Side Upper Closing Cross Section
1
CC 185T - CC 205T - CC 205W
18
