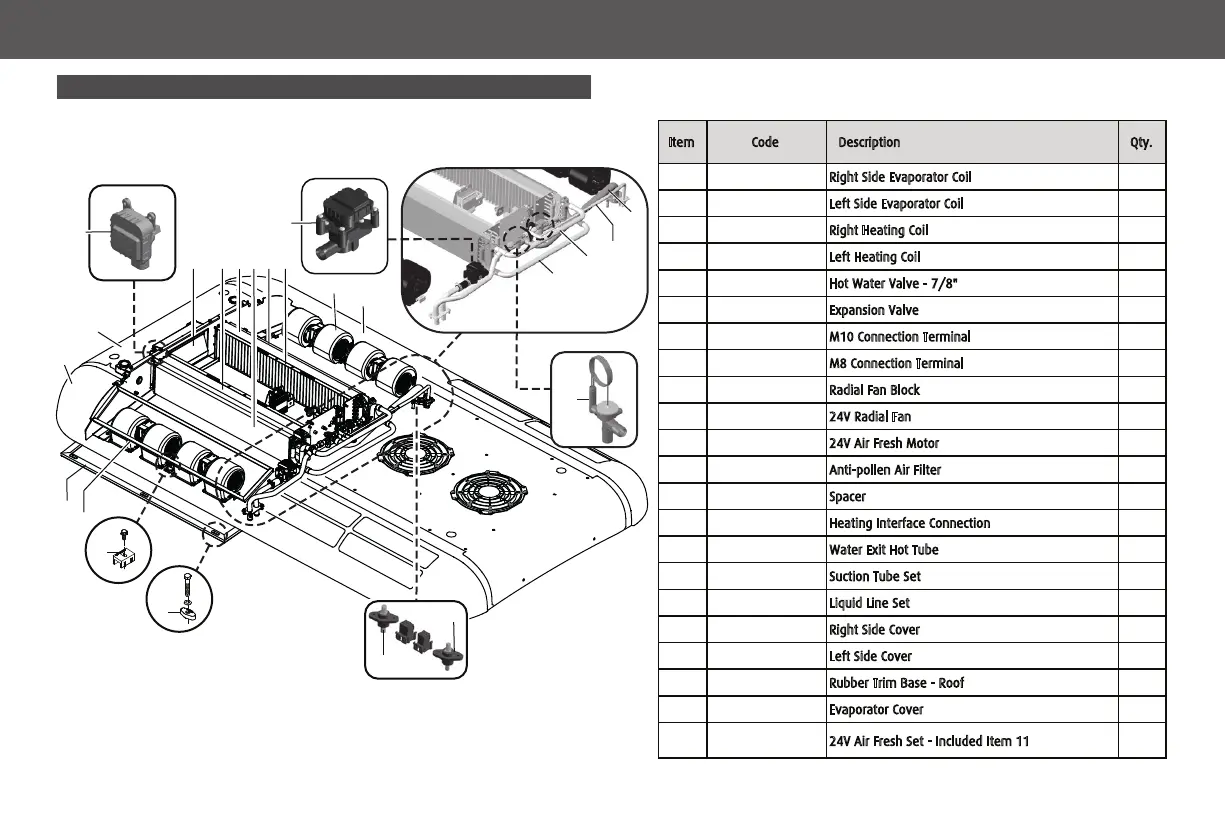

2.1.1- Evaporator Components CC205W
NOTE: visit www.reparts.com.br to consult the complet parts catalog.
10
5
15
4
21
17
16
14
6
18
19
22
11
9
20
13
8
7
1 32 4 12
Item Code Description Qty.
1 006-00159-000 Right Side Evaporator Coil 1
2 006-00160-000 Left Side Evaporator Coil
1
3 006-00161-000 Right Heating Coil
1
4 006-00162-000 Left Heating Coil
1
5 012-00055-000 Hot Water Valve - 7/8"
1
6 012-00081-000 Expansion Valve
2
7 015-00102-000 M10 Connection Terminal
1
8 015-00103-000 M8 Connection Terminal
1
9 017-00309-000 Radial Fan Block
8
10 021-00014-000 24V Radial Fan
4
11 022-00010-000 24V Air Fresh Motor
1
12 024-00006-000 Anti-pollen Air Filter
1
13 028-00061-000 Spacer
6
14 031-00394-001 Heating Interface Connection
1
15 031-00425-000 Water Exit Hot Tube
1
16 031-00547-000 Suction Tube Set
1
17 031-00580-000 Liquid Line Set
1
18 034-00183-000 Right Side Cover
1
19 034-00332-000 Left Side Cover
1
20 035-00304-000 Rubber Trim Base - Roof
1
21 040-02732-000 Evaporator Cover
1
22 041-01445-000 24V Air Fresh Set - Included Item 11
1
CC 185T - CC 205T - CC 205W
