EQUIPMENT DESCRIPTION CC 305
2.3- Compressor Components

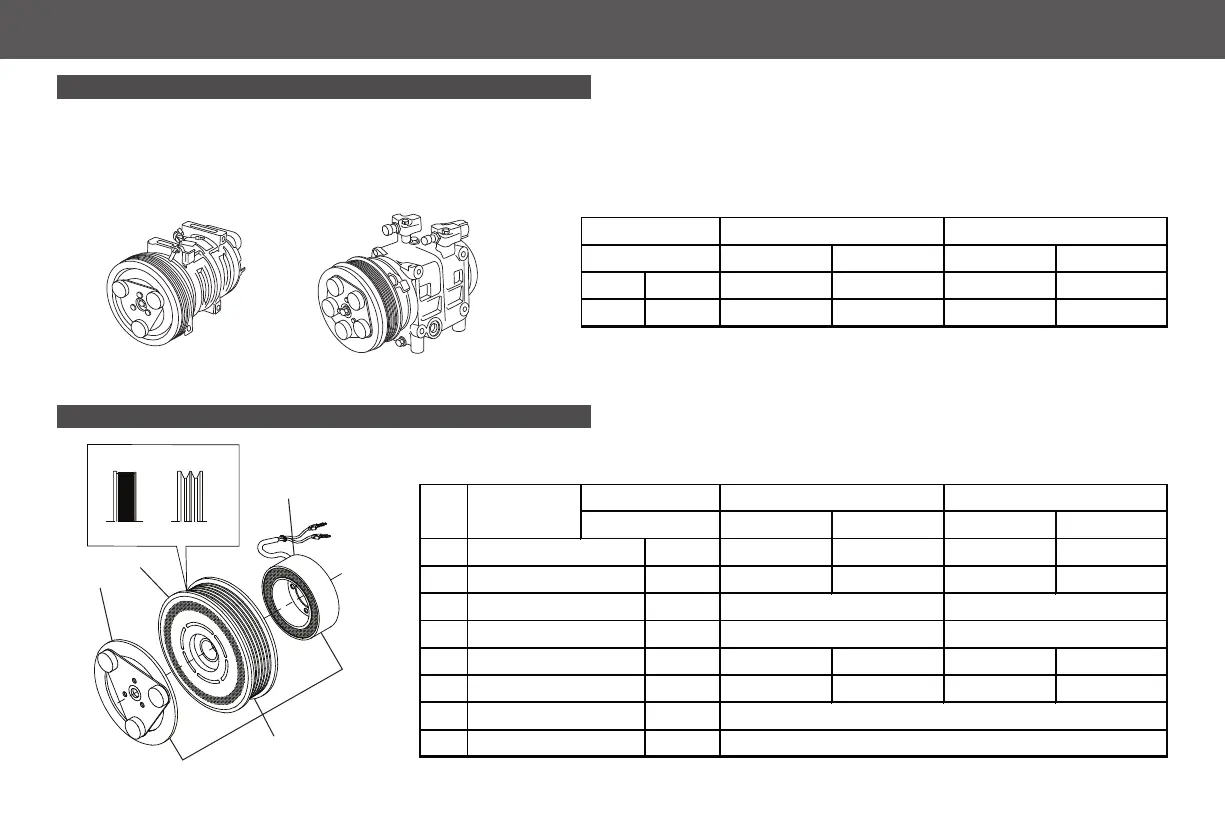

2.3.1- Electromagnetic Clutch
NOTE: visit www.reparts.com.br to consult the complet parts catalog.
Reciprocating Compressor Axial Pistons
SP31SP21
8PK 2A 8PK 2A
TM21 215CM 014-00147-000 014-00133-000 014-00132-000 014-00137-000
TM31 313CM 014-00152-000 014-00094-000 014-00139-000 014-00093-000
VOLTAGE 12V 24V
PULLEY MODEL
PULLEY MODELS
8PK
2A
1
2
4
3
8PK 2A 8PK 2A
1 TM21 029-00090-000 029-00092-000 029-00094-000 029-00093-000
1 TM31 029-00091-000 029-00058-000 029-00085-000 029-00057-000
2 TM21
2 TM31
3 TM21 030-00067-000 030-00068-000 030-00067-000 030-00068-000
3 TM31 030-00078-000 030-00060-000 030-00078-000 030-00060-000
4 TM21
4 TM31
Clutch Friction Disc 029-00054-000
Clutch Friction Disc 029-00070-000
Clutch Magnet 029-00069-000 029-00082-000
Compressor Pulley
Compressor Pulley
Magnetic Clutch
Magnetic Clutch
Clutch Magnet 029-00083-000 029-00089-000
ÍTEM DESCRIPTION
VOLTAGE 12V 24V
PULLEY MODEL
CC 185T - CC 205T - CC 205W
