In addition there is arranged a connector on the front of the metal detector
(Fig. 2-3/5) which is normally closed by a protection cap. This connector has
three functions:
a) Connecting a headset
b) Data input for upgrading the firmware of the metal detector by means of a
Personal Computer and a serial port interface.
c) Data output for computer-aided detection.
The hand grip (Fig. 2-3/1) is also used as operation element and is
permanently fixed to the detectors electronics unit.

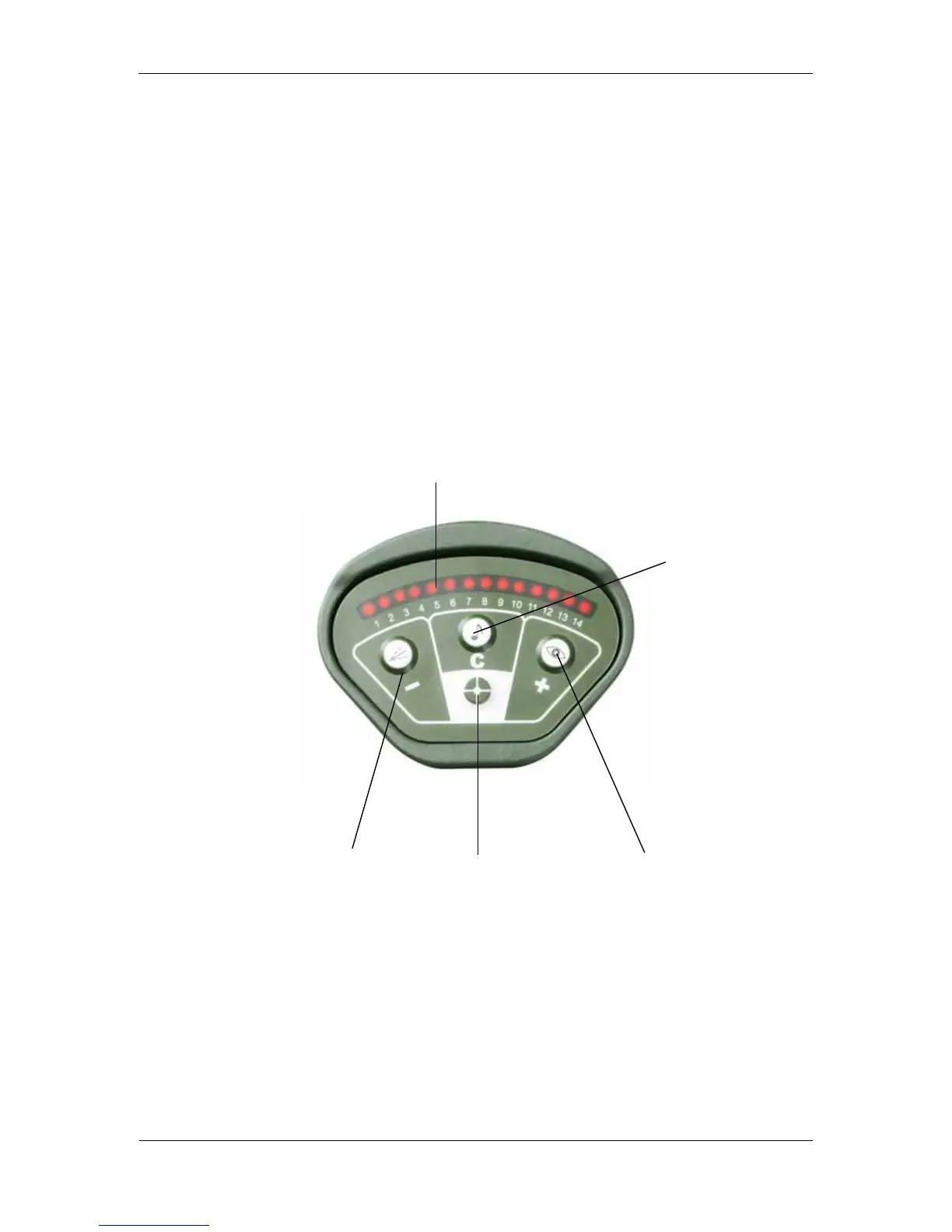

Fig. 2-4 Operation elements in the hand-grip
LED Display – 14 LEDs
for metal alarm, battery check, sensitivity setting
reducing
sensitivity or
volume of
audio signal
increasing
sensitivity or
volume of
audio signal
fast compensation
(in program „normal“
and „mineral“)
SOIL compensation
(in program „mineral“)
PINPOINT
button
