Vallon VMH3CS - 3 Operation

13
Metal Detector VMH3CS – Operation Manual
© 2007 Vallon GmbH, D-72800 Eningen/Germany
3. OPERATION
1. Remove the detector electronic from the field backpack.
2. Plug-in the oval search head in the desired position and screw on
tightly.

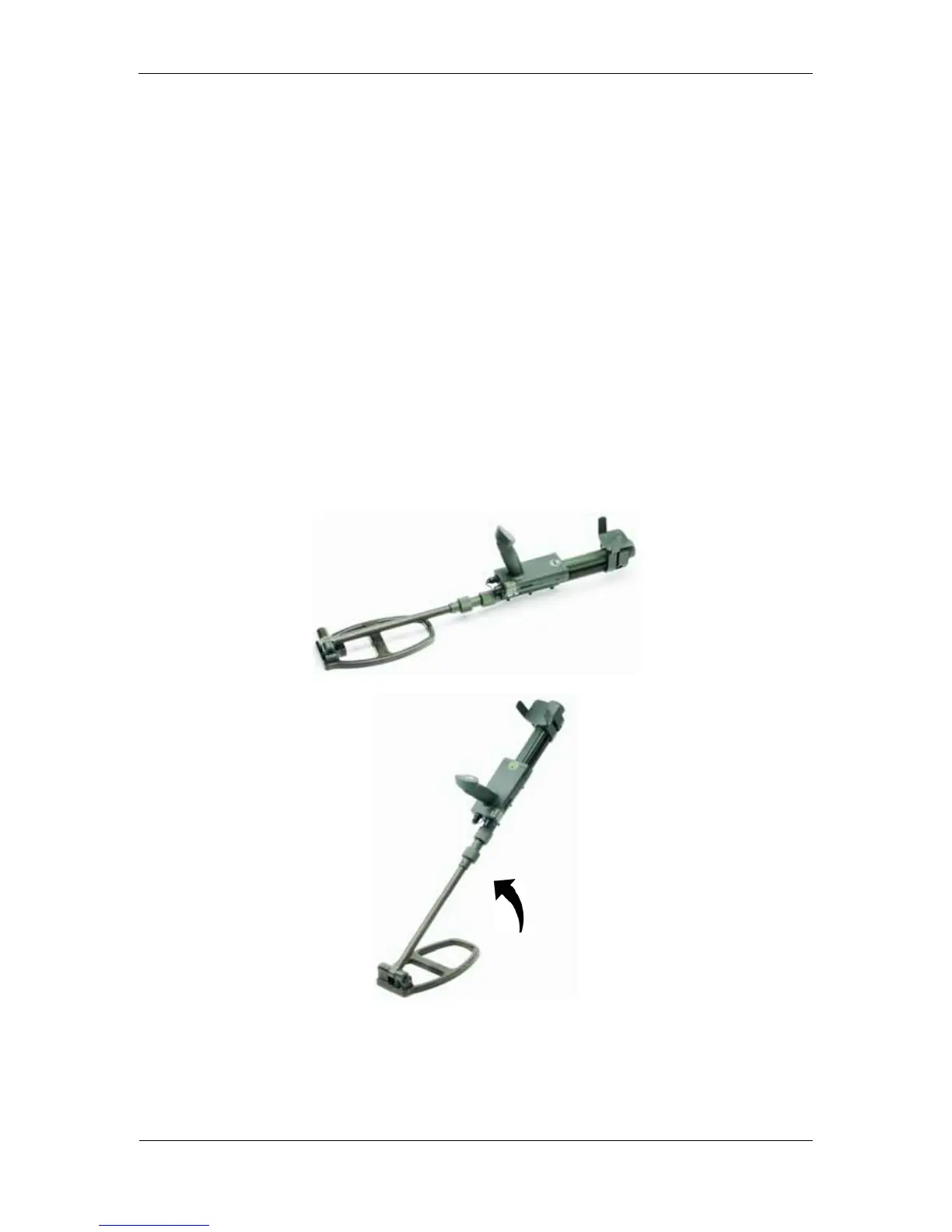

Fig. 3.1 Detection work in kneeling or proning position.
Fig. 3.2 Detection work in stand-up position.
3. Insert the batteries.
4. Tilt the search head to the desired angle.
5. Adjust the length of the telescopic pole.
6. Switch ON and search.
Proning
Kneeling
Fig. 3-1 Position for detection work in proning or kneeling
