2.1 Detector Electronics
1 2 3 4
5
6 7 8

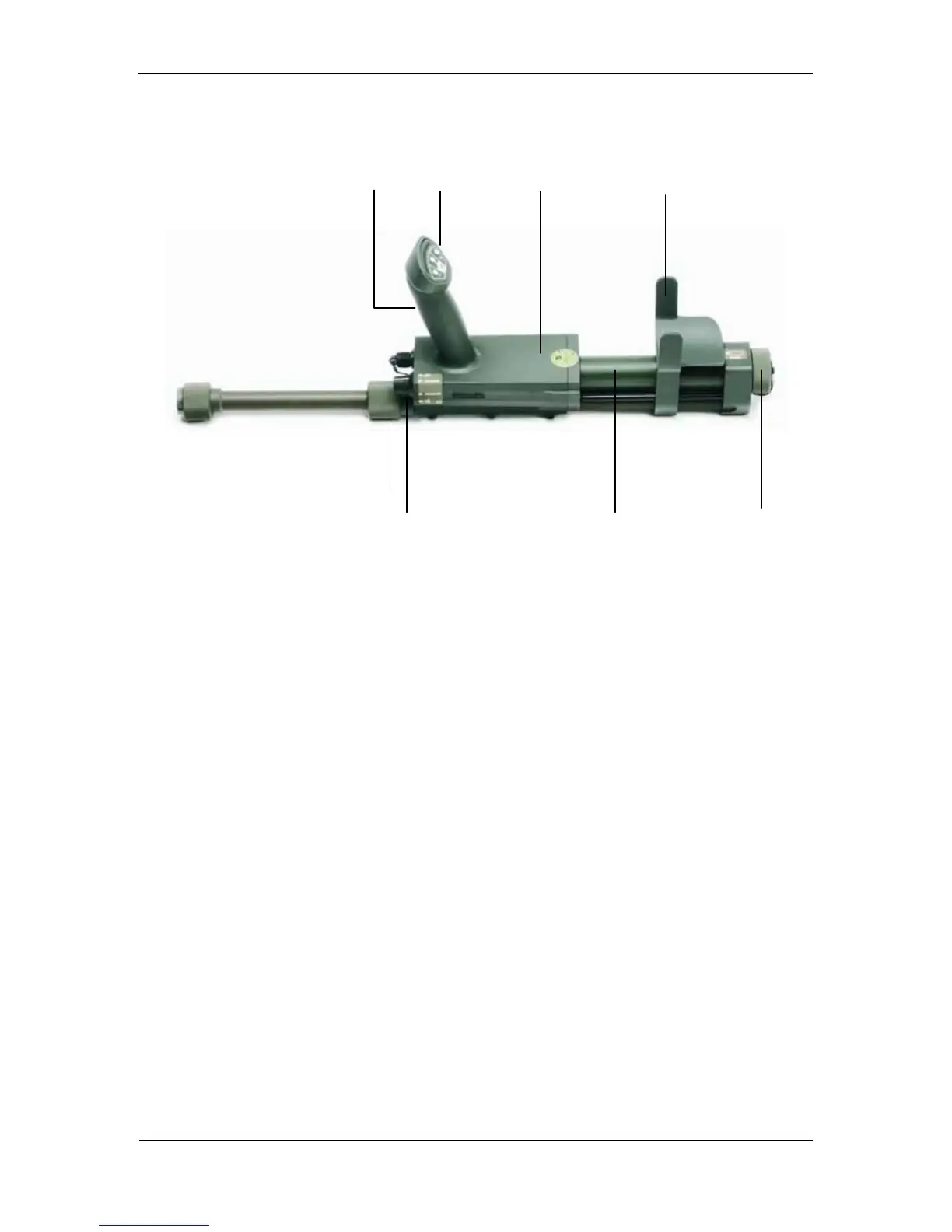

Fig. 2-3 Detector Electronics
(1) Hand grip (6) Mode selector
(2) Indication and operation elements (7) Battery compartment
(3) Loudspeaker (8) Lock of
(4) Arm-rest battery compartment
(5) Connector
The detector electronics (Fig. 2-3) contains a battery compartment (Fig. 2-3/7)
for 3 batteries (alkaline mono cells, or Ni-MH-accumulators), which can be
replaced easily.
The distance between arm-rest (Fig. 2-3/4) and hand grip (Fig. 2-3/1) can
continuously be adjusted according to the operator’s height.
The detector is switched ON and OFF by means of the mode selector (Fig. 2-
3/6) on the front panel. For optimal detection two different soil programs can
be selected.
