13

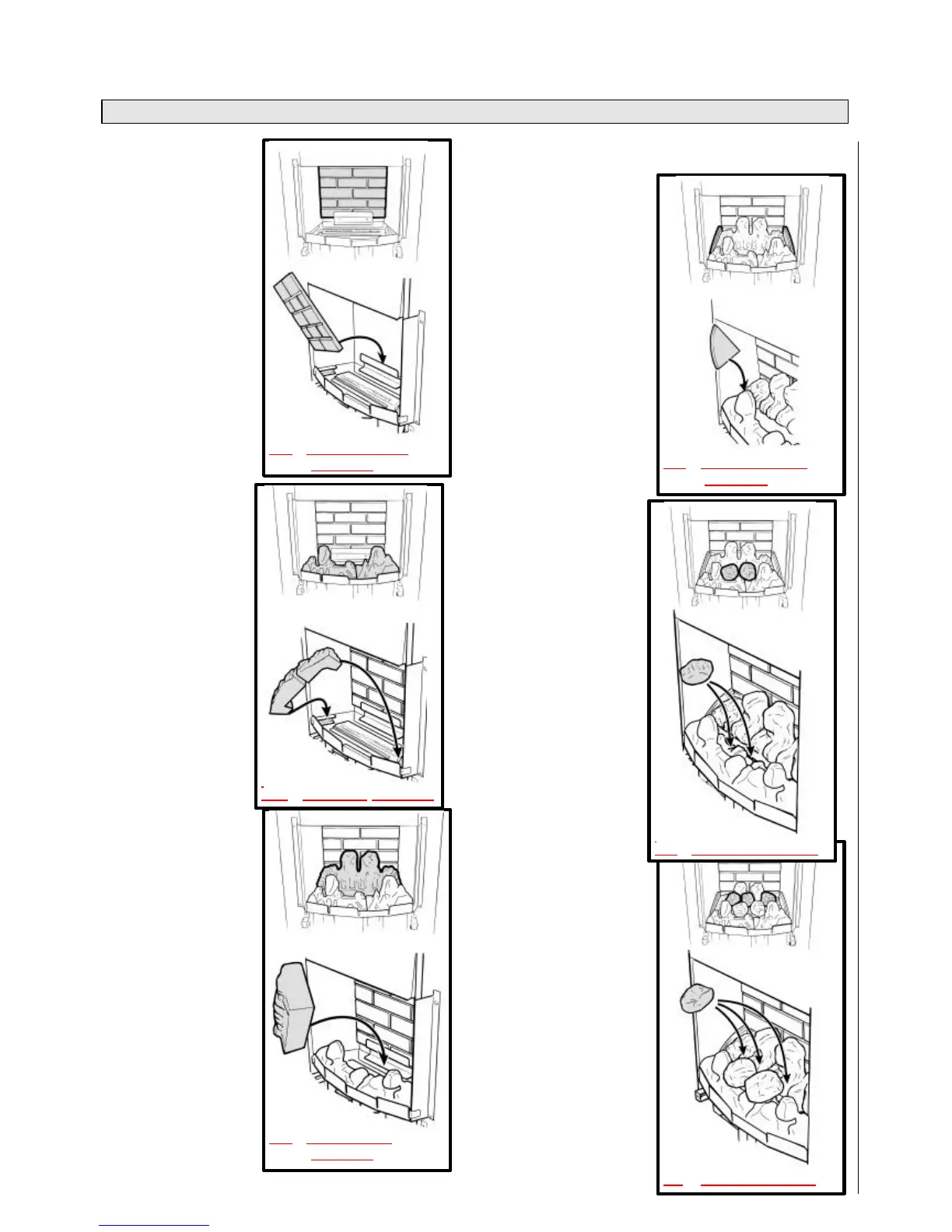

9. CERAMIC COALS & WALLS INSTALLATION
9.1 With its
feather edge at the top,
place the ceramic rear
wall into the channel at
the back of the fire box.
Push the wall flat against
the rear of the fire box.
(See figure 17).
9.2 Place the two
halves of the front base
coal in the burner
compartment so that
they rest on the ledges
at the sides and front.
Pull the coals forward so
that they are
immediately behind the
front rim of the burner
compartment (See fig.
18).
9.3 Place the rear
base coal in the burner
compartment behind the
front coal. Its rear face
should touch the rear
ceramic wall (See figure
19).
9.4 The ceramic
side walls are marked at
the rear bottom corners
“L” (Left side) & “R”
(Right side). Place the
side walls against the
sides of the fire box and
in the recesses at the
sides of the base coals.
The markings “L” & “R”
should be at the back
bottom corners and
facing to the centre of the
back of the firebox (See
figure 20).
9.5 Install the 5
loose coals as follows.
The smooth surfaces of
the coals should be at
the bottom and back.
9.5.1 Select the two
largest coals. Place them
in the central two valleys
of the front coal (See
figure 21).
9.5.2 Place the three
remaining coals behind
and approximately
midway between each of
the coals in the front row
(See figure 22).
Fig 22 Middle row of coals
Fig. 21 Front row inner coals
Fig. 19 Rear base coal
installation
Fig. 18 Front coal installation
Fig. 17 Ceramic rear wall
installation
Fig. 20 Ceramic side walls
installation
