Valor LINEAR SERIES User Manual

3

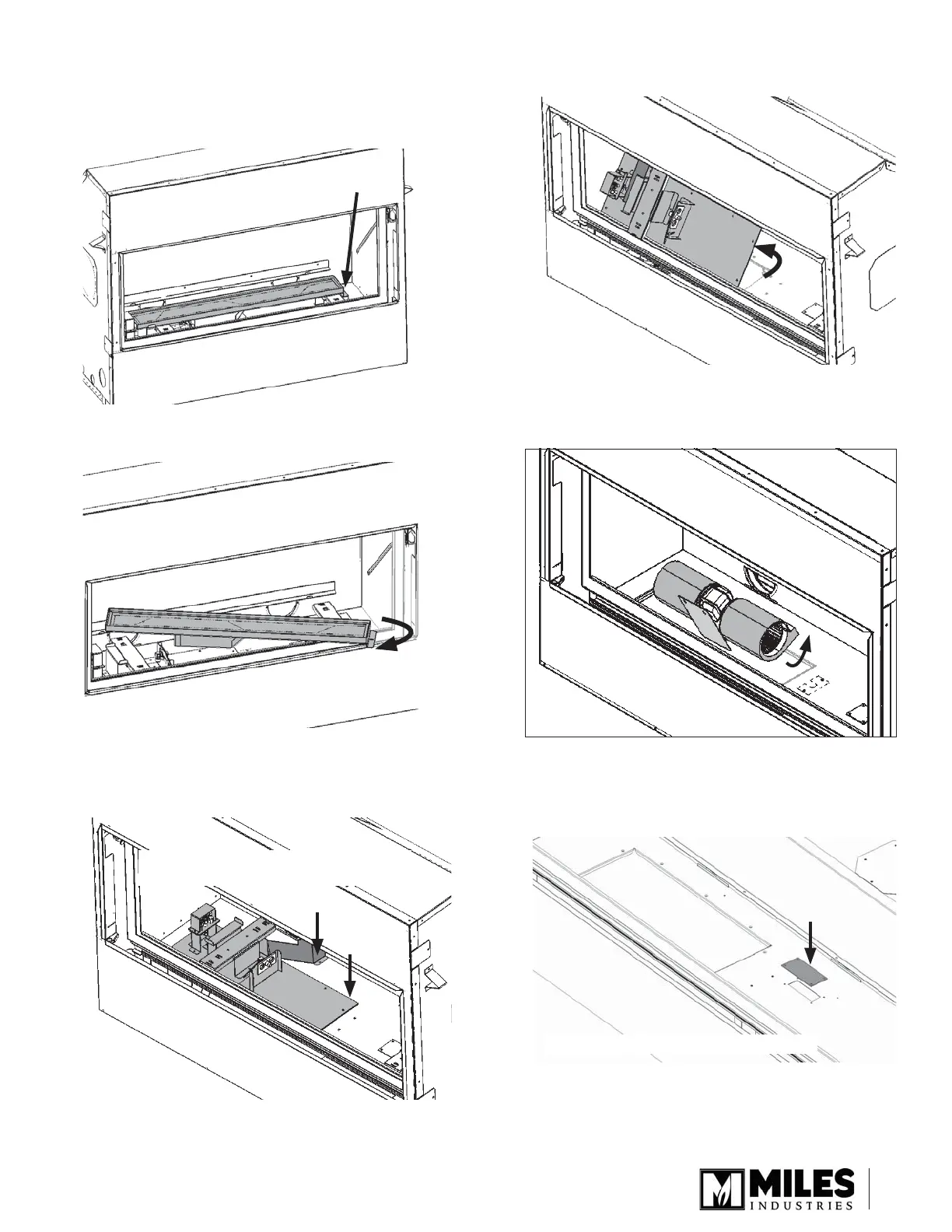

Remove screw
Lift burner module out of fi rebox
Rotate fan into position
Remove burner from fi rebox
Install the fan
To gain access to the fan area
1. Remove the screw at right end of burner.
2. Slide burner to the right to disengage it from the
orifi ce and lift it out of the fi rebox.
3. Remove the screw maintaining the air defl ector to
the appliance bottom panel. Then, remove the 10
screws around the perimeter of the burner module
plate.
4. Rotate the rear edge of the burner module upwards
and remove the module plate from the fi rebox.
To install the fan
1. Insert the fan through the opening in the fl oor of the
fi rebox and rotate into position.
1700J and 1800J appliances: Remove the plate
to the right of the opening to access fi xing points
for the fan (4 screws).
Remove 1 screw holding air defl ector and
10 screws holding burner plate
Remove fan fi xing access plate (4 screws)
