Tips
• Wear gloves or ensure to manipulate the cast iron
pieces with clean hands to avoid any stain.
• Remove the MF28 window and all items inside
the appliance before installing to lighten it.
Basic Installation Sequence
• Convert vent outlet if necessary.
• Assemble front engine brackets to side panels
• Assemble rear panel to engine.
• Assemble side panel to engine.
• Assemble lower bracket to engine.
• Assemble other side panel to engine.
• Place appliance in fi nal position.
• Install heat shield to engine.
• Place cast top panel on engine.
• Rear outlet only: Install cast vent cover.
• Top outlet only: Install vent collar.
• Level appliance with leveling screws.
• Install inlay panels.
• Install access door.
• Prepare appliance for venting.
• Vent and gas fi t heater.
• Install fan (blower) if used.
• Install fuel bed, check appliance and complete
installation as per instructions supplied with engine.
• Install barrier screen on back of front
• Hook front and barrier screen.
Kits Contents
MFCS05 Madrona Modern Stove
• Vent collar
• Heat Shield
• Rear panel
• Left side assembly
• Left side front engine bracket
• Right side assembly
• Right side front engine bracket
• Inlay panels (2)
• Lower bracket
• Access door
• Hardware pack
• Cast front
• Barrier screen
• Cast top panel
• Cast vent cover

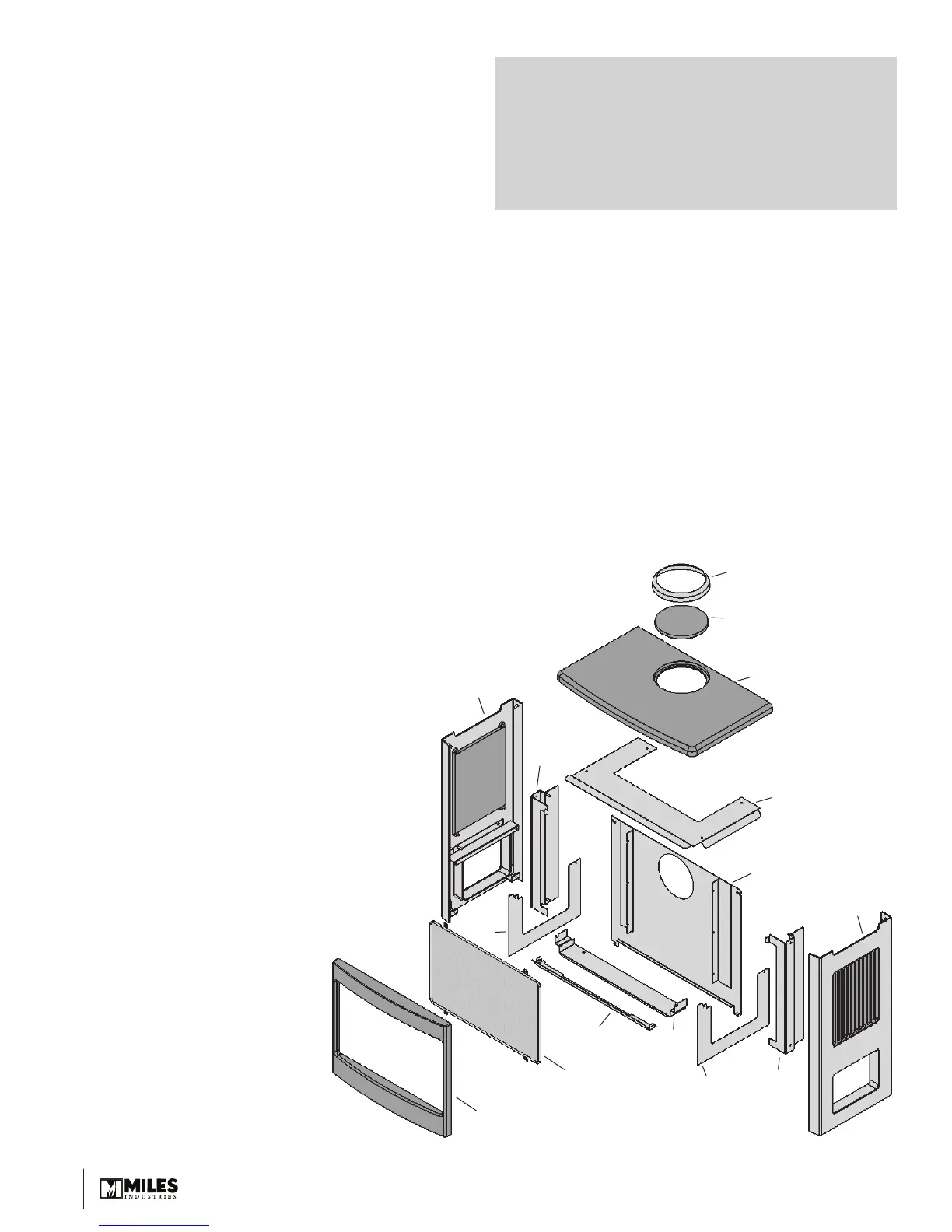

Lower
bracket
Rear panel
Inlay
panel
Inlay
panel
RH Front
engine
bracket
LH Front
engine
bracket
Cast front
Barrier screen
Cast top panel
Heat shield
Vent collar
Cast vent cover
Access
door
LH side
assembly
RH side
assembly
