Valor Madrona - Repair Parts List

8
Repair Parts List
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1
Tel. 604-984-3496 Fax 604-984-0246
www.valorfi replaces.com
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.

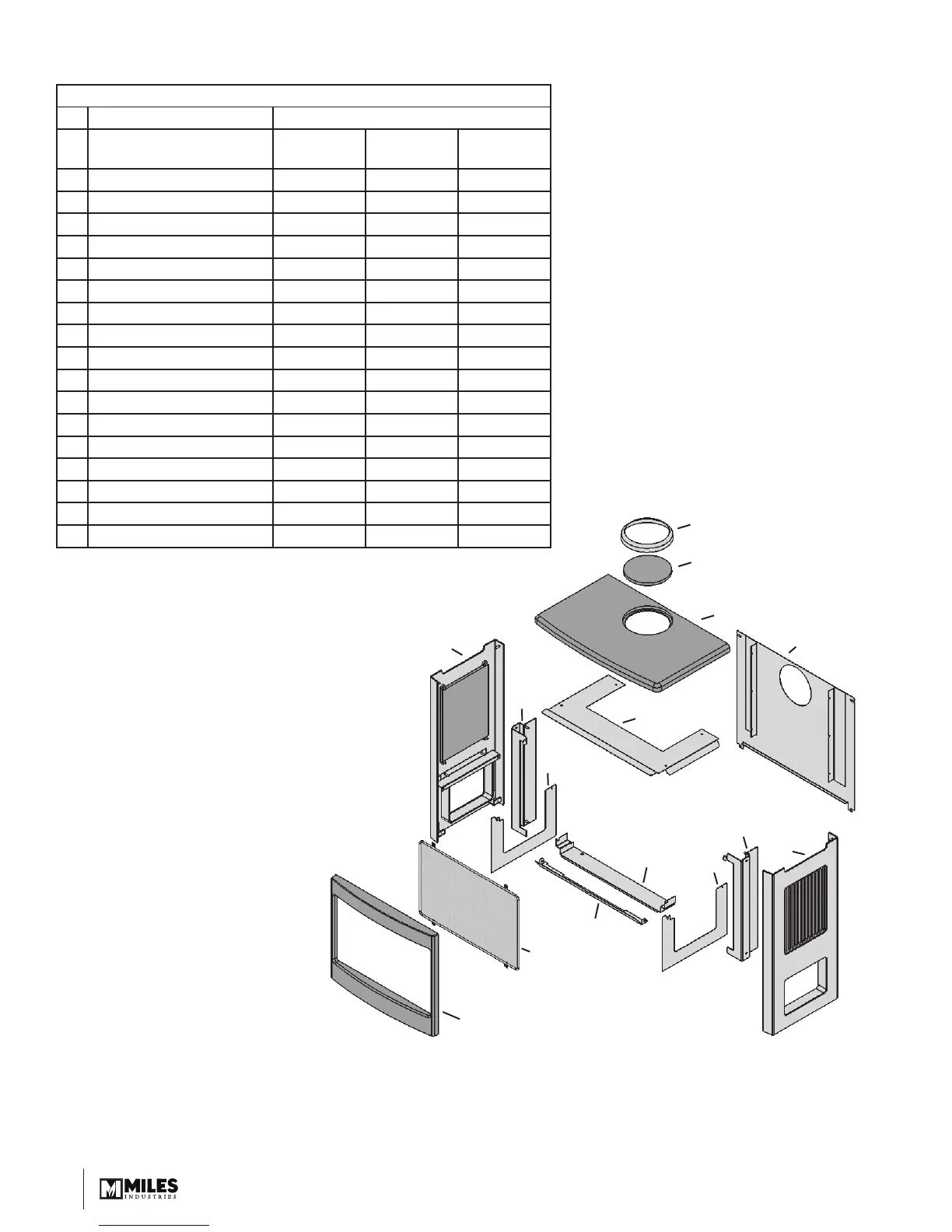

MFCS05—Madrona Modern Stove
Description Part Numbers
Pewter (PW)
Almond White
(AW)
Black (BK)
1 Spun vent collar 4006568AZ 4006568AZ 4006568AZ
2 Vent cast iron cover 4006296AZ 4006296AZ 4006296AZ
3 Cast iron top panel 4006049AZ 4006049AZ 4006049AZ
4 Heat shield 4006061 4006061 4006061
5 Rear panel 4006077AZ 4006077AZ 4006077AZ
6 LH side assembly 4006073PW 4006073AW 4006073CH
7 LH front engine bracket 4006057 4006057 4006057
8 Inlay (2) 4006143PW 4006143AW 4006143CH
9 RH side assembly 4006075PW 4006075AW 4006075CH
10 RH front engine bracket 4006058 4006058 4006058
11 Lower bracket 4006067 4006067 4006067
12 Access door 4006060AZ 4006060AZ 4006060AZ
13 Barrier screen 4007217 4007217 4007217
14 Cast iron front 4006046 4006046 4006046
#8-32x1/2” pan h screws (4)
4001885 4001885 4001885
1/4” - 20 hex steel nut (12)
4006290 4006290 4006290
1/4” spring steel washer (12)
4006292 4006292 4006292
1
2
3
4
6
7
8
8
10
9
5
11
12
14
13
