Rear Stove Panel
6. Unpack the appliance.
7. Remove the window from the appliance and the
content that is stored inside the appliance.
8. Pull out the engine and rest it carefully on the
ground. From the bottom of the packaging take the
pads on which the engine was sitting and lay them
on the fl oor. Put the engine back on those pads.
9. If you need to convert from a top outlet to a rear
outlet, do it now.
10. On the rear corners of the engine, on each side,
back up 3 screws.

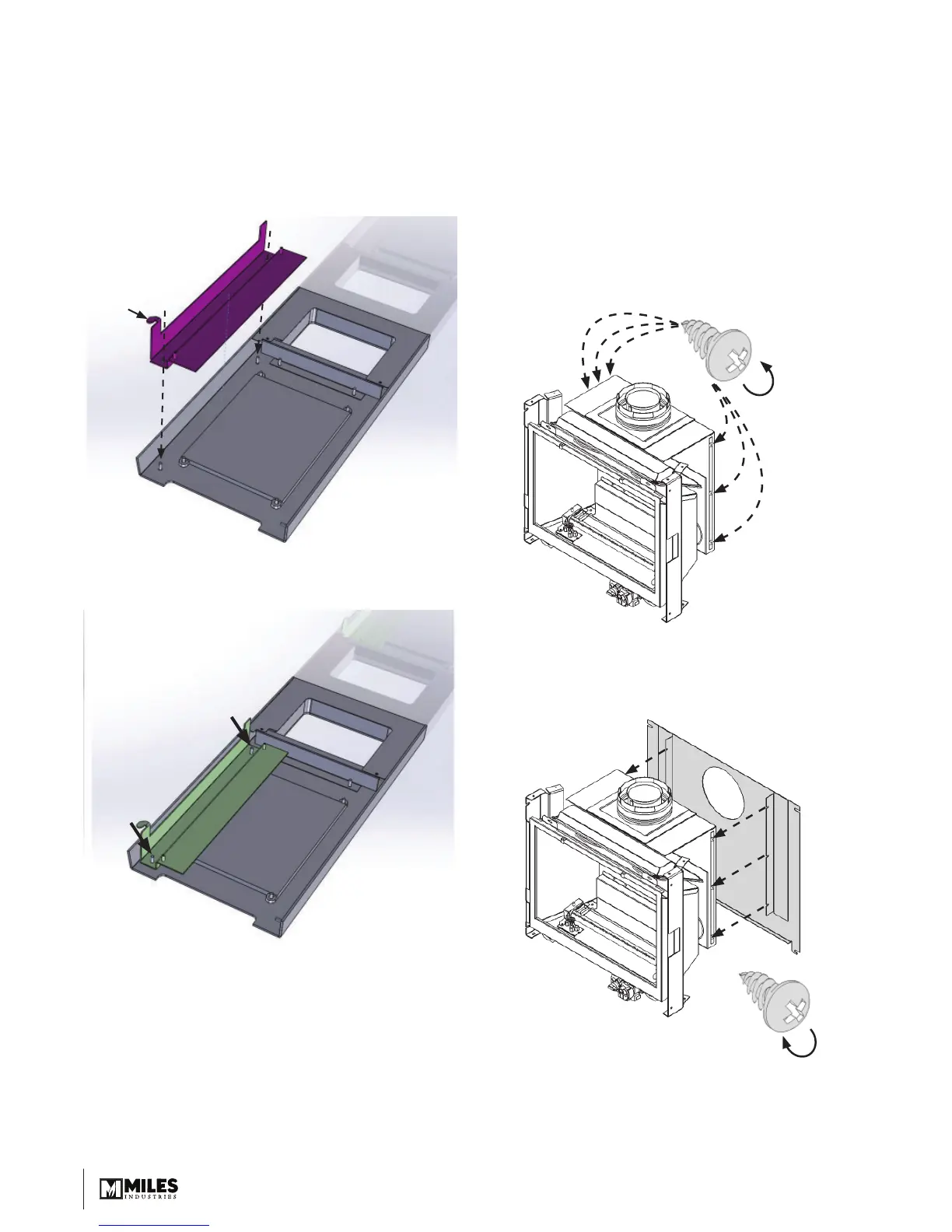

11. Fit the stove casing’s rear panel to the back of
the engine sliding it under the backed up screws.
Secure the panel tightening the screws.
Installation
Front Engine Brackets
1. Unpack the stove casing.
2. Locate the right hand front engine bracket.
3. On the right hand panel, install the engine bracket.
The bracket’s hook goes at the top of the side
panel.
4. Secure to the side panel with two nuts and steel
washers.
5. Repeat for the other side panel.
Front
Top
Rear
Hook
To Next Page
