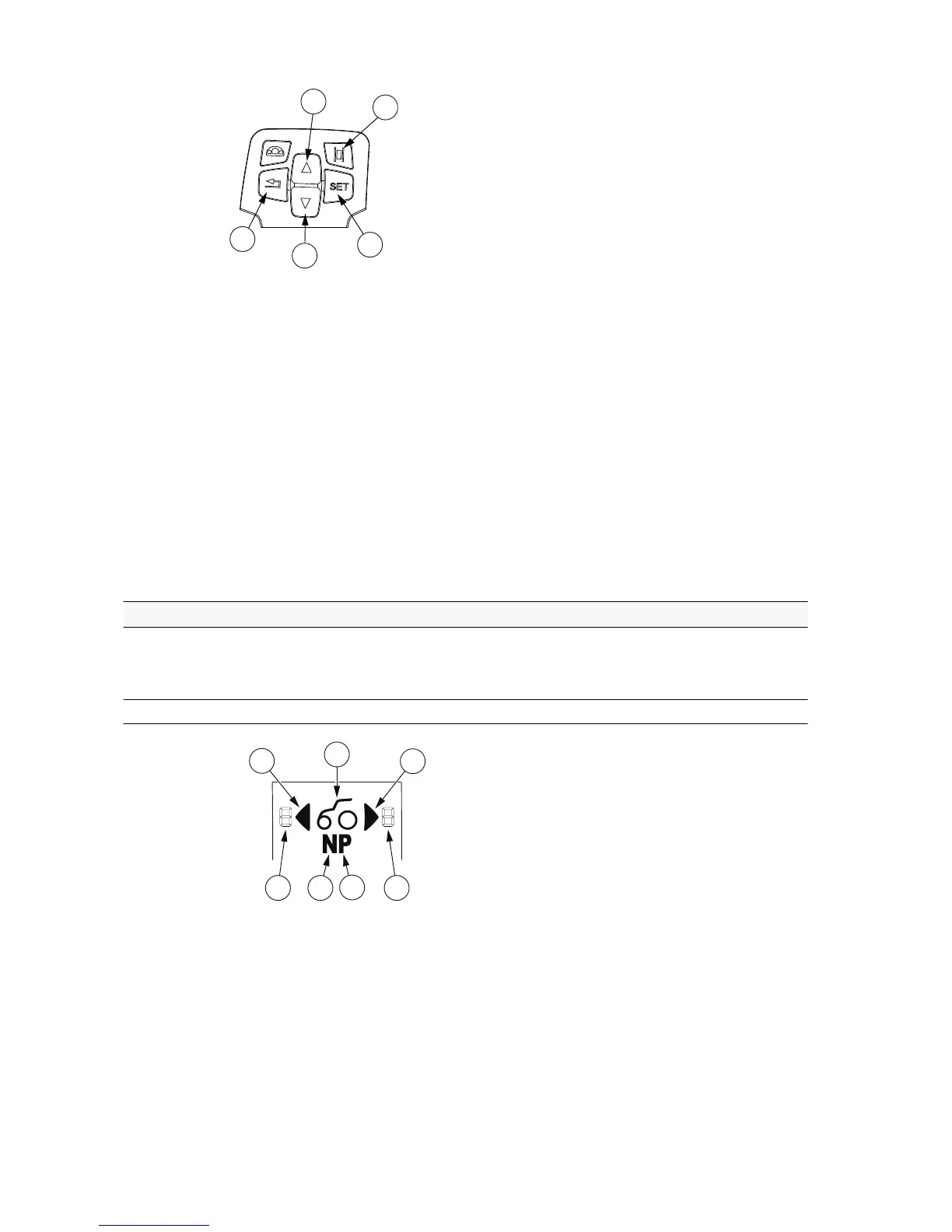

1. Arrow up
2. A-pillar display selection
3. Back
4. Arrow down
5. SET/selection
• You can change the control panel operation from the Proline instrument
panel to A-pillar with the A-pillar display selection button. By default, Proline
is active in the control panel.
• You can scroll between functions and views with the up and down arrow
buttons.
• You can confirm a selection in a setting view and move back to the menu
with the back button.
• You can perform settings and I/O tests with the SET/selection button.
3.11.2 Drive display
The drive display is divided into power shuttle section, transmission section and
general information section.
3.11.2.1 Power shuttle section
GUID-50D54B96-AF65-44AC-8EAB-9A66B04F08FE
1. Tractor symbol
2. Forward/reverse driving direction arrow
3. Preprogrammed Powershift gear symbol
4. Transmission neutral symbol
5. Parking brake symbol
Tractor symbol
The tractor symbol is shown continuously when the power is on.
