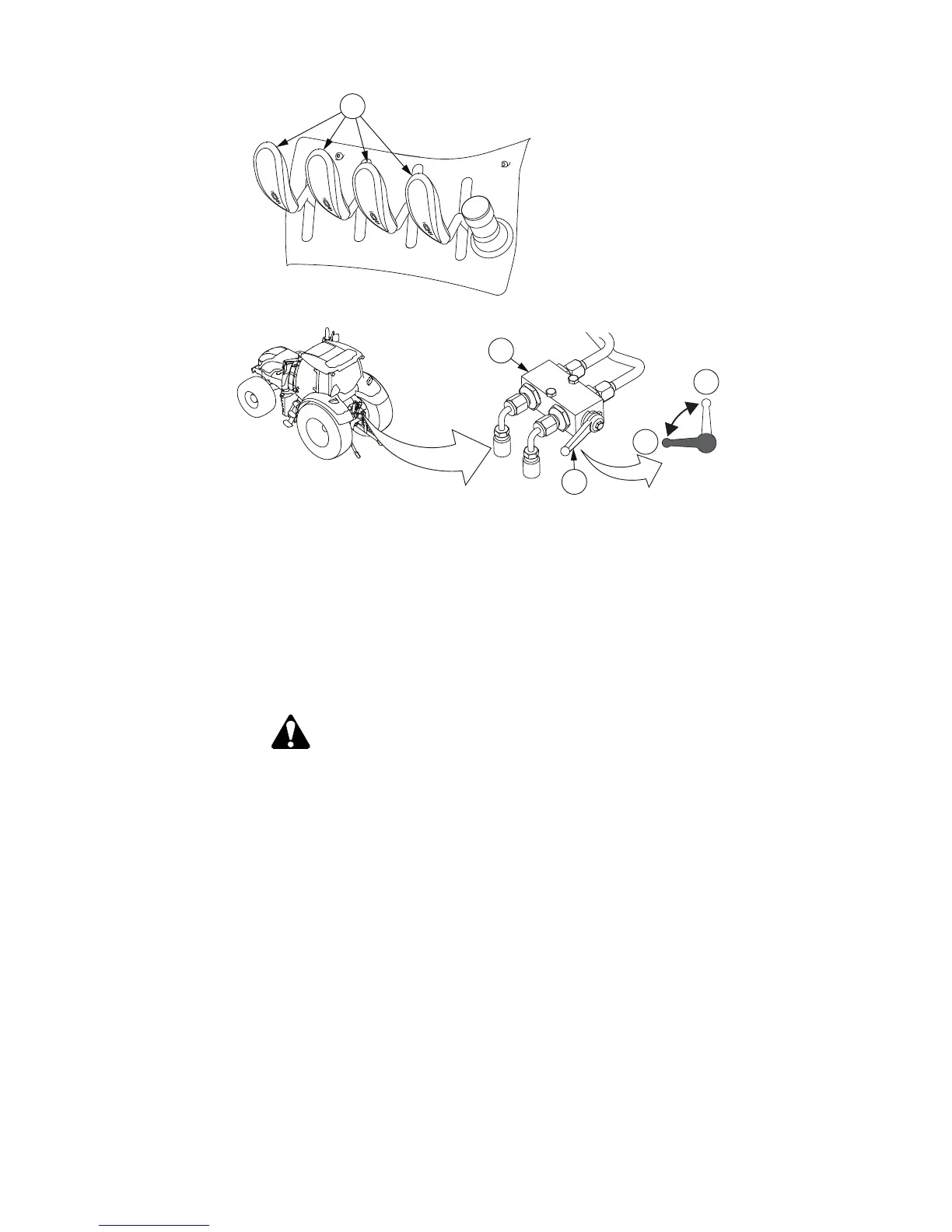

1. Control lever for auxiliary hydraulics rear valve
2. Shut-off valve
3. Shut-off valve lever
4. Lever in front linkage position
5. Lever in rear valve position
• Disconnect quick couplings from the rear valve to which the front linkage
shut-off valve is connected.
WARNING: When the front linkage is being connected to the rear
valve, make sure there is no load on the front linkage or rear
implement connected to the same valve. The load on the front
linkage or rear valve implement discharges when the shut-off
valve lever is turned. This may cause the implements to move
abruptly.
• Pull the front linkage shut-off valve to the horizontal position.
• Pull the control lever backward to move the front linkage up.
• Push the control lever forward to move the front linkage down.
3. Operation
- 198 -
