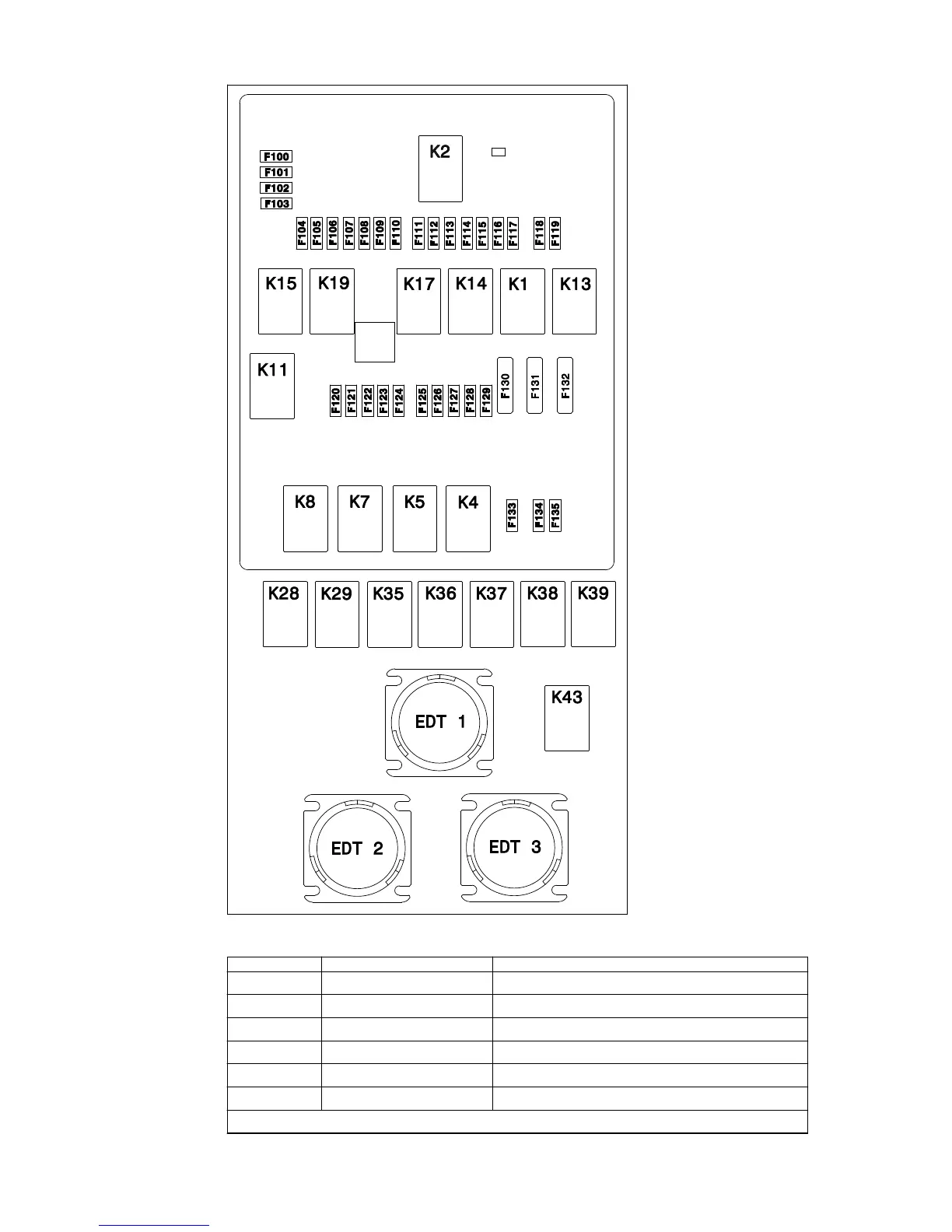

GUID-31B52C64-67B7-4990-AD33-94B8B1CB3613
Fuse
Nominal current
Description
F100
10A
Reserve
F101
10A
Parking lights right
F102
10A
Parking lights left
F103
15A
Windscreen wiper, light ensure
F104
15A
Seat heater
F105
10A
AutoComfort, TwinTrac, front axle suspension, SECU
Table continued on next page
