204 Heavy Duty Combination Brake Lathe
OPERATION (continued)

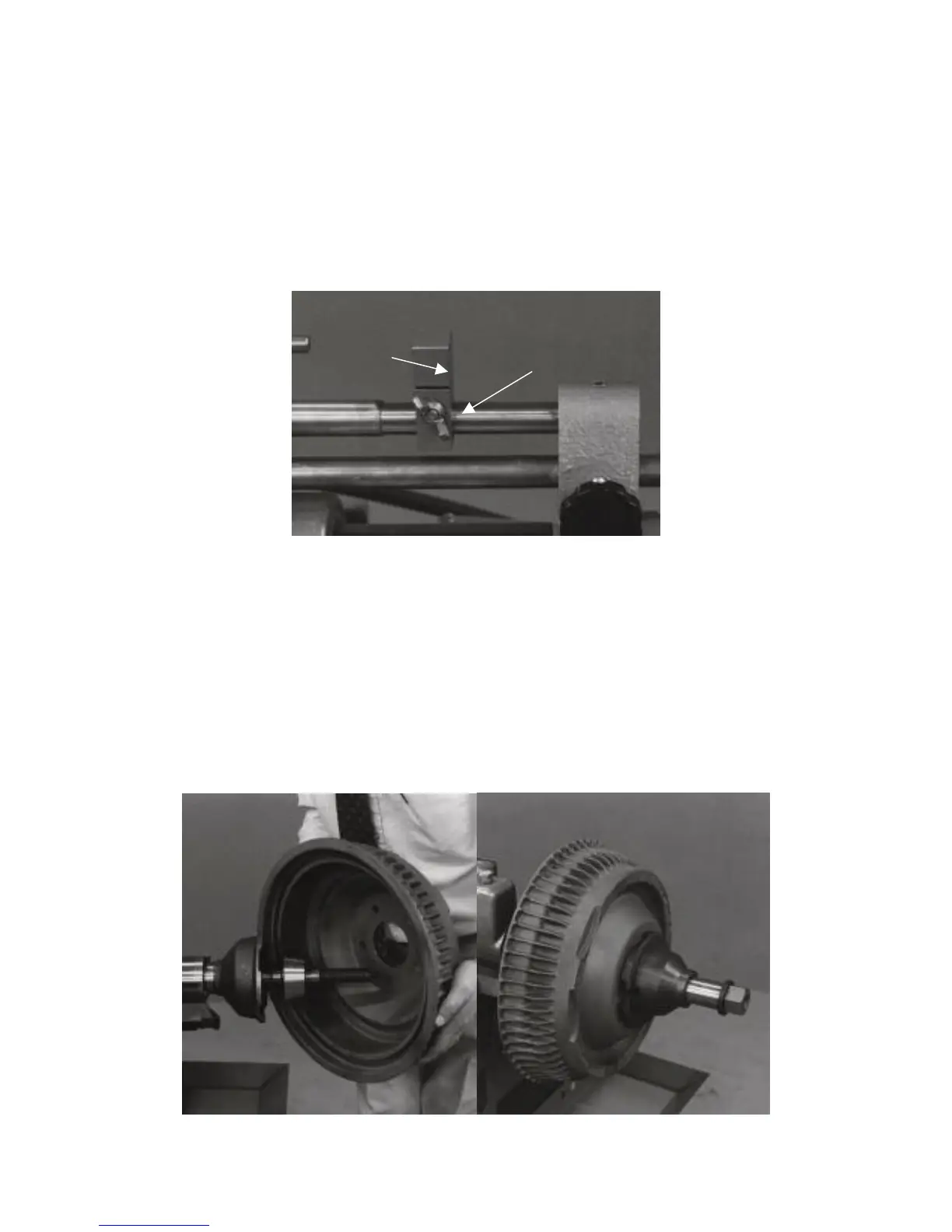

5. To disengage feed loosen wing nut (Figure 12A) and slide stop (Figure 12B) to
desired position.
6. Reset stop (Figure 12B) every time machine is used on a different width drum. If
properly set, the machine will disengage automatically when it reaches the stop.
B
A
Figure 12
7. Measure the diameter of the drum with a micrometer to determine that the drum will
be within maximum reboring limits after reconditioning. It should also be in good
general condition.
8. Set the spindle speed to match the drum size (Figure 4, Page 12). Move the V-belt
on the pulley to the correct groove.
9. Mount the drum on the arbor using the proper adapters, cones and spacers (Figure
13).
Figure 13
Van Norman 15. 888-855-1789
