MAINTENANCE Section 6 - Pg 05

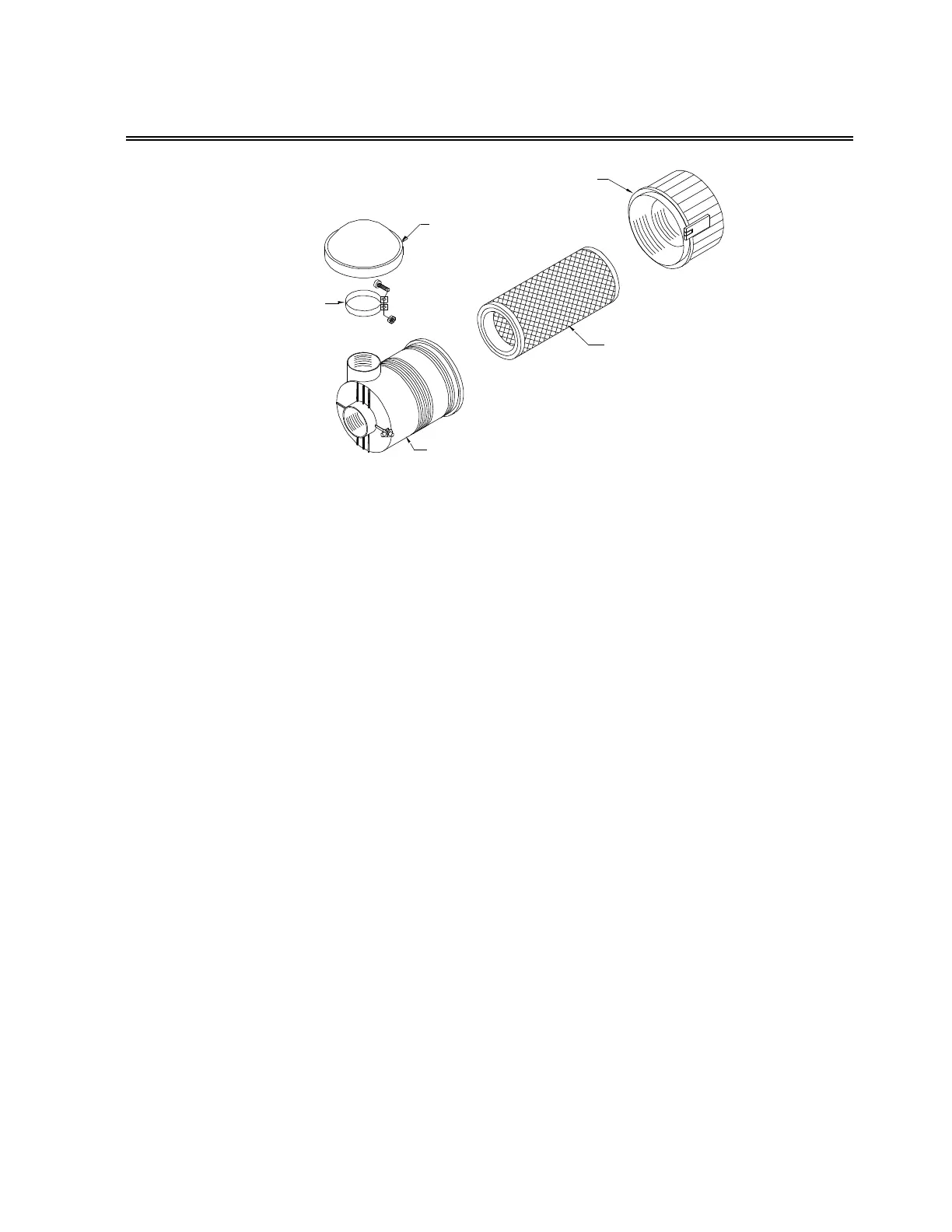

RAIN CAP
DUST CAP
ELEMENT
CLAMP
BODY
Figure 6-3: Compressor Air Filter (Replacement Element P/N 263931)
6.5.2.1 Air Filter Element Replacement
1. Loosen the clamp which secures the rain cap to the body and remove the cap.
2. Remove the rubber baffle from inside the dust cap and empty all dirt particles.
3. Unscrew the wingnut from the center post to loosen the element and remove.
4. Clean the body and dust cap with a clean damp cloth inside and out. DO NOT
BLOW DIRT OUT WITH COMPRESSED AIR!
5. At this time, clean or replace the element (Part No. 263931). Cleaning instructions
follow.
6. Install the element back into the body and replace the wingnut. Tighten securely.
7. Replace the rubber baffle into the dust cap and attach the cap to the body.
8. Re-tighten the clamp to secure the filter.
6.5.2.2 Air Filter Element Cleaning
The air filter element is cleanable by using compressed air. The maximum amount of
times that an element should be cleaned is six (6) times: however, the element should be
used no longer than a period of one (1) year without changing.
Prior to cleaning an element, check the element for damage. Damaged elements must be
replaced.
