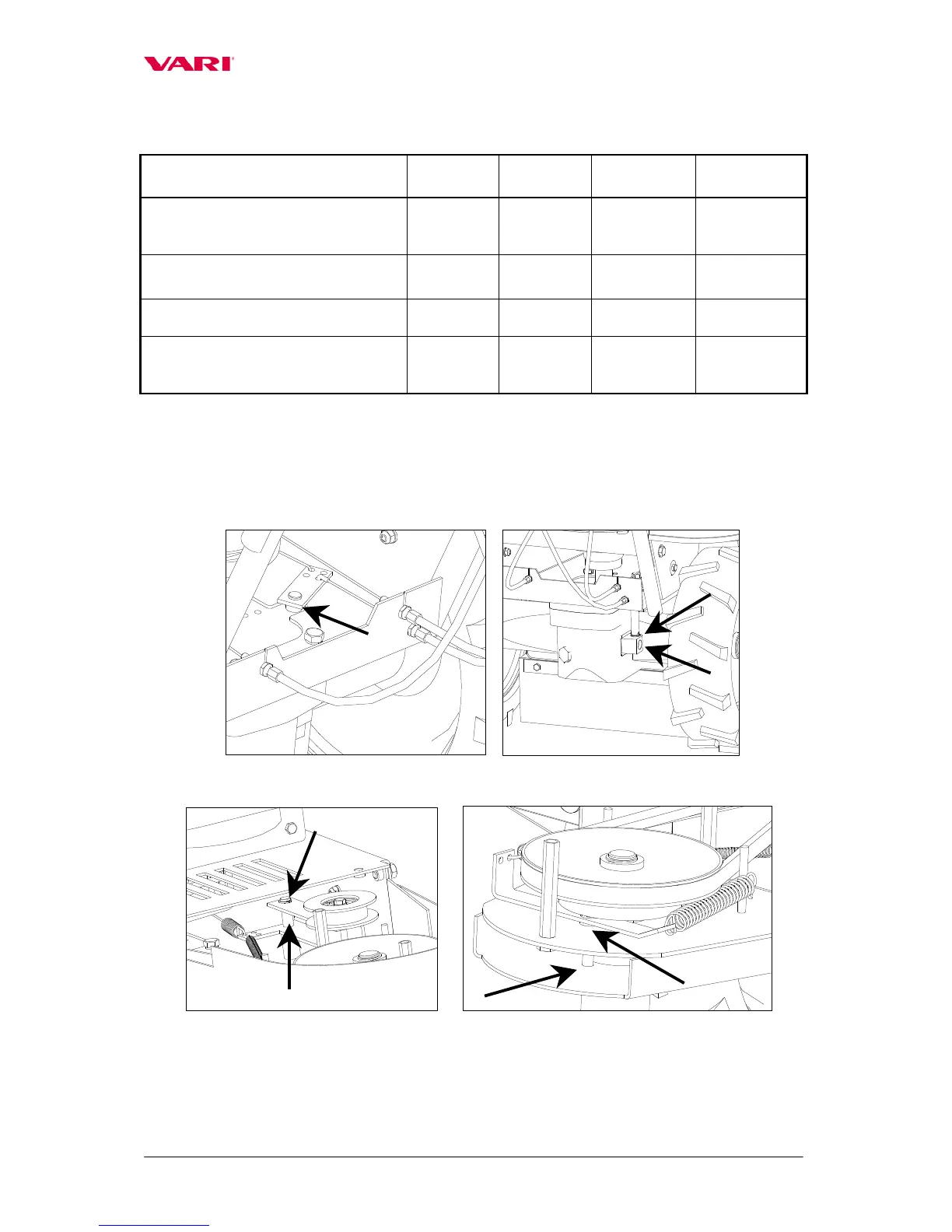

6.1.3 Table of machine lubrication.
Both swivel seatings of rotary lever in
the gearbox
min 1x
monthly
yes
silicone oil in
atomizer
5.1
Tightening pulley arm pin
(after disassembly of upper casing)
min 2x yes
grease,
engine oil
5.2
Brake lever seating near the front belt
pulley (accessible after disassembly of
upper casing)
min 2x yes
grease,
engine oil
5.3
Machine lubrication
During
season
After
season
Lubricant Figure no.
All cables
- on the input to Bowdens
- on the output from adjustment bolts
min 2x
min 2x
yes
yes
silicone oil in
atomizer
-
Figure 5.2: Tightening pulley arm pin
Figure 5.1: Rotary clutch lever
Figure 5.3: Brake lever seating
Figure 5: Lubrication points
