6 Instructions for use

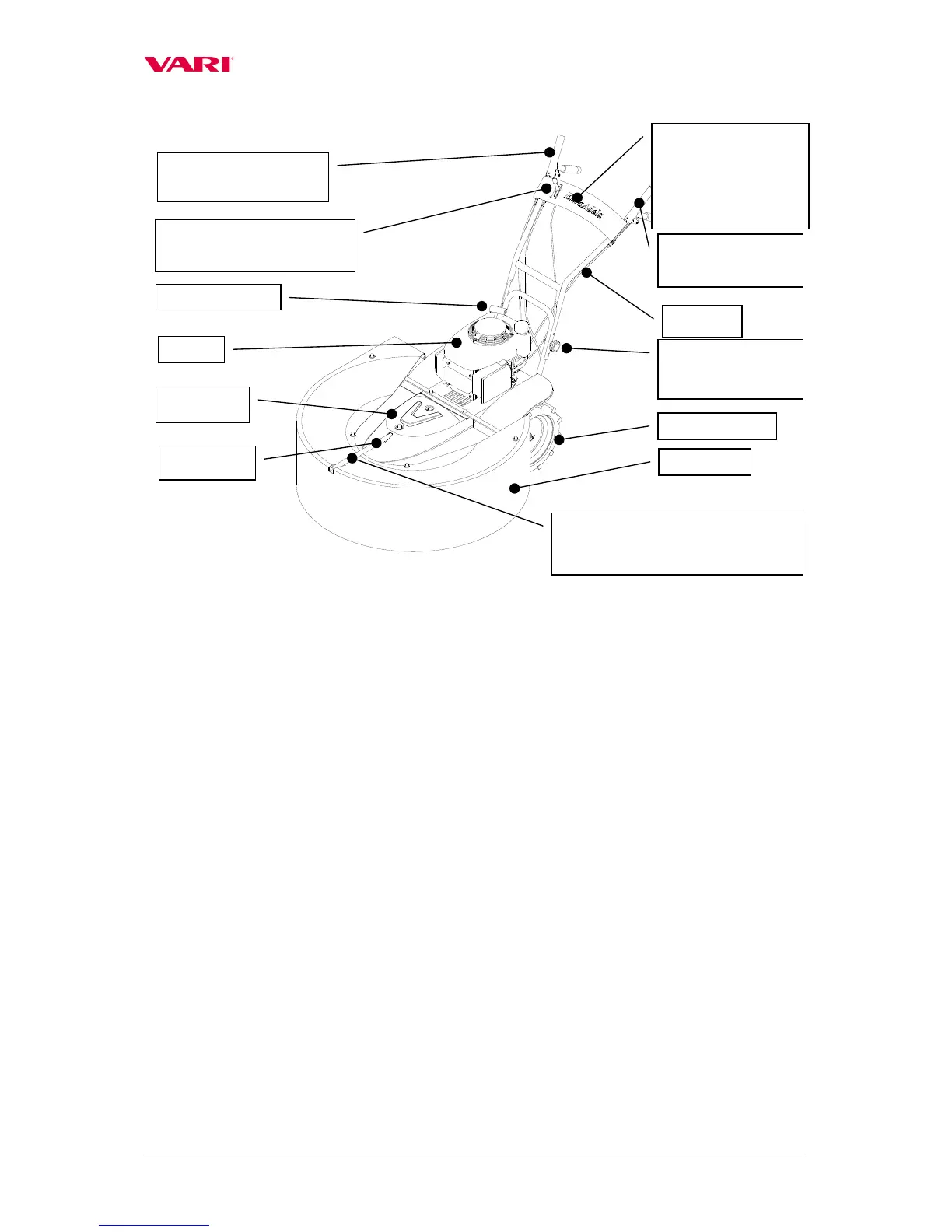

6.1 Machine assembly
Ask your dealer to provide machine unpackaging and briefing.
Grip points for unpackaging the machine from the box: Front – Mowing disk; Rear – the
„U“ tube of the machine frame.
Should you do the machine assembly yourself, please follow the below instructions:
Note: Washer size (e.g. Ø6.4mm) is always presented as the diameter of washer hole.
1. Take the machine out from the box and all parts from the packages.
2. Slip the front part of screen frame (1a) into the rear part of screen frame (1b) and connect
them by means of M6x16 bolts (2) with small flat washers Ø6.4mm (3).
3. Put the assembled screen frame on a flat surface (table, floot, etc.) and slip the screen (4)
onto the longitudinal beam on the front part of screen frame with its back side out. Bolt
the screen (4) to the assembled apron frame by means of two bolts M6x16 (2) with
washers Ø6.6mm (5) and self-locking nuts M6 (6) with small flat washers Ø6.4mm (3).
Provide the bolt heads with plastic caps (7). Then sling the screen sides over the screen
frame so that they are in the position illustrated in Fig. 2a.
4. Turn the handlebars (8)so that the handrails point to the rear of the machine. Attach the
handlebars (8) onto the frame tubes at a required height by means of bolts with squares
(9), small flat washers Ø8.4mm (10) and plastic rosebits with internal tread (11). Fix the
Bowdens to the tubes of handlebars by means of two plastic tightening tapes.
