BDR-595 E EuroAdela
14
Note: all four main positions of accelerator lever are locked by means of a simple hollow-lug
system in the lever body.
Mowing disk drive clutch
lever and brake lever
Machine travel
clutch lever
Accelerator lever
(engine speed
adjustment)
Bowden cable of
machine travel
Mowing disk brake
Bowden cable
Bowden cable of
tightening pulley of
the mowing disk
drive V-belt
Right
handrail
Left handrail
STOP position of accelerator lever –
Engine not running
MIN
(turtle) position of accelerator
lever – Engine running idle
MAX (hare) position of accele
rator lever
– Engine running at maximum speed
CHOKE
position of accelerator lever (for cold
engine start only) – Engine running on choke

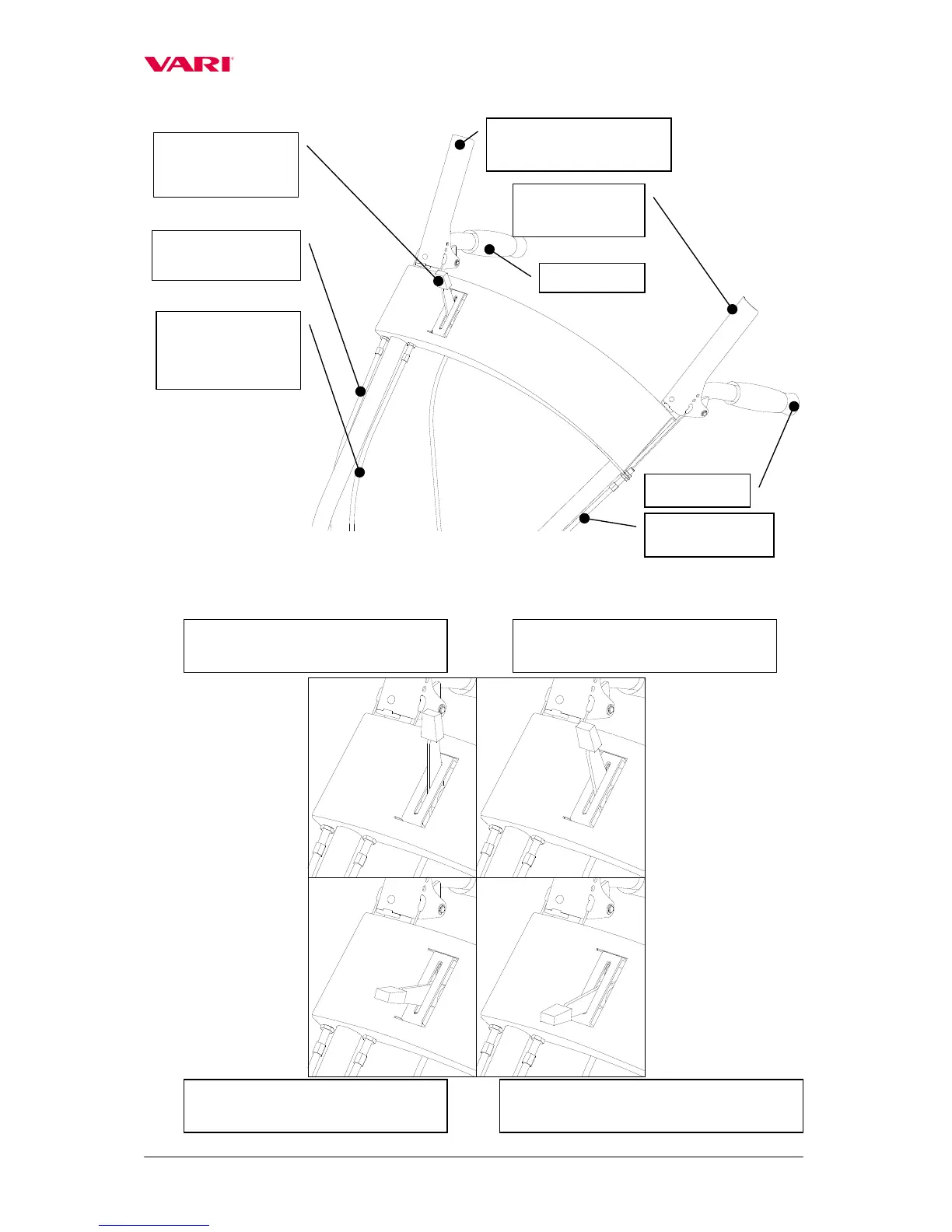

Figure 3: Handlebars and accelerator lever
